Water Pump Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump bolts.
  2. Remove the water pump and gaskets.
  3. Discard the water pump gaskets.

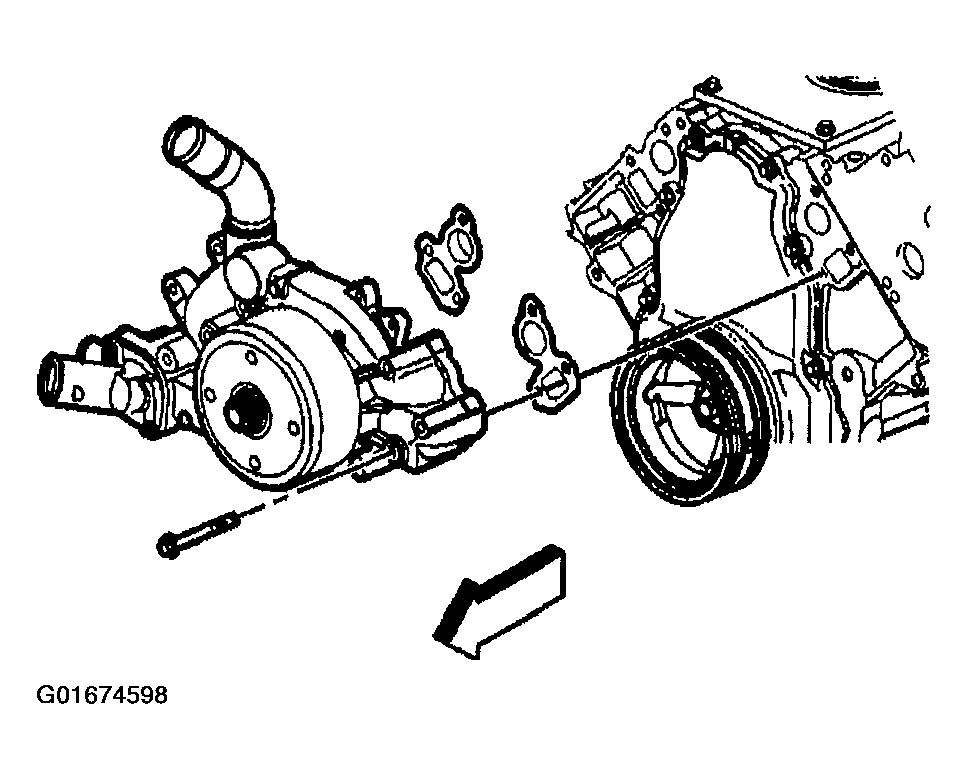

    Fig 1: Water Pump & Gaskets
    G01674598Courtesy of GENERAL MOTORS CORP.
