Valve Lifter Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: When reusing valve lifters, install the lifters to their original locations.

If camshaft replacement is required, the valve lifters must also be replaced.

Lubricate the valve lifters and engine block valve lifter bores with clean engine oil.
Insert the valve lifters into the lifter guides.
Align the flat area on the top of the lifter with the flat area in the lifter guide bore. Push the lifter completely into the guide bore.

Fig 1: Valve Lifters & Guides
Courtesy of GENERAL MOTORS CORP.
Install the valve lifters and guide assembly to the engine block.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the valve lifter guide bolt (1).
Tighten

Tighten the valve lifter guide bolt to 12 N.m (106 lb in).

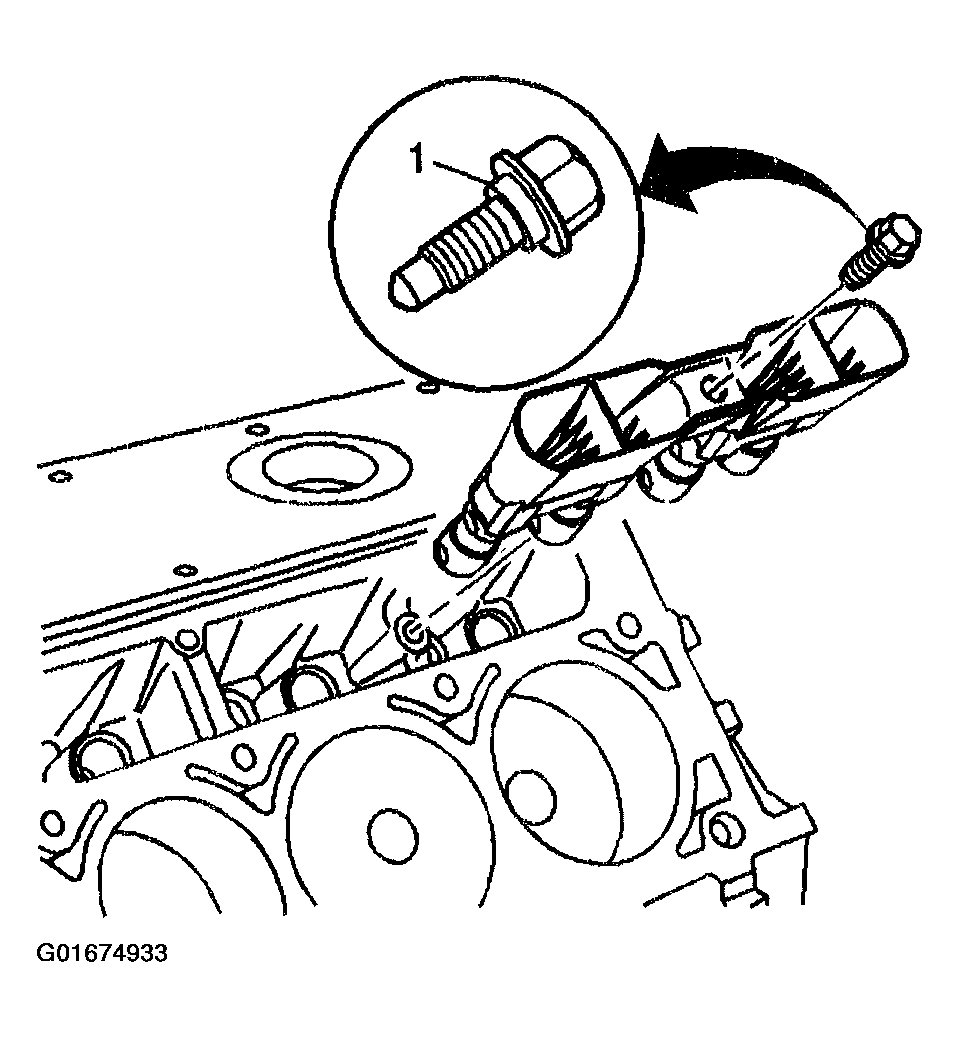

Fig 2: Valve Lifter Guide & Bolts
Courtesy of GENERAL MOTORS CORP.
