Throttle Body Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The intake manifold, throttle body, fuel injection rail, and fuel injectors may be removed as an assembly. If not servicing the individual components, remove the manifold as a complete assembly.
  1. Remove the electrical wire harness connectors from the throttle body.
  2. Remove the engine coolant air bleed hose and clamp.
  3. Remove the throttle body nuts.
  4. Remove the throttle body.

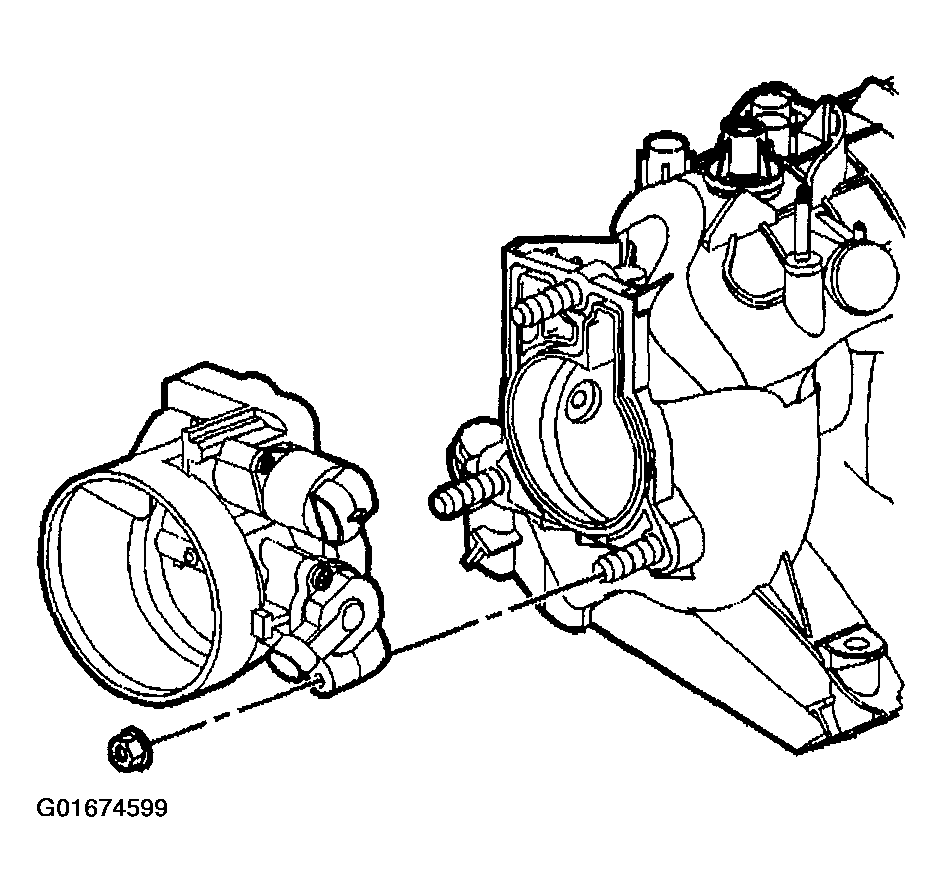

    Fig 1: Throttle Body & Nuts
    G01674599Courtesy of GENERAL MOTORS CORP.
  5. Remove the throttle body gasket (1).
  6. Discard the gasket.
  7. Remove the throttle body studs, if required.

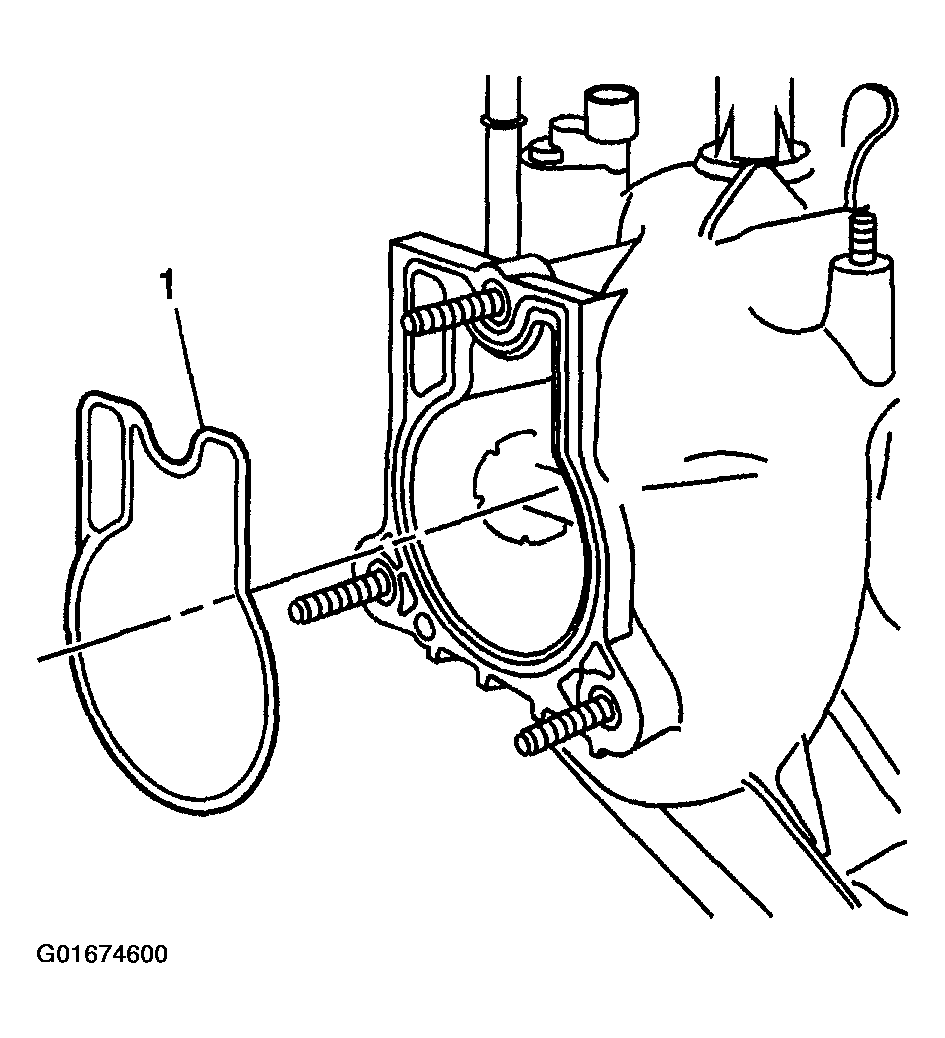

    Fig 2: Throttle Body Gasket
    G01674600Courtesy of GENERAL MOTORS CORP.
