Full Floating Piston Pin

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using piston ring pliers, remove the piston rings from the piston.

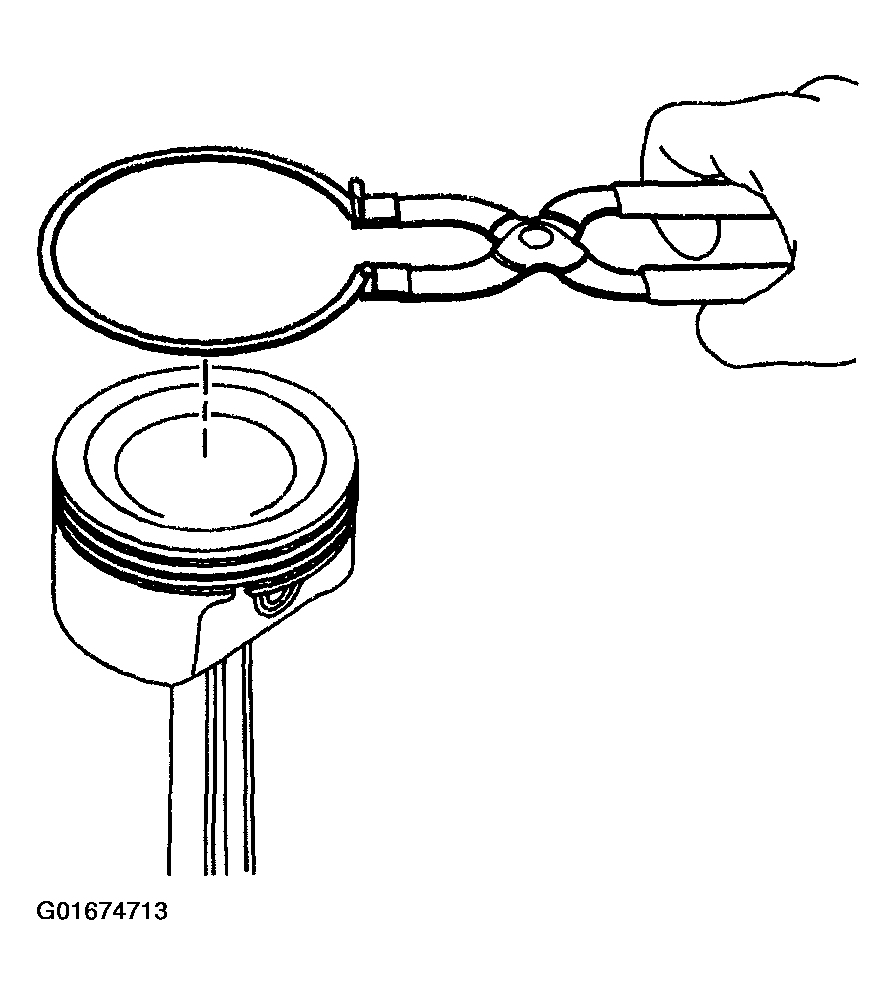

    Fig 1: Removing Piston Rings
    G01674713Courtesy of GENERAL MOTORS CORP.
  2. Remove the piston pin retaining clips.
  3. Remove the pin from the piston and connecting rod.
  4. The piston and pin are a matched set and are not to be serviced separately. Mark, sort, or organize the piston and the matching piston pin. Refer to Separating Parts .
    Fig 2: Piston, Pin & Connecting Rod
    G01674714Courtesy of GENERAL MOTORS CORP.
