Oil Pan Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:

The alignment of the structural oil pan is critical. The rear bolt hole locations of the oil pan provide mounting points for the transmission housing. To ensure the rigidity of the powertrain and correct transmission alignment, it is important that the rear of the block and the rear of the oil pan are flush or even. The rear of the oil pan must NEVER protrude beyond the engine block and transmission housing plane.
Do not reuse the oil pan gasket.
It is not necessary to rivet the NEW gasket to the oil pan.
It is not necessary to remove the oil level sensor prior to oil pan installation.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

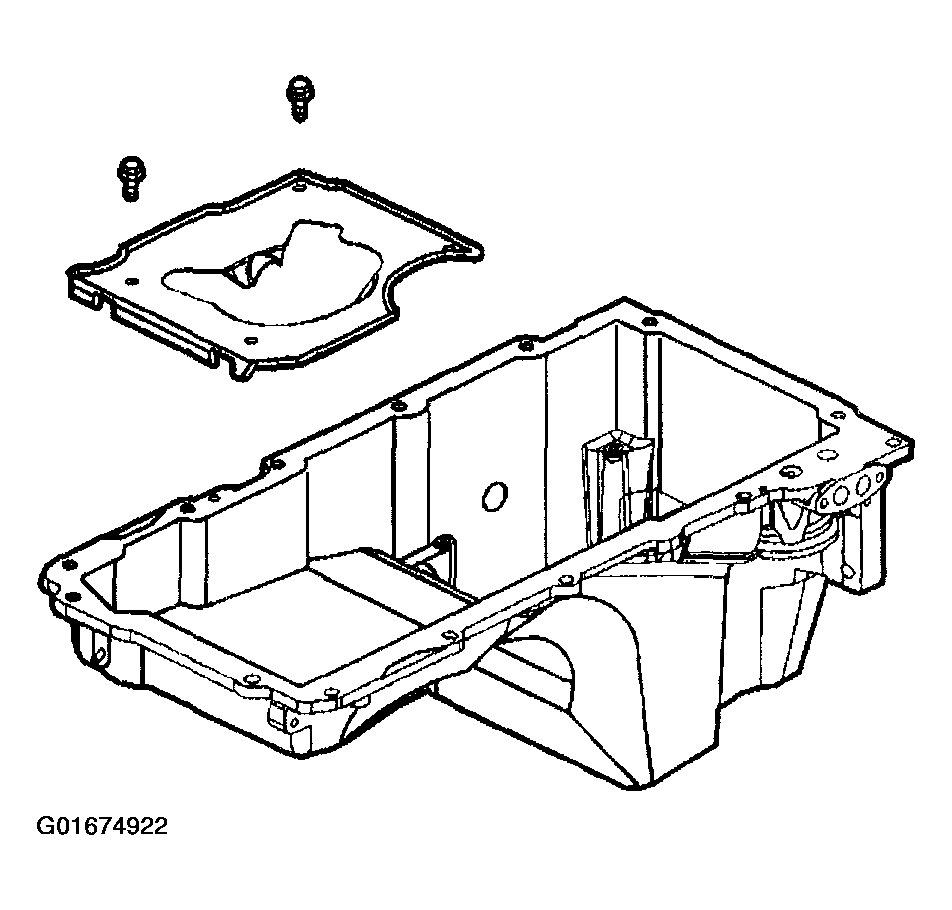

Fig 1: Oil Pan Baffle & Bolts
Courtesy of GENERAL MOTORS CORP.

Install the oil pan baffle and bolts, if previously removed.
Tighten

Tighten the oil pan baffle bolts to 12 N.m (106 lb in).
Apply a 5 mm (0.2 in) bead of sealant GM P/N United States 12378190, or equivalent, 20 mm (0.8 in) long to the engine block. Apply the sealant directly onto the tabs of the front cover gasket that protrude into the oil pan surface. Refer to Sealers, Adhesives, and Lubricants .

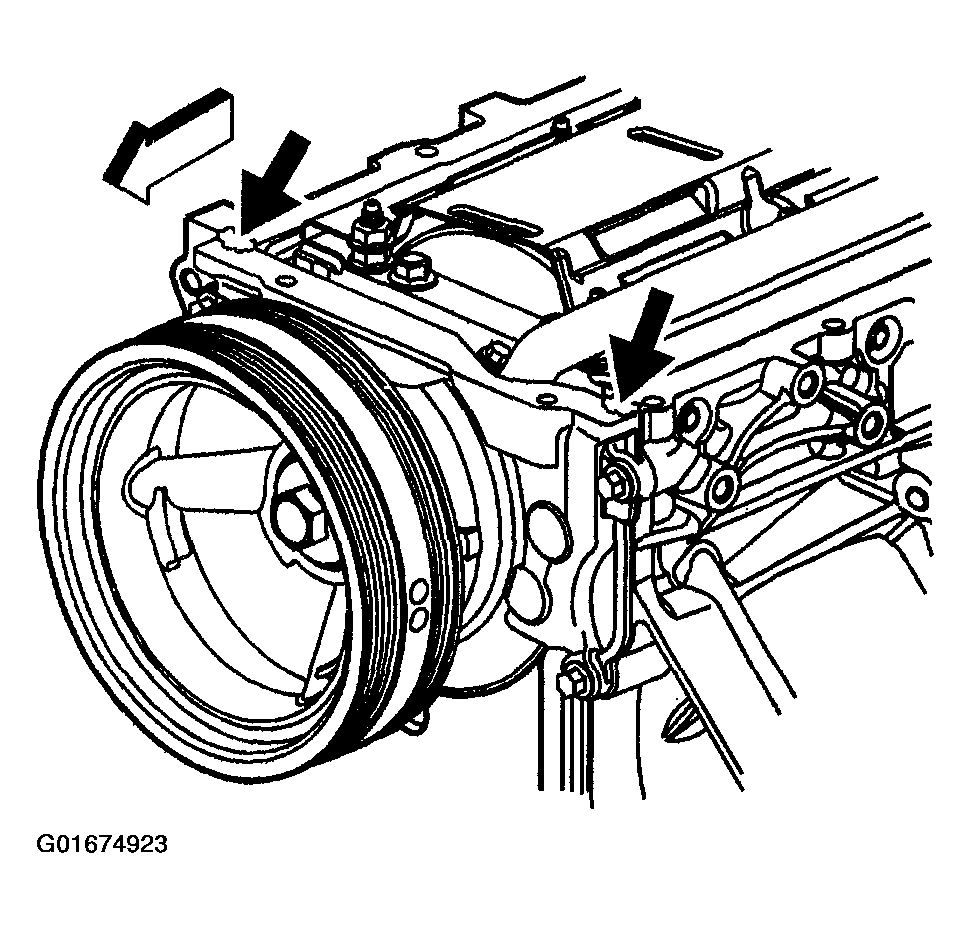

Fig 2: Applying Sealant To Engine Block Front Cover Gasket Tabs
Courtesy of GENERAL MOTORS CORP.
Apply a 5 mm (0.2 in) bead of sealant GM P/N United States 12378190, or equivalent, 20 mm (0.8 in) long to the engine block. Apply the sealant directly onto the tabs of the rear cover gasket that protrude into the oil pan surface.

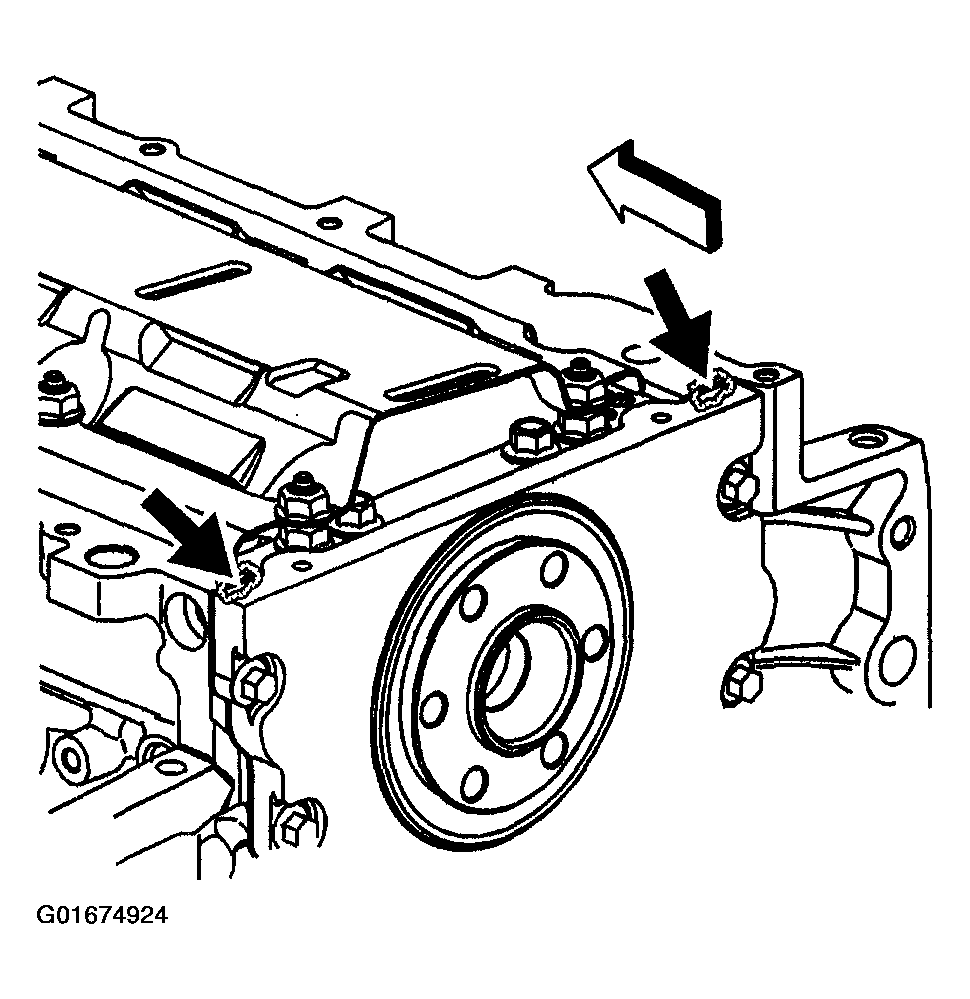

Fig 3: Applying Sealant To Engine Block Rear Cover Gasket Tabs
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Be sure to align the oil gallery passages in the oil pan and engine block properly with the oil pan gasket.
Pre-assemble the oil pan gasket to the pan.
1. 4.1. Install the gasket onto the oil pan.
2. 4.2. Install the oil pan bolts to the pan and through the gasket.
Install the oil pan, gasket and bolts to the engine block.
Tighten bolts finger tight. Do not overtighten.
Place a straight edge across the rear of the engine block and the rear of the oil pan at the transmission housing mounting surfaces.

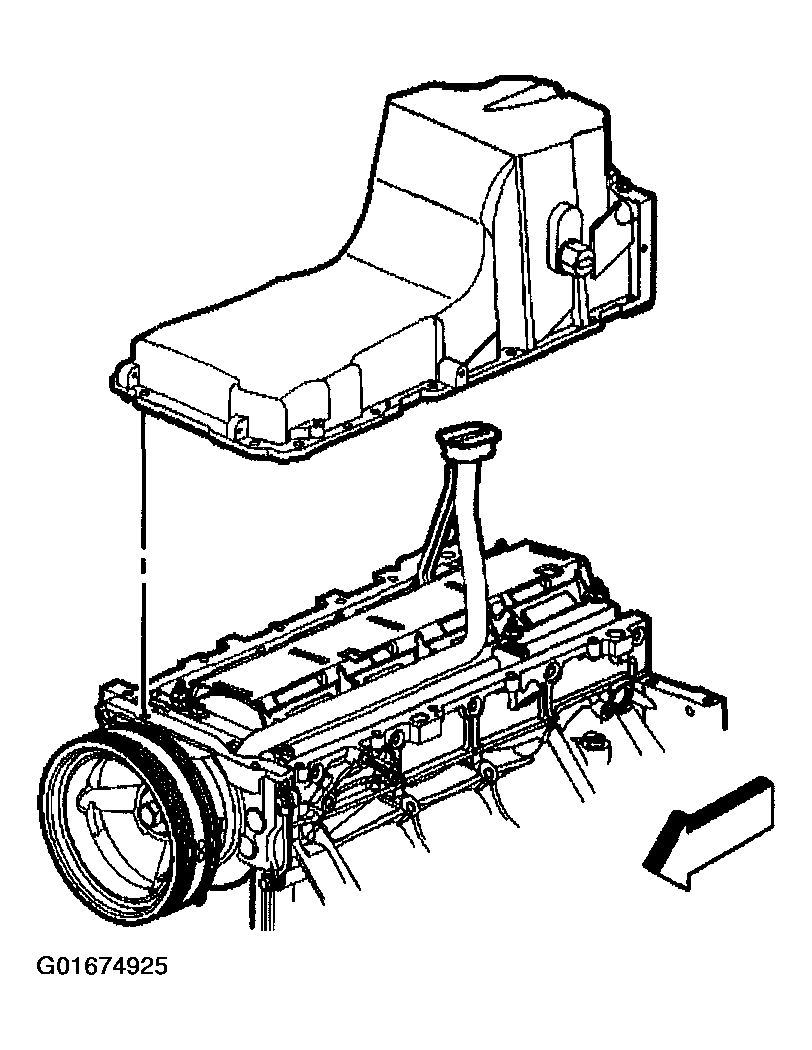

Fig 4: Oil Pan
Courtesy of GENERAL MOTORS CORP.
Align the oil pan until the rear of engine block and rear of oil pan are flush or even.
Tighten
1. 8.1. Tighten the oil pan-to-block and oil pan-to-front cover bolts to 25 N.m (18 lb ft).
2. 8.2. Tighten the oil pan-to-rear cover bolts to 12 N.m (106 lb in).
Measure the oil pan-to-engine block alignment.
1. 9.1. Place a straight edge across the rear of the engine block and rear of oil pan at the transmission housing mounting surfaces.
  IMPORTANT: The rear of the oil pan must NEVER protrude beyond the engine block and transmission housing mounting surfaces.
2. 9.2. Insert a feeler gage between the straight edge and the oil pan transmission housing mounting surface and check to make sure that there is no more than a 0.25 mm (0.01 in) gap between the pan and straight edge.
3. 9.3. If the oil pan alignment is not within specifications, remove the oil pan and repeat the above procedure.

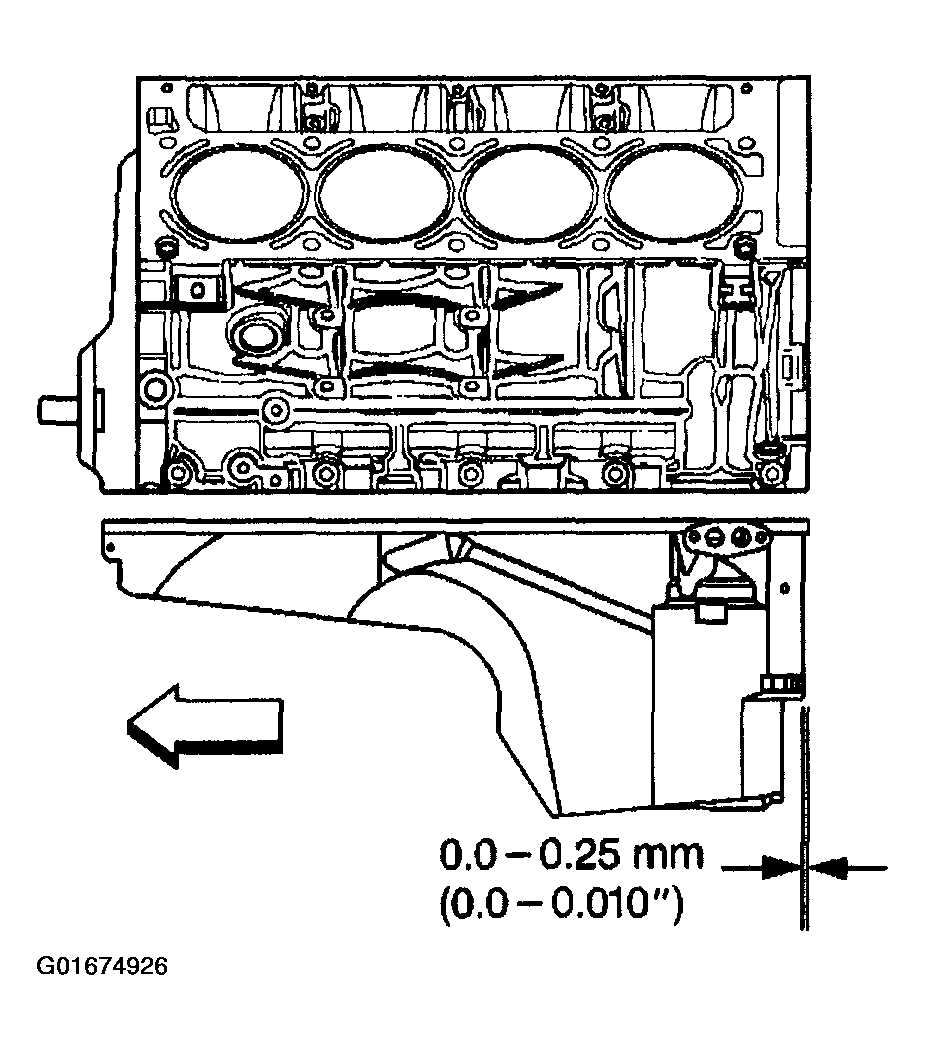

Fig 5: Oil Pan Alignment
Courtesy of GENERAL MOTORS CORP.
Install the oil level sensor.
Tighten

Tighten the oil level sensor to 13 N.m (115 lb in).

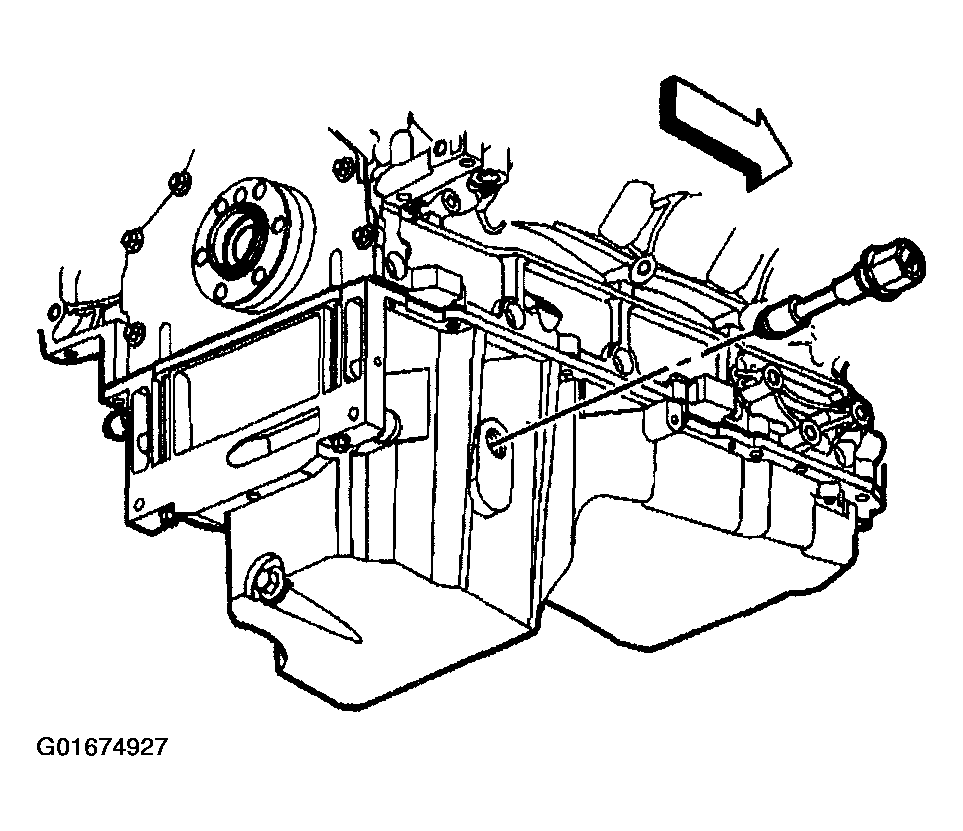

Fig 6: Oil Level Sensor
Courtesy of GENERAL MOTORS CORP.
