Oil Level Indicator and Tube Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the O-ring seal for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be reused.
  2. Lubricate the O-ring seal with clean engine oil.
  3. Install the O-ring seal onto the oil level indicator tube.
  4. Install the oil level indicator tube into the engine block and rotate into proper position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  6. Install the oil level indicator into the tube.

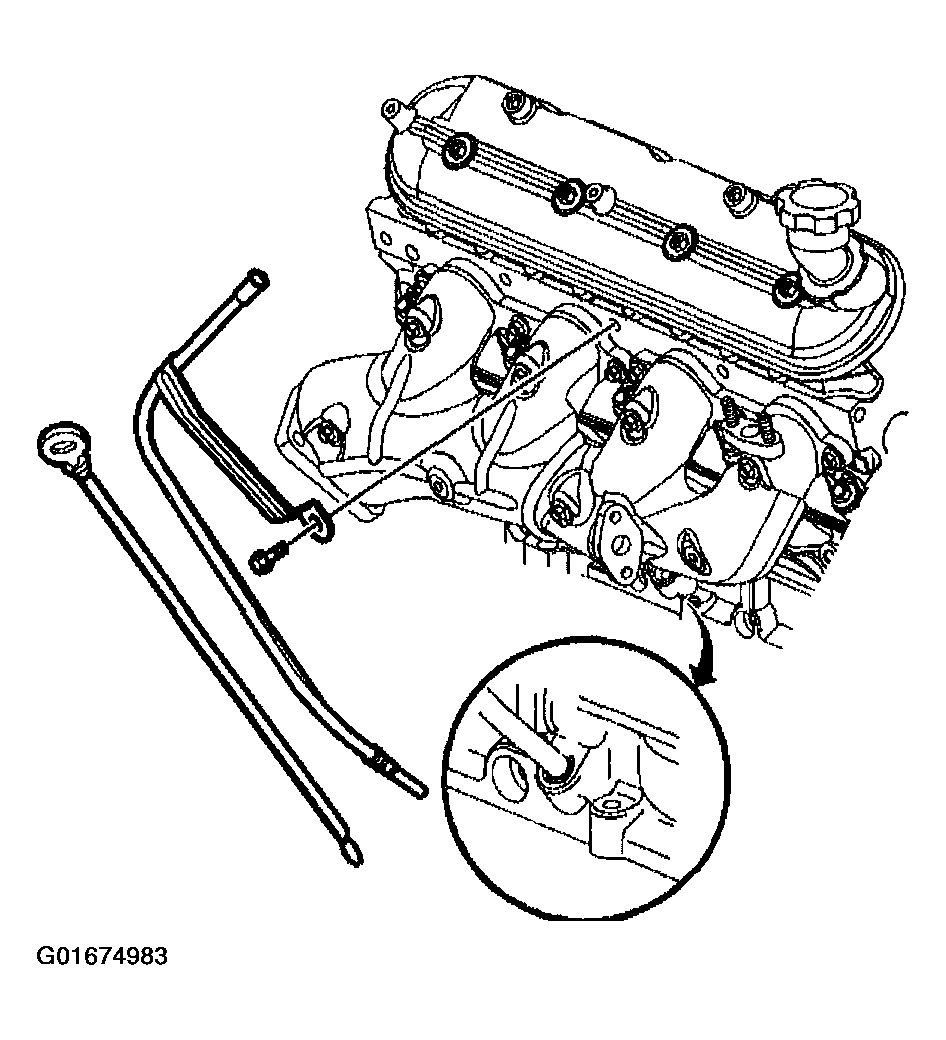

    Fig 1: Oil Level Indicator & Tube
    G01674983Courtesy of GENERAL MOTORS CORP.
