Engine Valley Cover Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knock sensor wire harness.

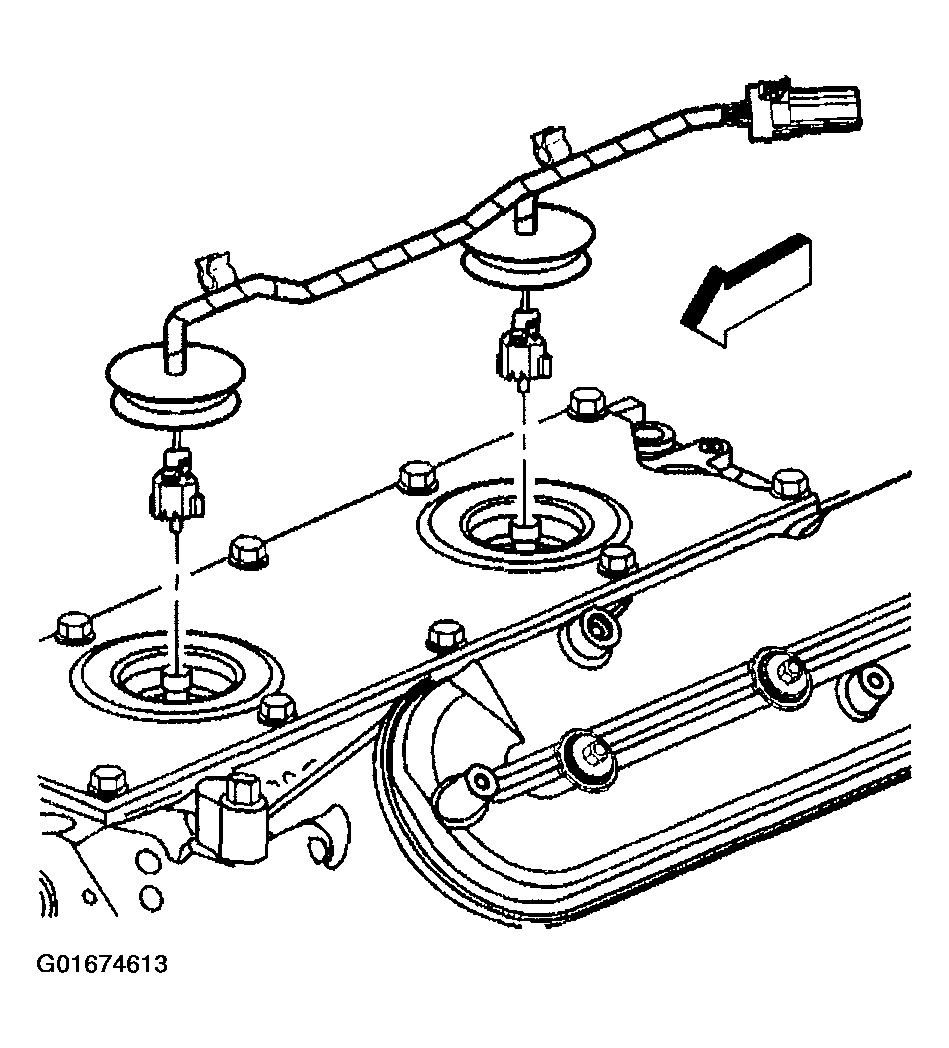

    Fig 1: Knock Sensor Wire Harness
    G01674613Courtesy of GENERAL MOTORS CORP.
  2. Remove the knock sensors.

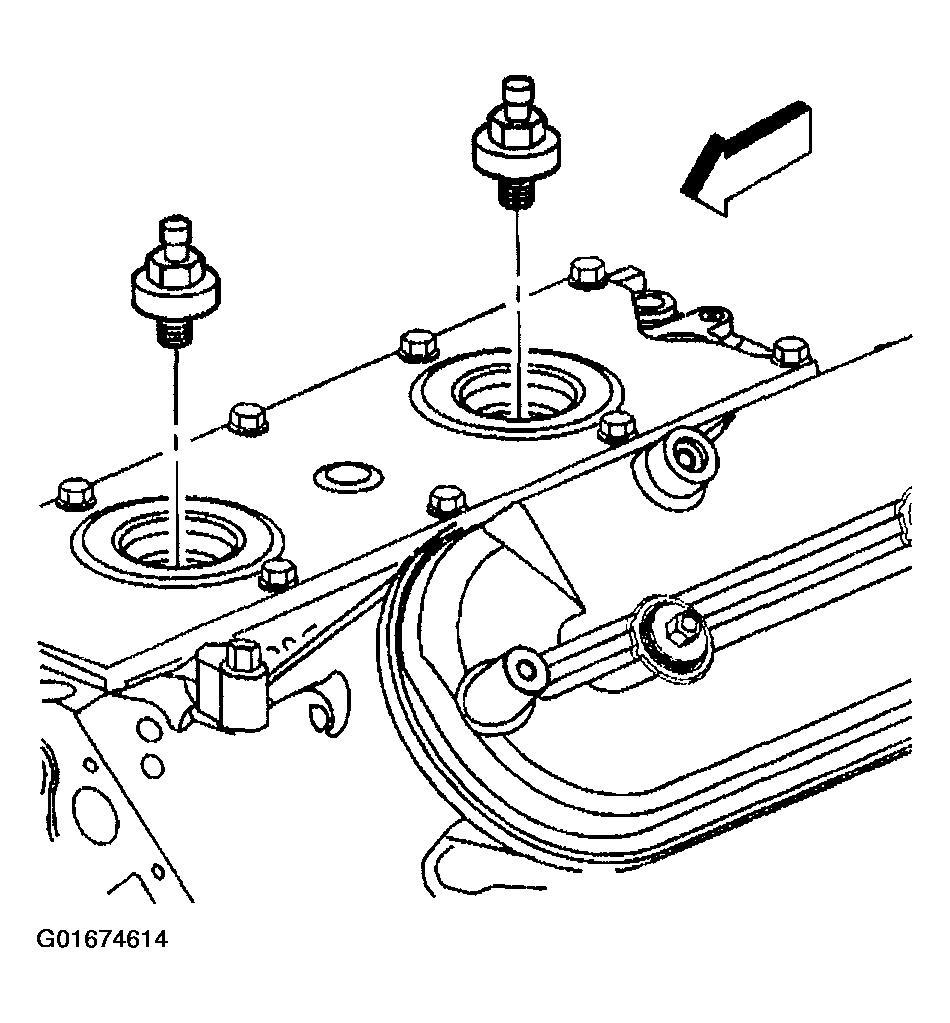

    Fig 2: Knock Sensors
    G01674614Courtesy of GENERAL MOTORS CORP.
  3. Remove the valley cover bolts.
  4. Remove the valley cover and gasket.
  5. Discard the valley cover gasket.

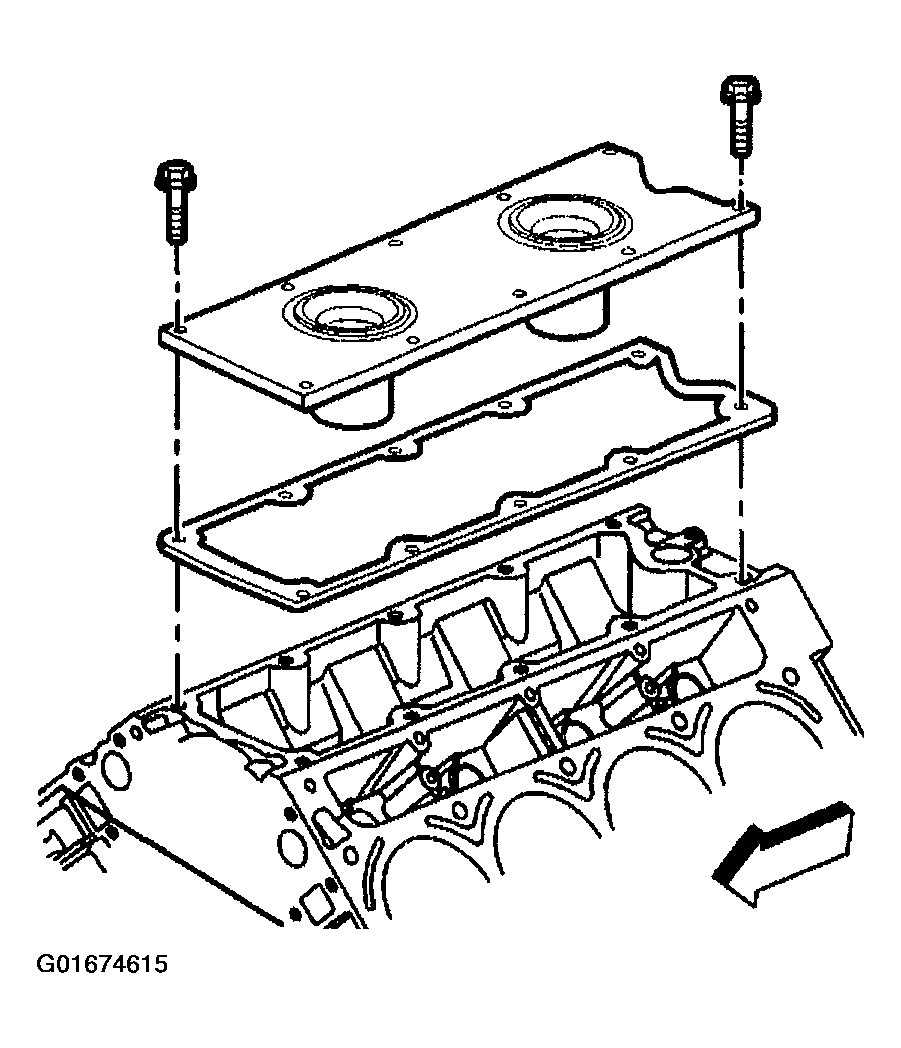

    Fig 3: Valley Cover, Gasket & Bolts
    G01674615Courtesy of GENERAL MOTORS CORP.
  6. Remove the knock sensor oil seals (1) from the cover (2).
    Fig 4: Knock Sensor Oil Seals & Cover
    G01674616Courtesy of GENERAL MOTORS CORP.
