Cleaning Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Use care when handling the crankshaft. Avoid damage to the bearing surfaces or the lobes of the crankshaft position reluctor ring. Damage to the teeth of the crankshaft position reluctor ring may effect On-Board Diagnostics (OBD) II system performance.
  1. Clean the crankshaft with solvent.
  2. Thoroughly clean all oil passages and inspect for restrictions or burrs.
    CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  3. Dry the crankshaft with compressed air.

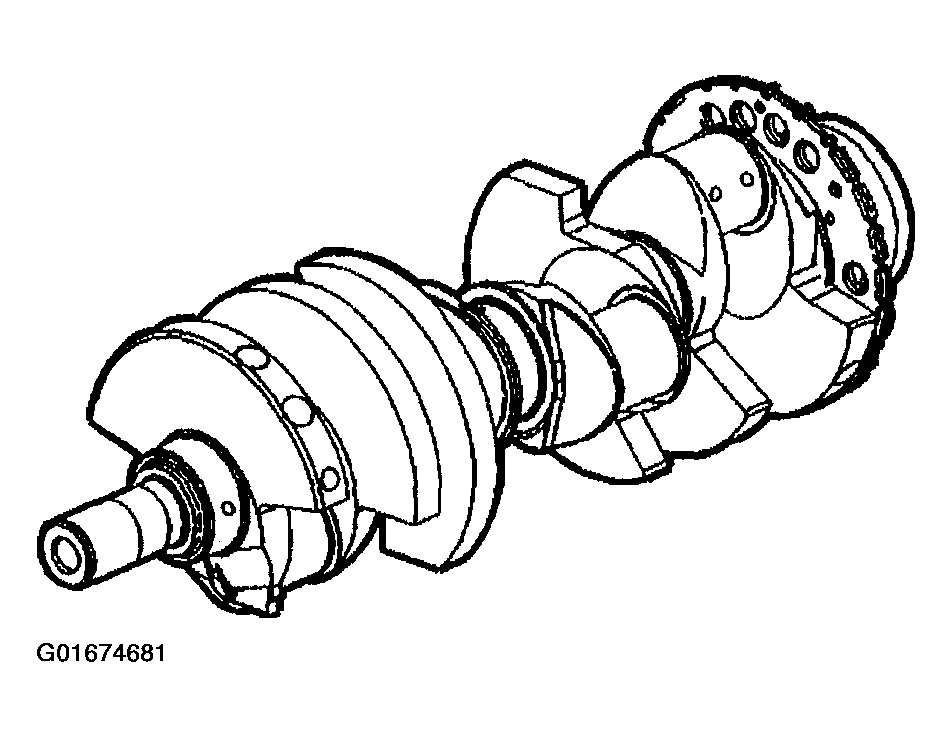

    Fig 1: Crankshaft Removed
    G01674681Courtesy of GENERAL MOTORS CORP.
