Crankshaft Rear Oil Seal Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
J 41479 Crankshaft Rear Oil Seal Installer
IMPORTANT:
- The flywheel spacer (if applicable) must be removed prior to oil seal installation.
- Do not lubricate the oil seal inside diameter (ID) or the crankshaft surface.
- Do not reuse the crankshaft rear oil seal.

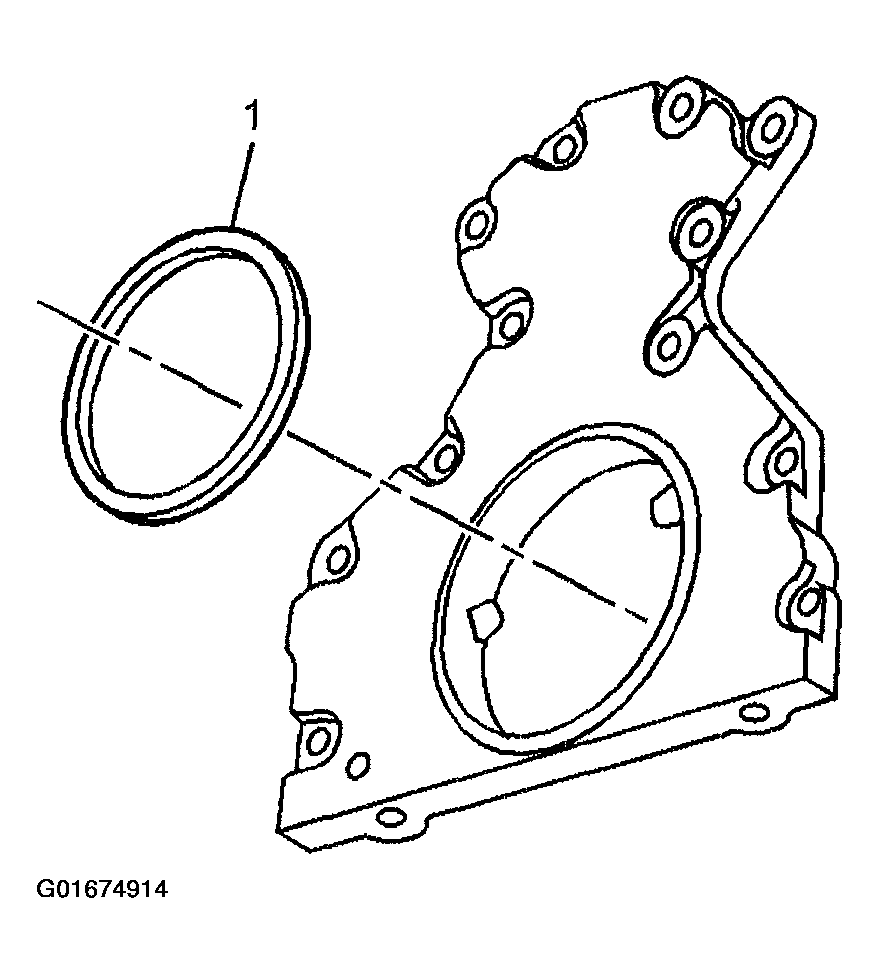

- Lubricate the outside diameter (OD) of the oil seal (1) with clean engine oil.
DO NOT allow oil or other lubricants to contact the seal surface.
- Lubricate the rear cover oil seal bore with clean engine oil.
DO NOT allow oil or other lubricants to contact the crankshaft surface.
- Install the J 41479 cone (2) and bolts onto the rear of the crankshaft.
- Tighten the bolts until snug. Do not overtighten.
- Install the rear oil seal onto the tapered cone (2) and push the seal to the rear cover bore.
- Thread the J 41479 threaded rod into the tapered cone until the tool (1) contacts the oil seal.
- Align the oil seal onto the tool (1).
- Rotate the handle of the tool (1) clockwise until the seal enters the rear cover and bottoms into the cover bore.
- Remove the tool.
