Camshaft and Bearings Cleaning and Inspection: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

Tools Required

J 7872 Magnetic Base Dial Indicator Set
J 8520 Camshaft Lobe Lift Indicator

Clean the components in solvent.
Dry the components with compressed air.
Inspect the camshaft bearing journals (1) for scoring or excessive wear.
Inspect the camshaft valve lifter lobes (2) for scoring or excessive wear.
Inspect the threaded bolt holes (3) in the front of the camshaft for damaged threads or debris.
Inspect the camshaft sprocket pin (4) for damage.
Inspect the camshaft position reluctor ring for nicks or damage.

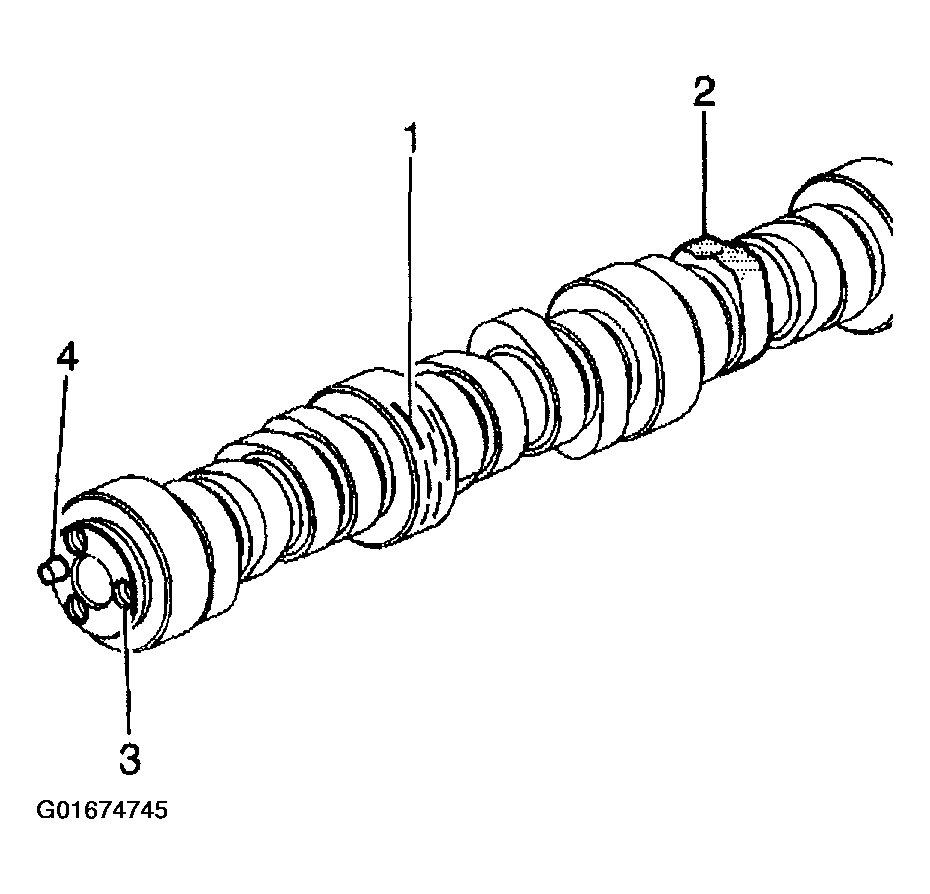

Fig 1: Camshaft Inspection Areas
Courtesy of GENERAL MOTORS CORP.
Inspect the camshaft retainer plate for wear or a damaged sealing gasket.
If the camshaft retainer plate sealing gasket is not cut or damaged, it may be reused.

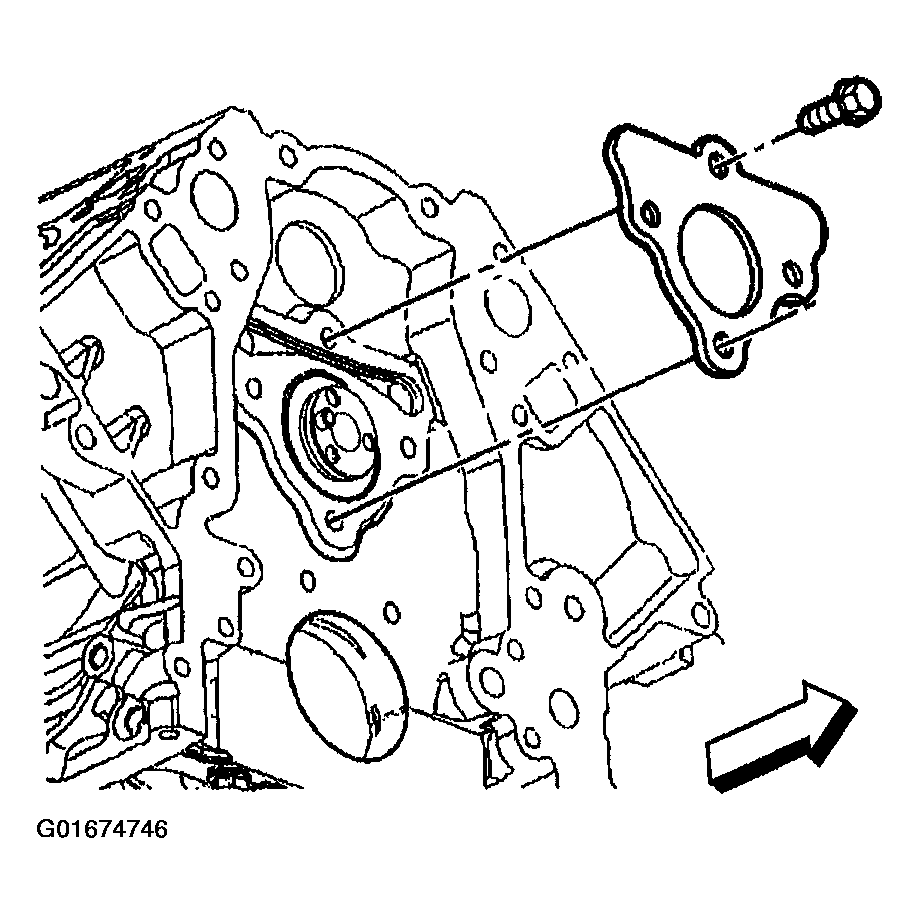

Fig 2: Camshaft Retainer Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
Inspect the camshaft bearings for proper fit in the engine block. Camshaft bearings have an interference fit to the engine block and should not be loose in their engine block bearing bores.
Inspect the camshaft bearings for excessive wear or scoring.
Bearings with excessive scoring or wear must be replaced.

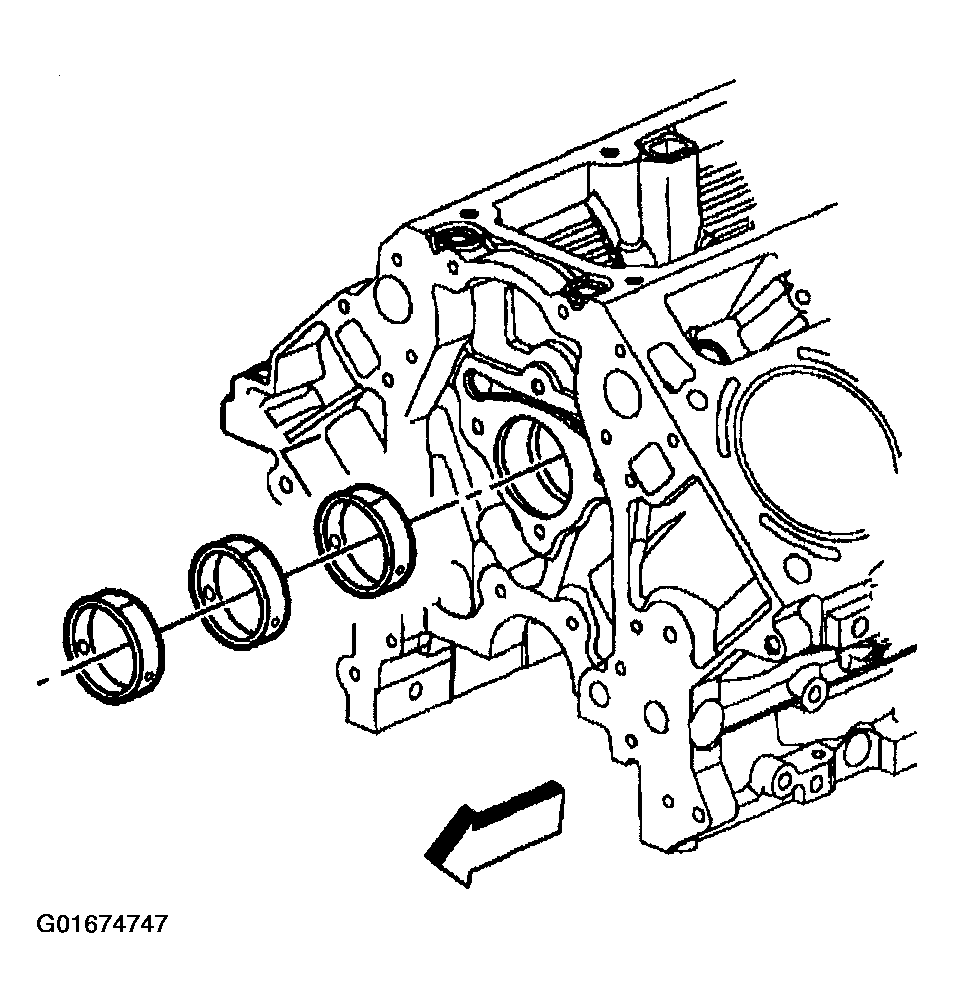

Fig 3: Camshaft Bearings
Courtesy of GENERAL MOTORS CORP.
Measure the camshaft journals for wear and out-of-round with a micrometer.
- If the camshaft bearing journals are more than 0.025 mm (0.001 in) out-of-round, replace the camshaft.
- If the camshaft bearing journal diameter is less that 54.99 mm (2.164 in), replace the camshaft.

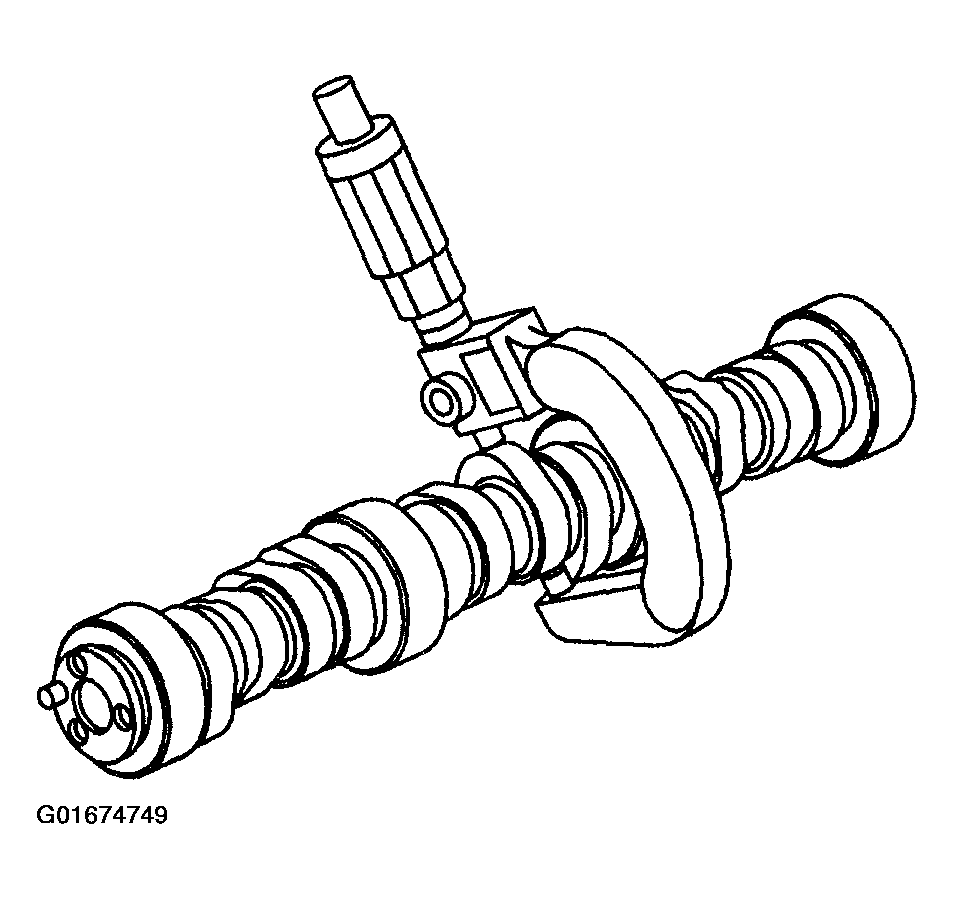

Fig 4: Measuring Camshaft Journals For Wear & Out-Of-Round
Courtesy of GENERAL MOTORS CORP.
Measure the camshaft lobes for wear with a micrometer.
- A 4.8/5.3 L camshaft with an intake lobe that measures 46.169 mm (1.817 in) or less must be replaced.
- A 4.8/5.3 L camshaft with an exhaust lobe that measures 46.199 mm (1.818 in) or less must be replaced.
- A 6.0 L camshaft with an intake lobe that measures 46.31 mm (1.823 in) or less must be replaced.
- A 6.0 L camshaft with an exhaust lobe that measures 46.31 mm (1.823 in) or less must be replaced.
Fig 5: Measuring Camshaft Lobes For Wear
Courtesy of GENERAL MOTORS CORP.
Measure the camshaft runout.
1. 13.1. Mount the camshaft in wooden V blocks or between centers on a fixture.
2. 13.2. Check the runout of the intermediate camshaft bearing journals using the J 7872.
3. 13.3. If camshaft runout exceeds 0.05 mm (0.002 in), the camshaft is bent and should be replaced.

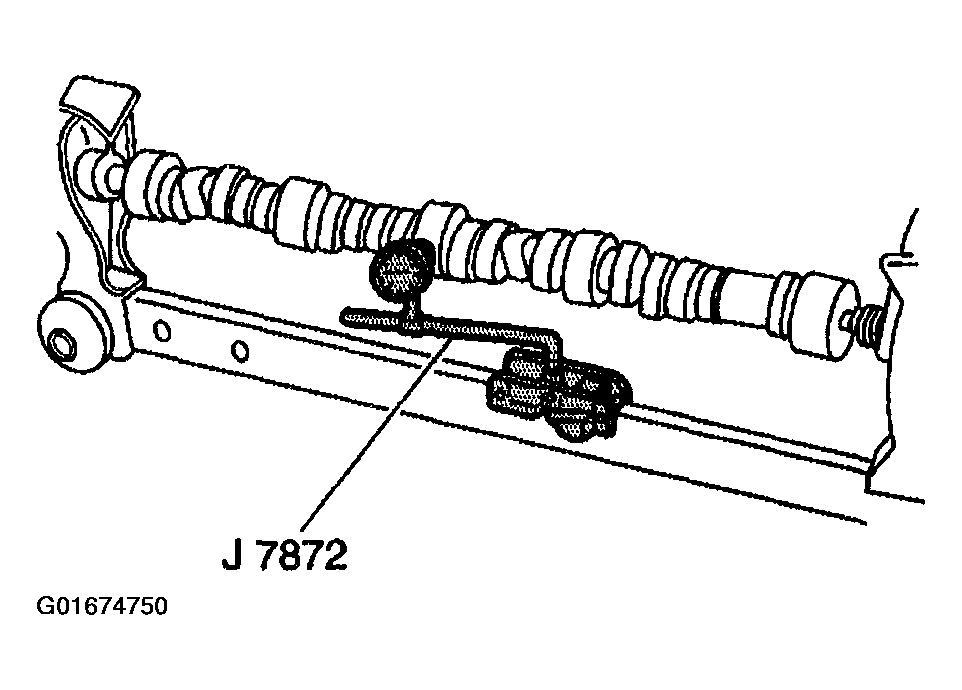

Fig 6: Measuring Camshaft Runout
Courtesy of GENERAL MOTORS CORP.
