Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

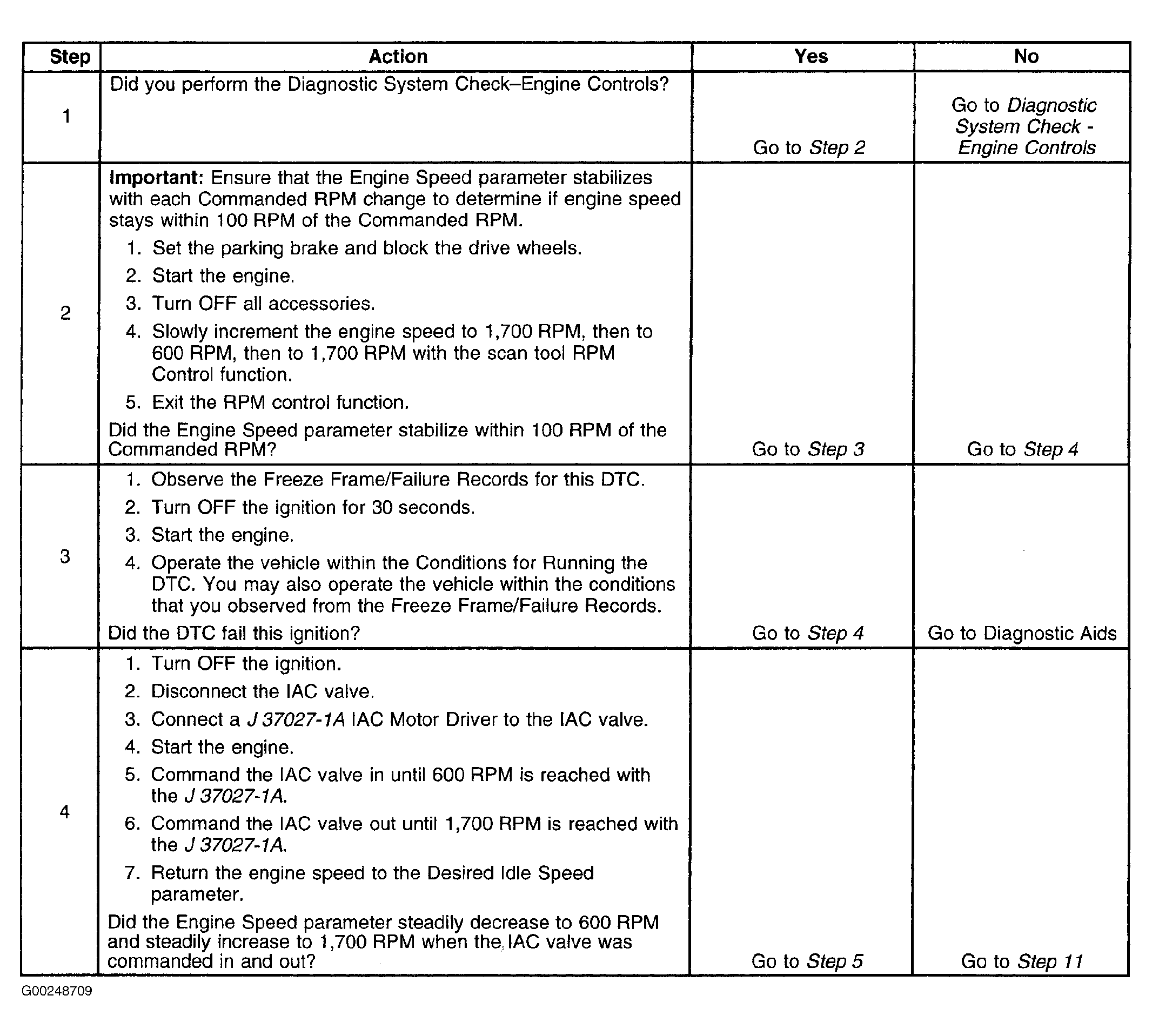

Fig 1: DTC P0507: Idle Speed High (Steps 1-4)
G00248709Courtesy of GENERAL MOTORS CORP.

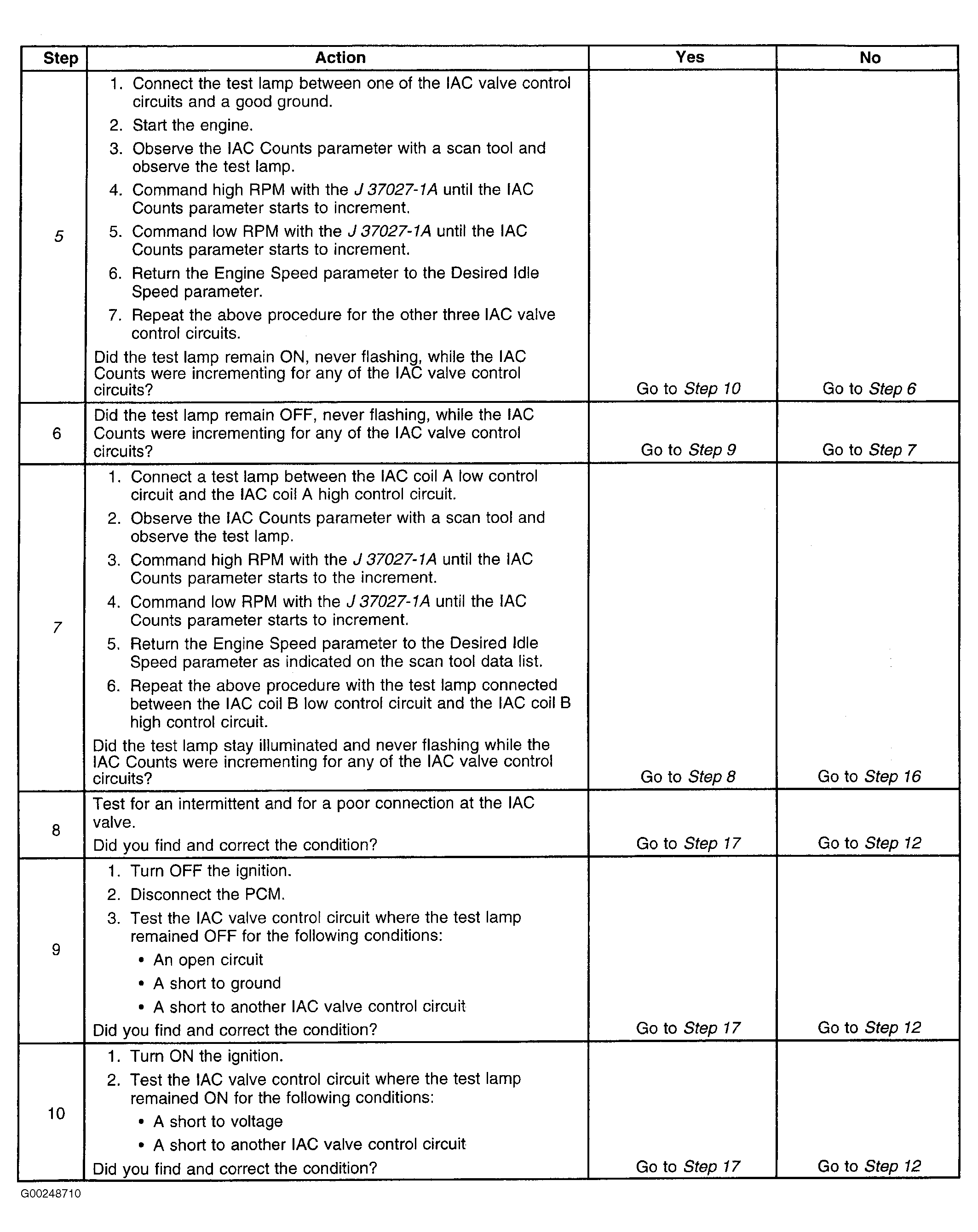

Fig 2: DTC P0507: Idle Speed High (Steps 5-10)
G00248710Courtesy of GENERAL MOTORS CORP.

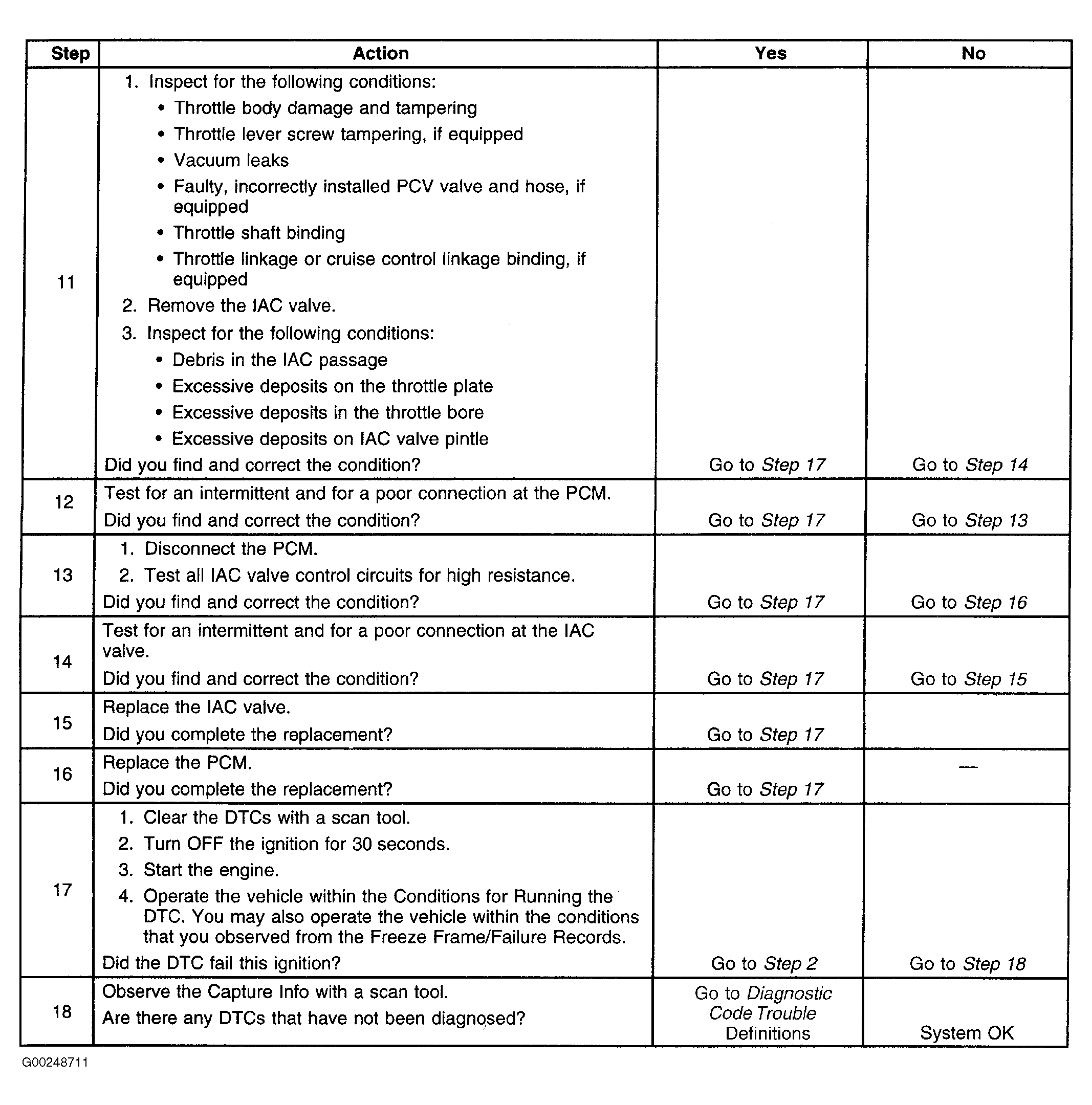

Fig 3: DTC P0507: Idle Speed High (Steps 11-18)
G00248711Courtesy of GENERAL MOTORS CORP.
