Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left (front) valve rocker arm(s). Valve Rocker Arm Replacement- Left .
  2. Remove the stationary hydraulic lash adjuster (SHLA) from the cylinder head bore.

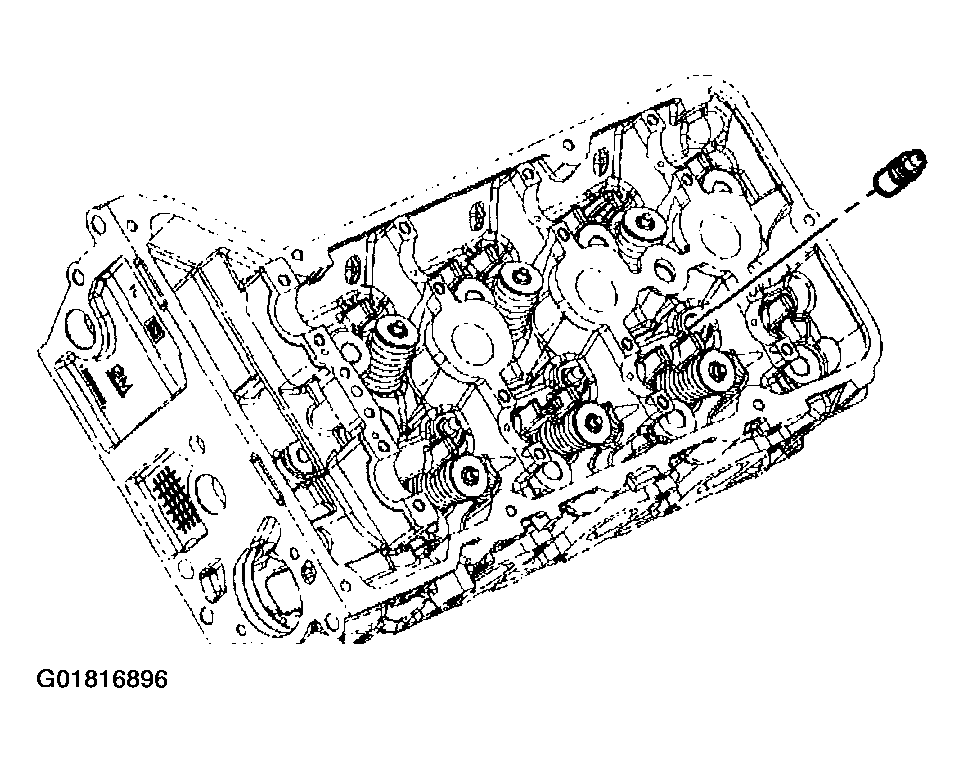

    Fig 1: Removing Stationary Hydraulic Lash Adjuster
    G01816896Courtesy of GENERAL MOTORS CORP.
  3. Clean and inspect the valve lifters. Refer to VALVE LIFTERS CLEANING AND INSPECTION in Engine Mechanical-3.5L Unit Repair.
  4. Store the lifter(s) in a clean, secure location
