Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left exhaust secondary camshaft timing sprocket. Refer to Secondary Camshaft Timing Sprocket Replacement - Left Exhaust .
  2. Remove the secondary drive chain tensioner retaining bolts.
  3. Remove the secondary drive tensioner.

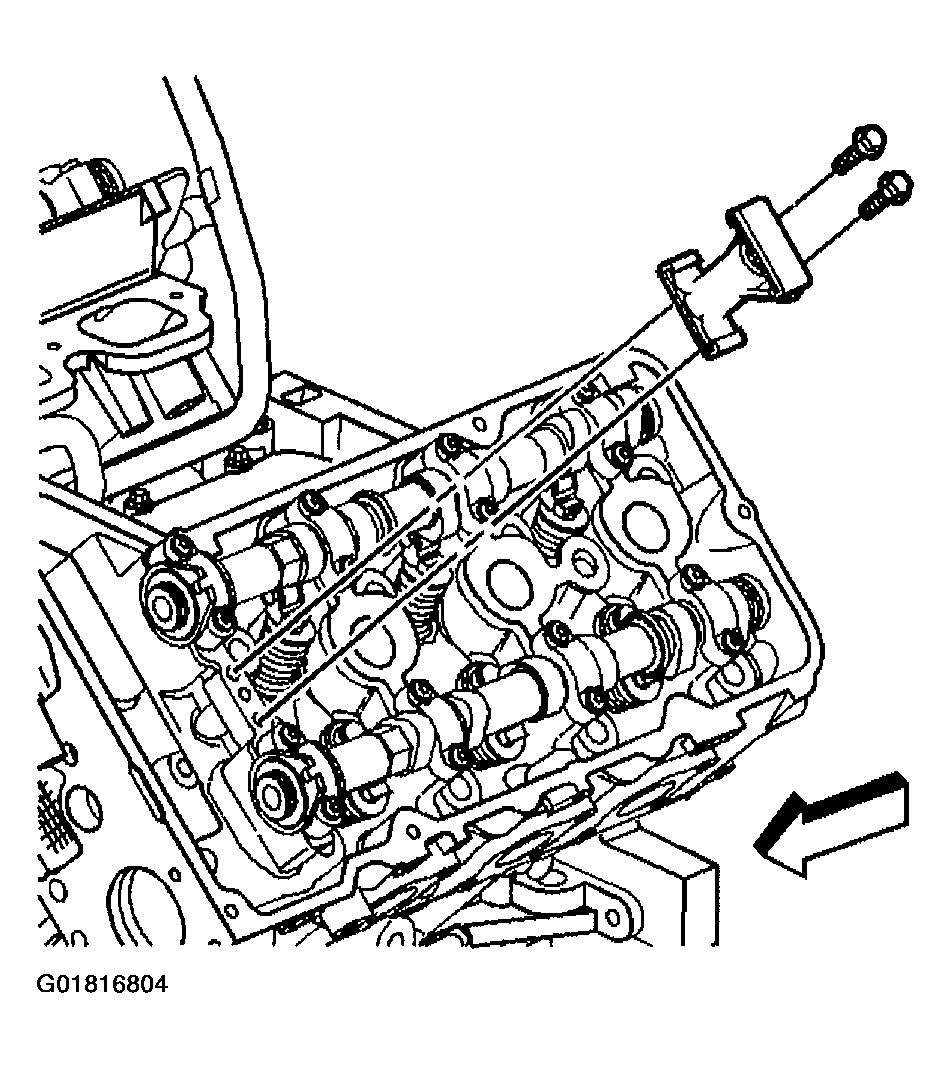

    Fig 1: Removing Secondary Drive Tensioner
    G01816804Courtesy of GENERAL MOTORS CORP.
