Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not allow the primary camshaft drive chain to fall into the crankcase.

  1. Install the primary camshaft drive chain into the front cover area.
  2. Set the camshaft timing. Refer to Setting Camshaft Timing .
  3. Install the camshaft position sensor. Refer to CRANKSHAFT POSITION SENSOR in Engine Controls -3.5L.
  4. Install the primary camshaft drive chain tensioner shoe. Refer to Primary Camshaft Drive Chain Tensioner Shoe Replacement .

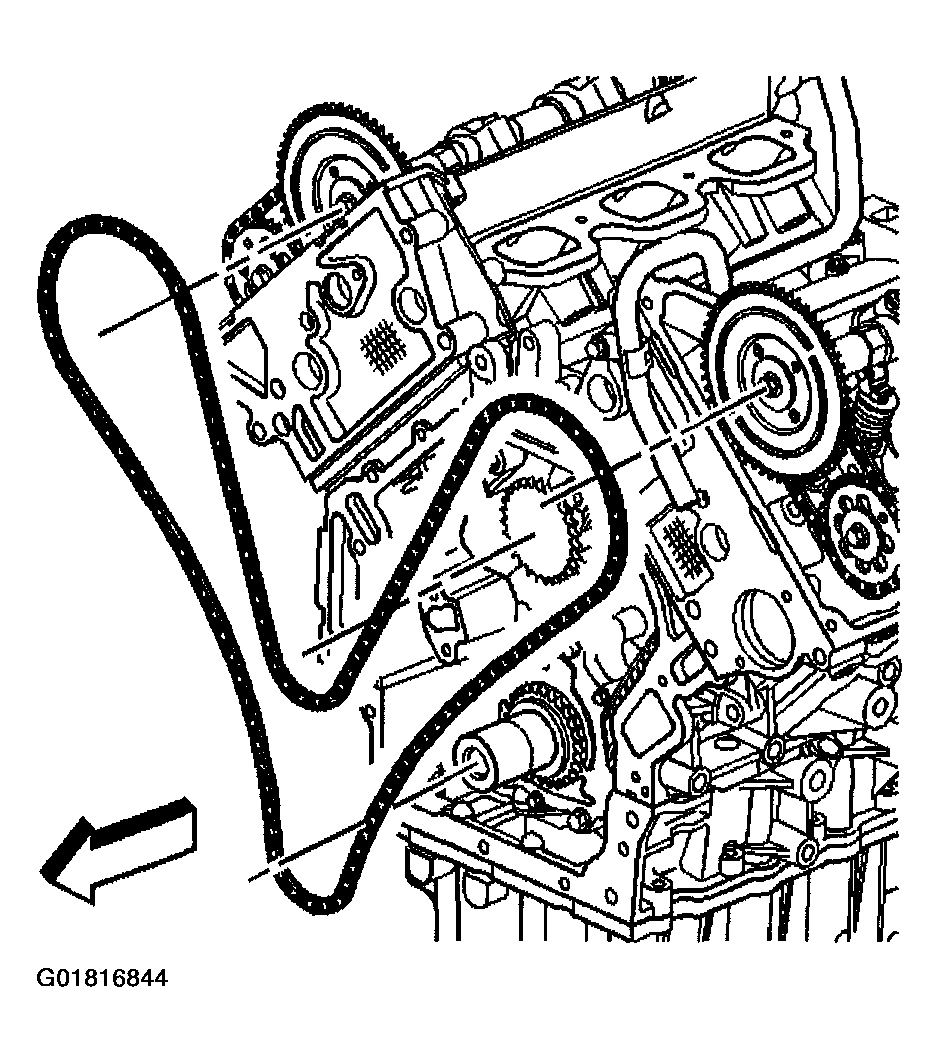

    Fig 1: Installing Primary Camshaft Drive Chain
    G01816844Courtesy of GENERAL MOTORS CORP.
