Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Support the engine assembly with a suitable jack.
  4. Remove the nut securing the right engine mount to the right engine mount bracket.
  5. Lower the jack allowing the engine to lower slightly.

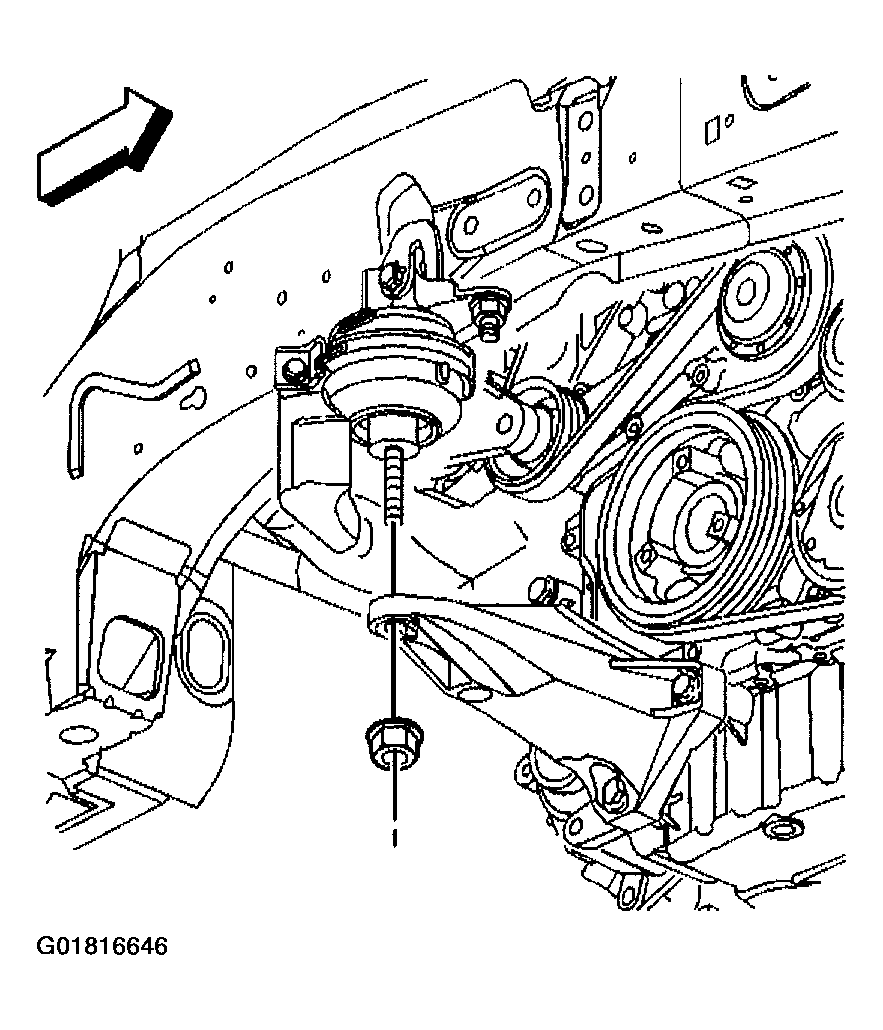

    Fig 1: Removing Right Engine Mount To Right Engine Mount Bracket Nut
    G01816646Courtesy of GENERAL MOTORS CORP.
  6. Remove the nut (1) and bolt (4) securing the right engine mount (3) to the frame rail.
  7. Remove the 2 nuts (2) securing the right engine mount (3) to the frame rail.
  8. Remove the right engine mount (3).

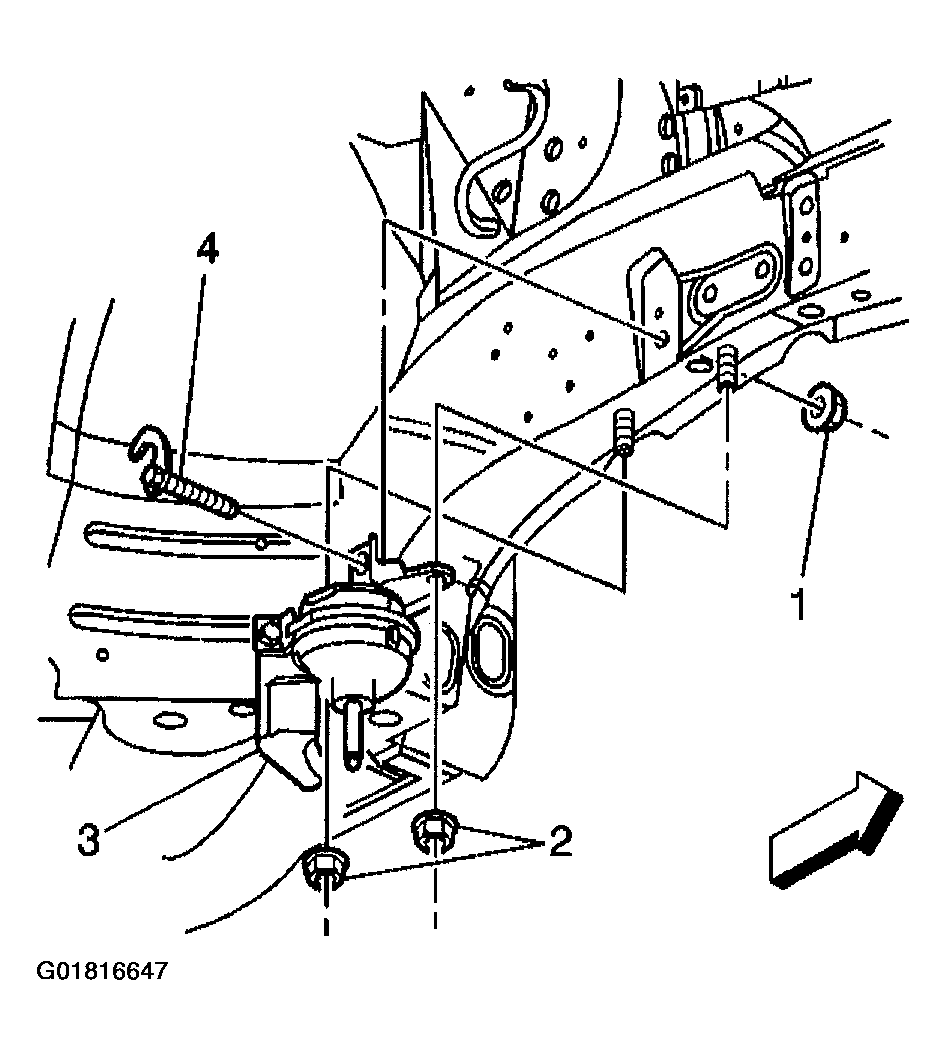

    Fig 2: Removing Right Engine Mount
    G01816647Courtesy of GENERAL MOTORS CORP.
