Diagnostic Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Suburban, and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

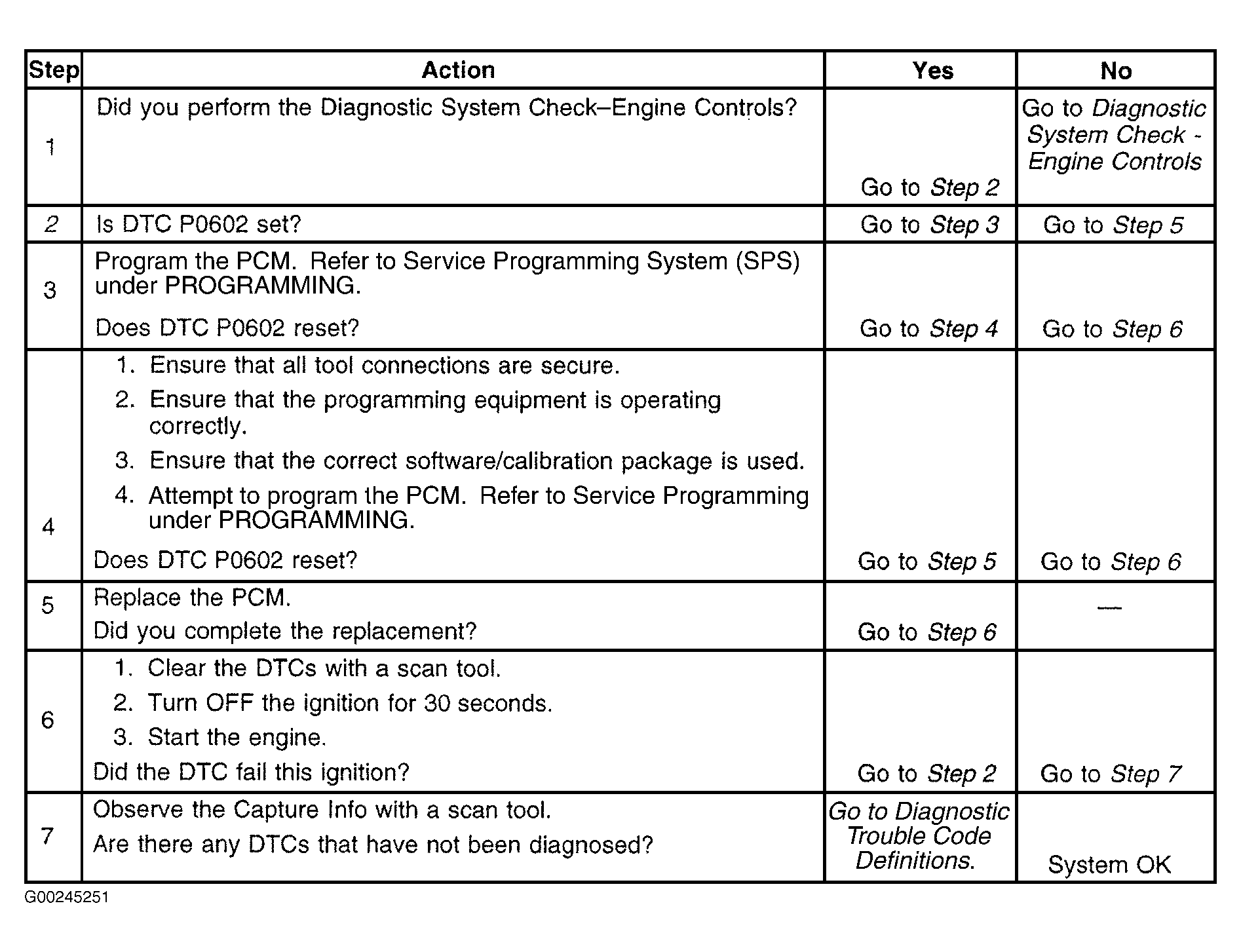

Fig 1: DTC P0601-P0607, P1600, P1621, P1627, P1680, P1681, P1683 & P2610: PCM Memory
G00245251Courtesy of GENERAL MOTORS CORP.
