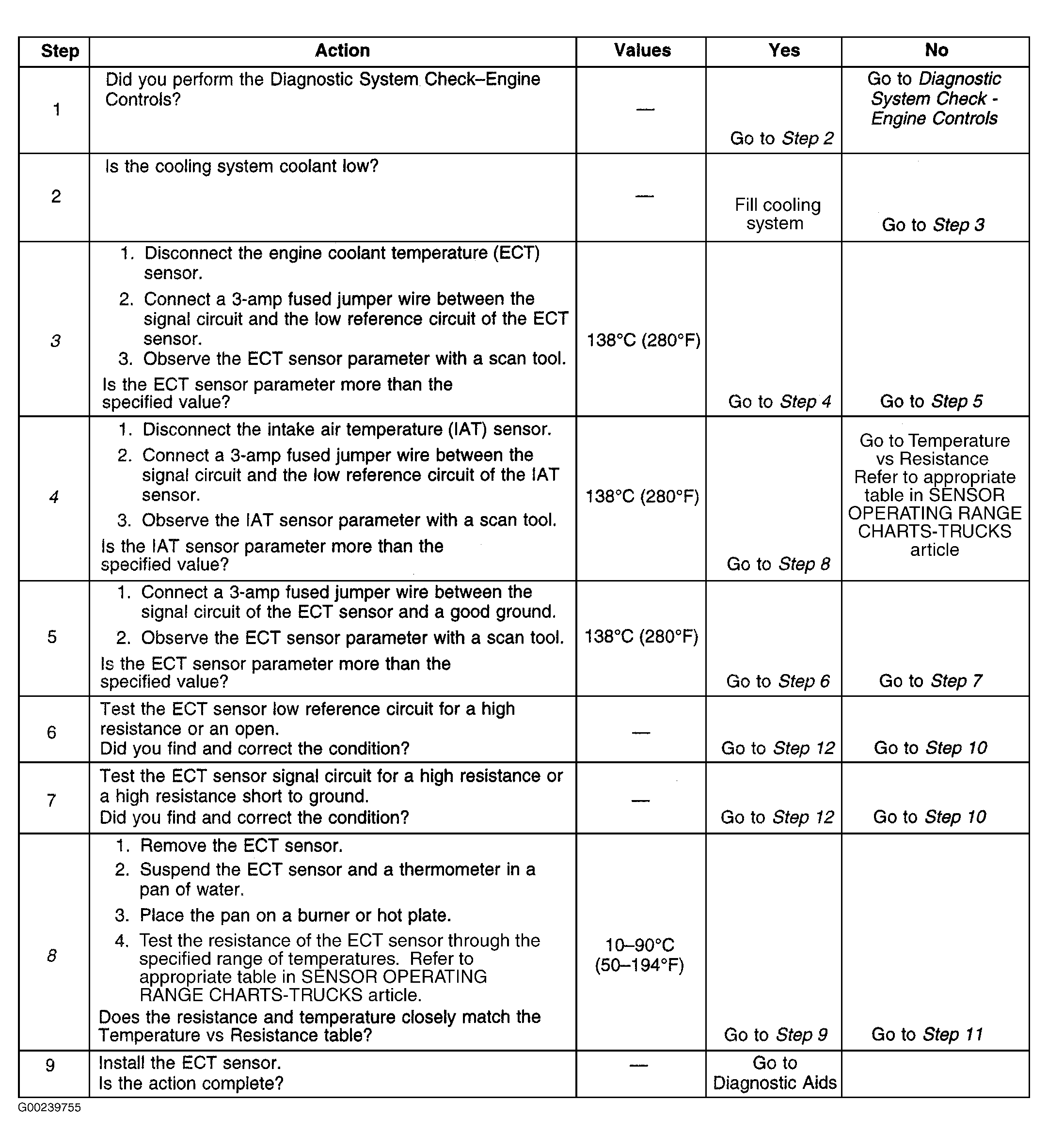

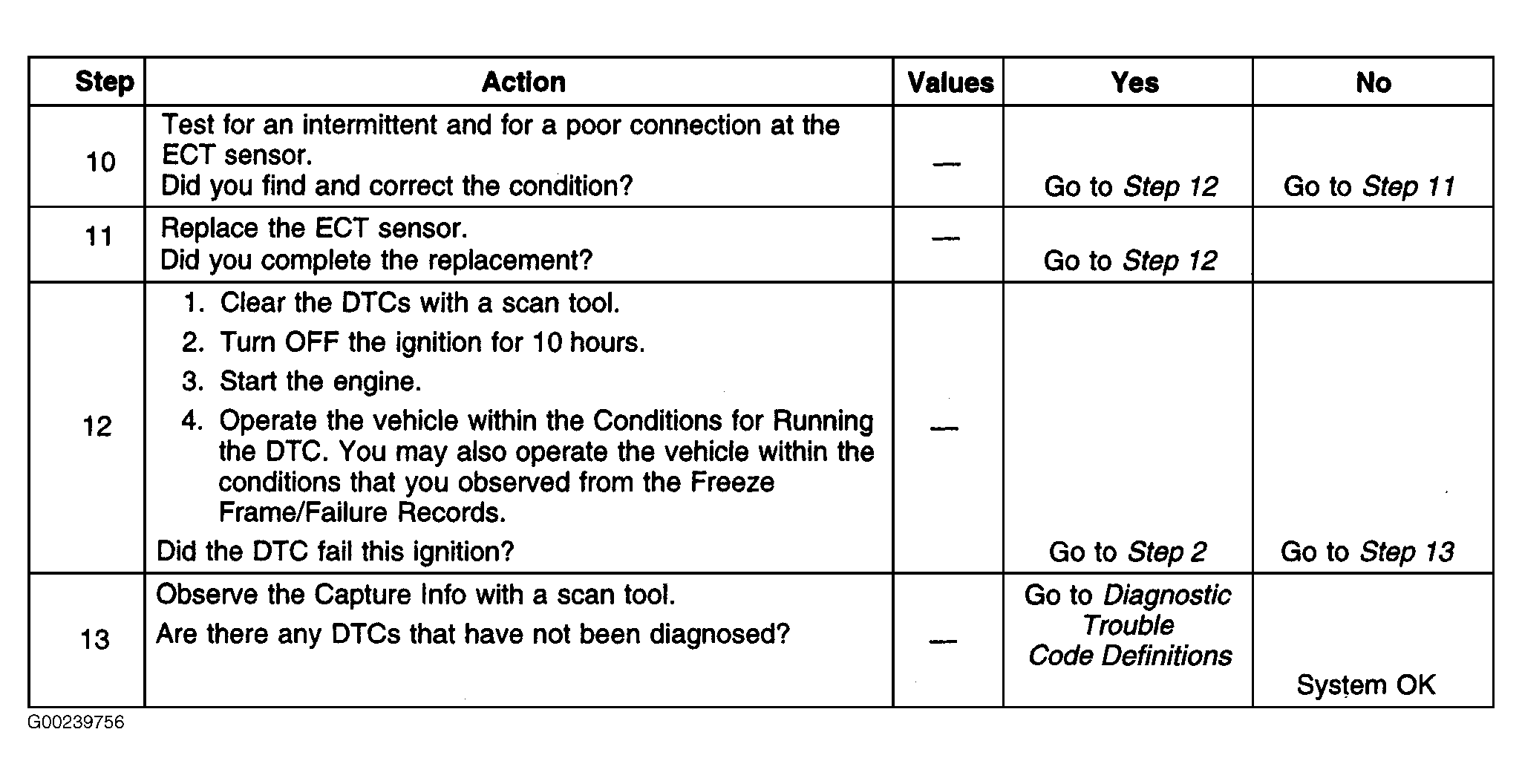

Diagnostic Procedures
WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
SENSOR TEMPERATURE VS. RESISTANCE
| Temperature - °F (°C) | (1) Ohms | ||
|---|---|---|---|
| 302 (150) | 47 | ||
| 284 (140) | 60 | ||
| 266 (130) | 77 | ||
| 248 (120) | 100 | ||
| 230 (110) | 132 | ||
| 212 (100) | 177 | ||
| 194 (90) | 241 | ||
| 176 (80) | 332 | ||
| 158 (70) | 467 | ||
| 140 (60) | 667 | ||
| 122 (50) | 973 | ||
| 113 (45) | 1188 | ||
| 104 (40) | 1459 | ||
| 95 (35) | 1802 | ||
| 86 (30) | 2238 | ||
| 77 (25) | 2796 | ||
| 68 (20) | 3520 | ||
| 59 (15) | 4450 | ||
| 50 (10) | 5670 | ||
| 41 (5) | 7280 | ||
| 32 (0) | 9420 | ||
| 23 (-5) | 12,300 | ||
| 14 (-10) | 16,180 | ||
| 5 (-15) | 21,450 | ||
| -4 (-20) | 28,680 | ||
| -22 (-30) | 52,700 | ||
| -40 (-40) | 100,700 | ||
|
|||
