THERMO Element Adjustment
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

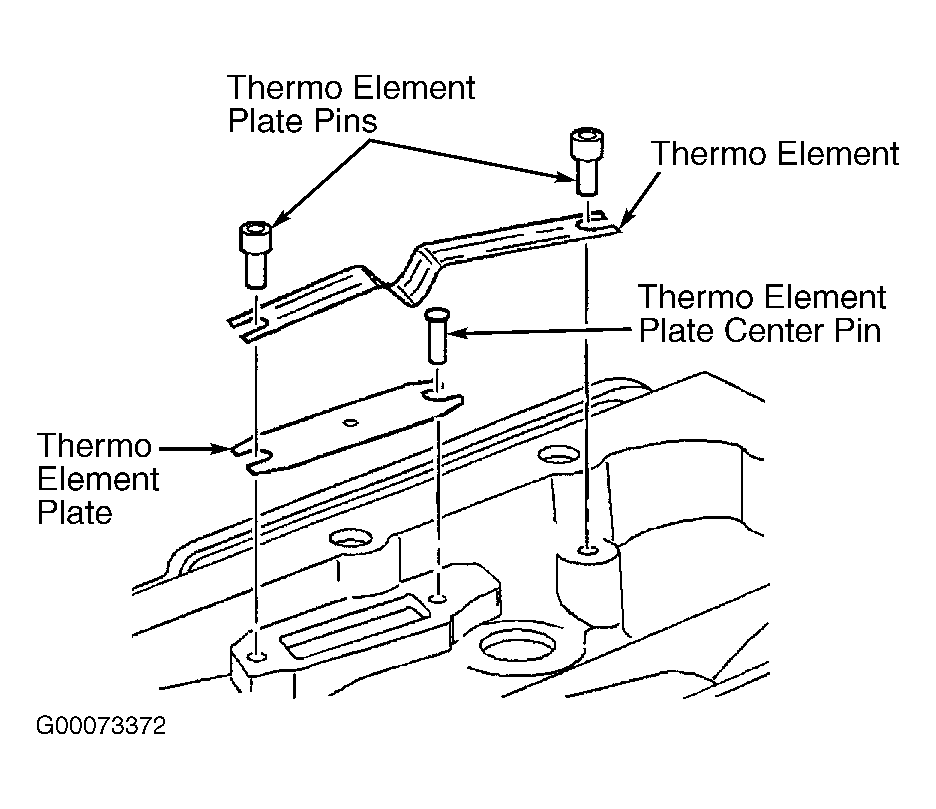

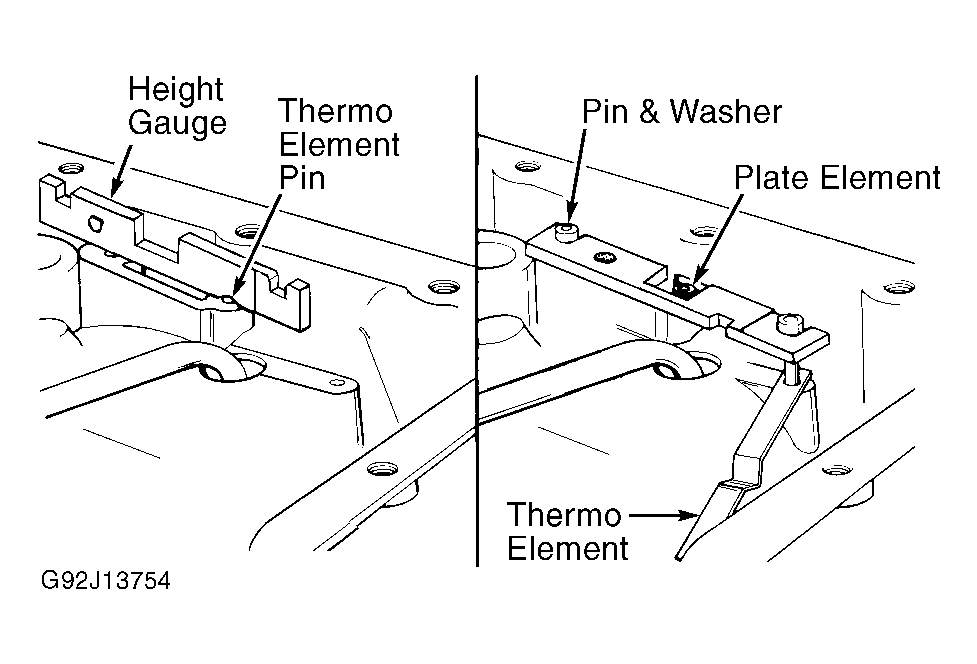

If thermo element replacement is necessary, remove retainers, pins and thermo element. Remove plate element. See Fig 1. For NEW element, set thermo pin height with Height Gauge (J-34094-A). See Fig 2. Install plate element. Install pin and retainer assemblies, and set height with height gauge. Install NEW thermo element. "V" shape in thermo element must contact element plate.
