Input & 3RD Sprag Clutches: Reassembly

WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

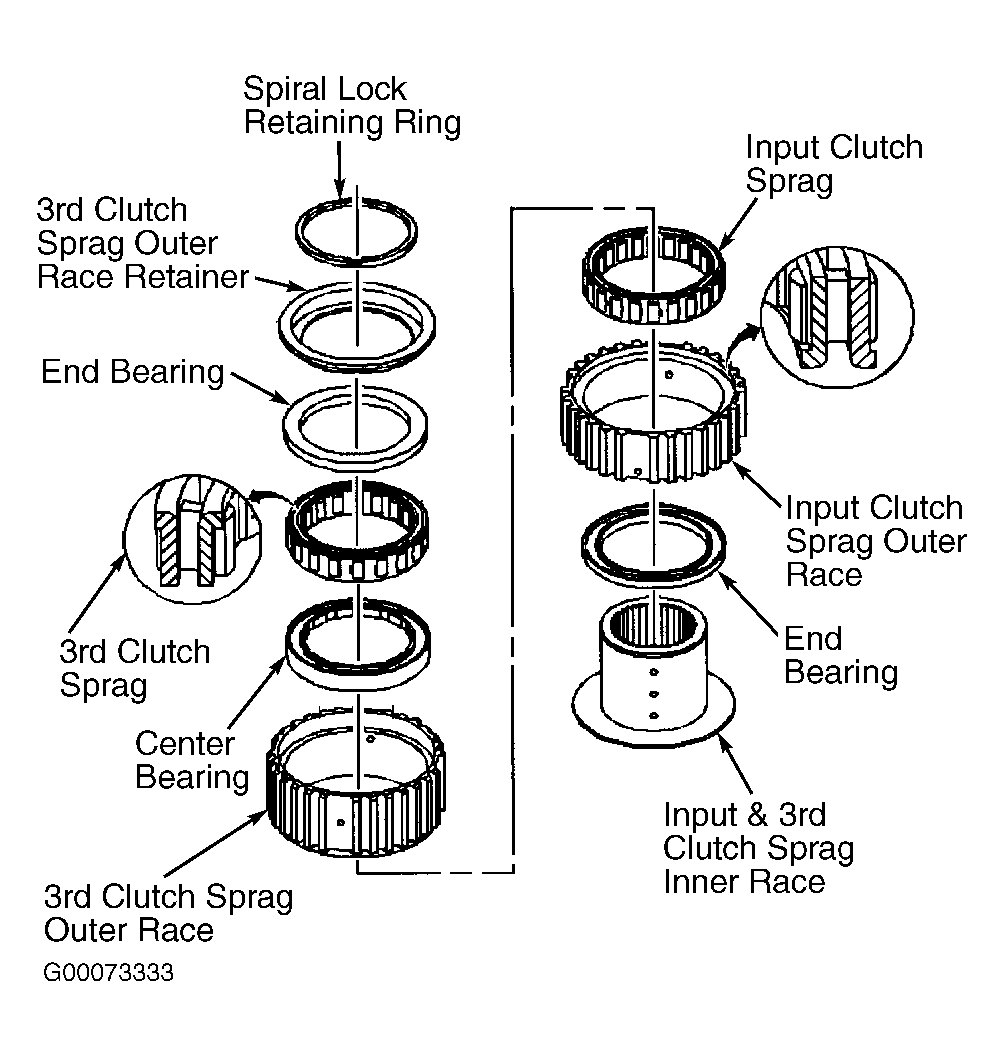

  1. Position input clutch sprag outer race on flat surface with flat side facing down. Insert end bearing with flat side down into input clutch sprag outer race. Insert input sprag into outer race. See Figure.
  2. Position 3rd clutch sprag outer race on flat surface with beveled side facing down. Install center bearing into 3rd clutch. Install 3rd sprag into 3rd clutch outer race. Lip on sprag cage must be facing up. Insert input and 3rd clutch sprag end bearing into third clutch sprag outer race with flat side up. See Figure.
  3. Install input clutch sprag assembly onto input and 3rd clutch sprag inner race with flat side of input clutch sprag outer race facing down. Install 3rd clutch sprag assembly onto input and 3rd clutch sprag inner race with beveled side of 3rd clutch sprag outer race facing input clutch sprag assembly. Install 3rd clutch sprag outer race retainer onto 3rd clutch sprag outer race. See Figure.
    4. NOTE: Use new retaining ring. DO NOT attempt to reinstall old retaining ring. Ensure spiral lock retaining ring is seated in groove on inner race. Tabs and slots on retaining ring must lock.

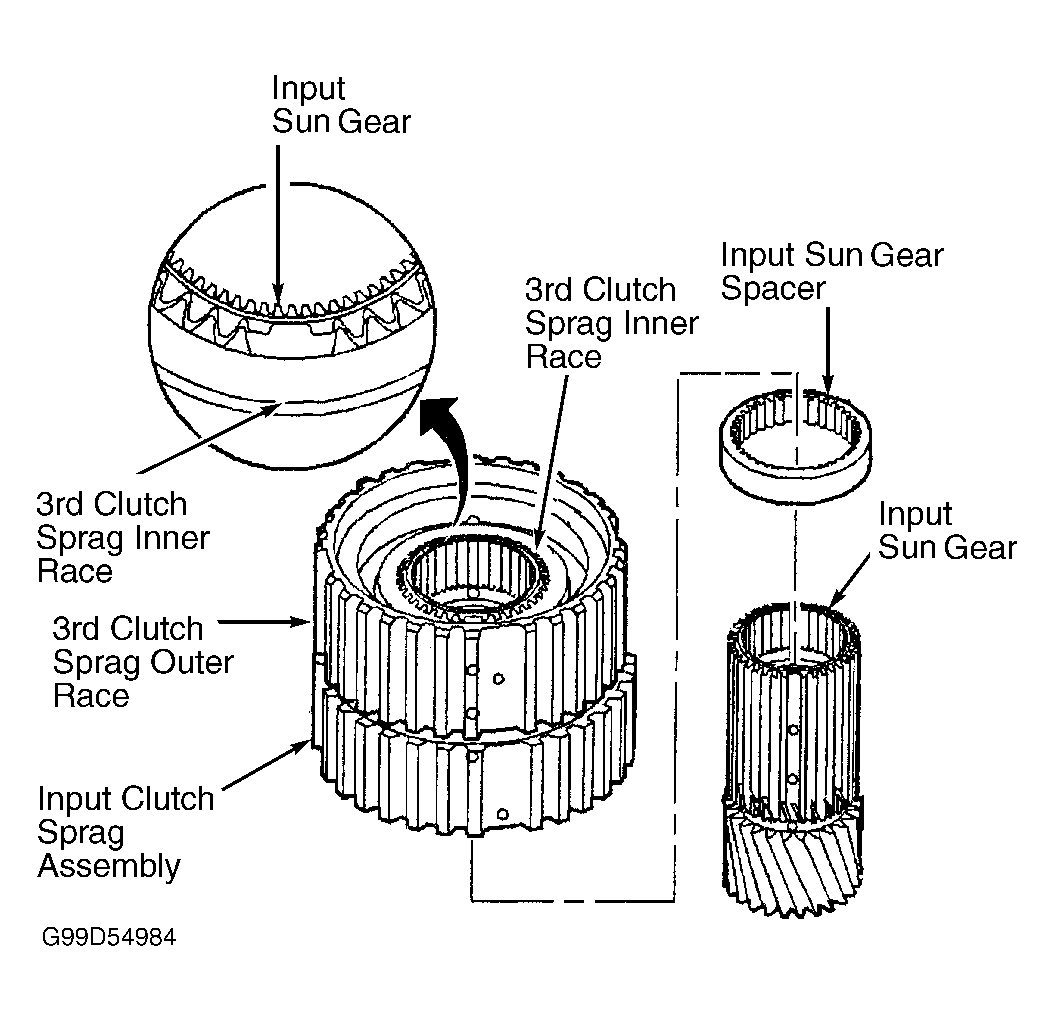

  4. Using small flat-blade screwdriver, install retaining ring onto input clutch sprag. Assemble spacer onto input sun gear. Install input and 3rd sprag clutch assemblies onto input sun gear. See Figure.
