EGR Valve Bracket (8.1L): Installation

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new EGR gasket onto the intake manifold. Install the EGR valve adapter bracket. Install the EGR valve adapter bracket nuts and tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  2. Install the EGR pipe. See EGR PIPE (8.1L) . Install the EGR valve. See EGR VALVE (8.1L) .

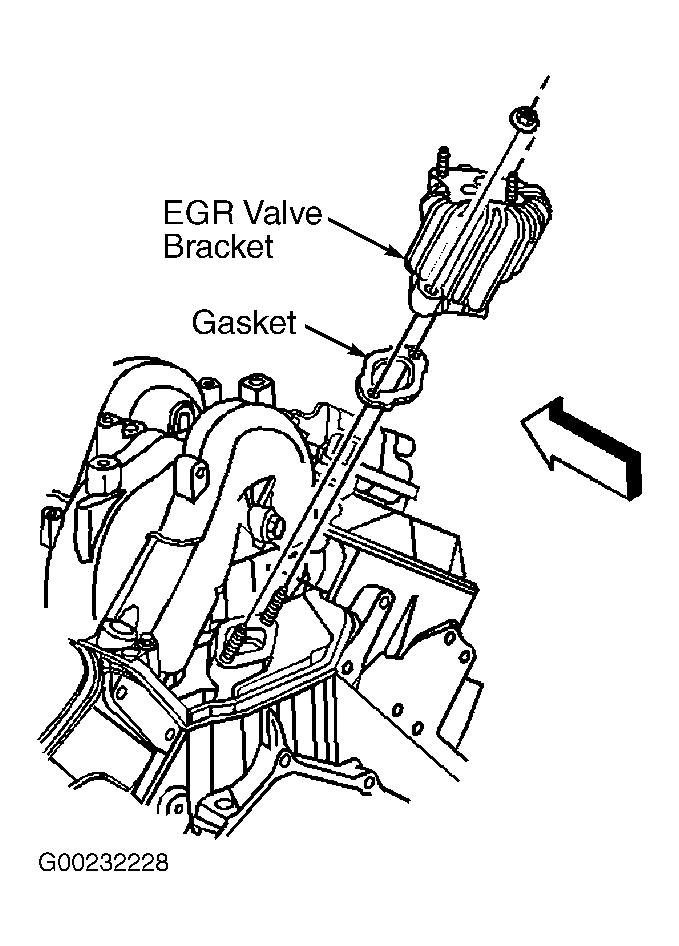

Fig 1: Removing/Installing EGR Valve Bracket (8.1L)
G00232228Courtesy of GENERAL MOTORS CORP.
