Diagnostic Procedure

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Hummer H2, 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, and 2003 GMC Cab & Chassis Sierra. However, it is still accessible from the selected car via links, so may be relevant.

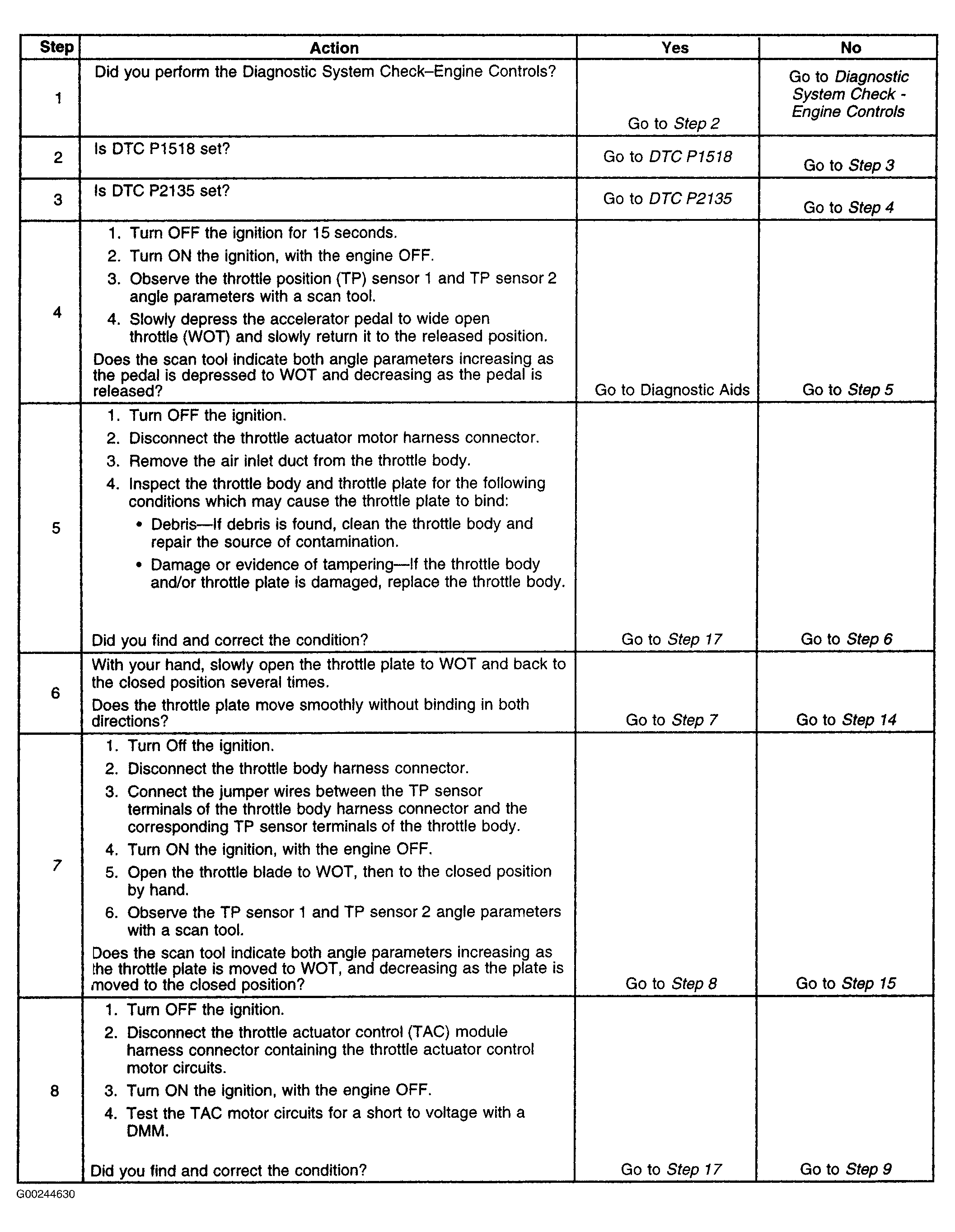

Fig 1: DTC P1516: Predicted Vs Actual Throttle Position Correlation Error (Steps 1-8)
G00244630Courtesy of GENERAL MOTORS CORP.

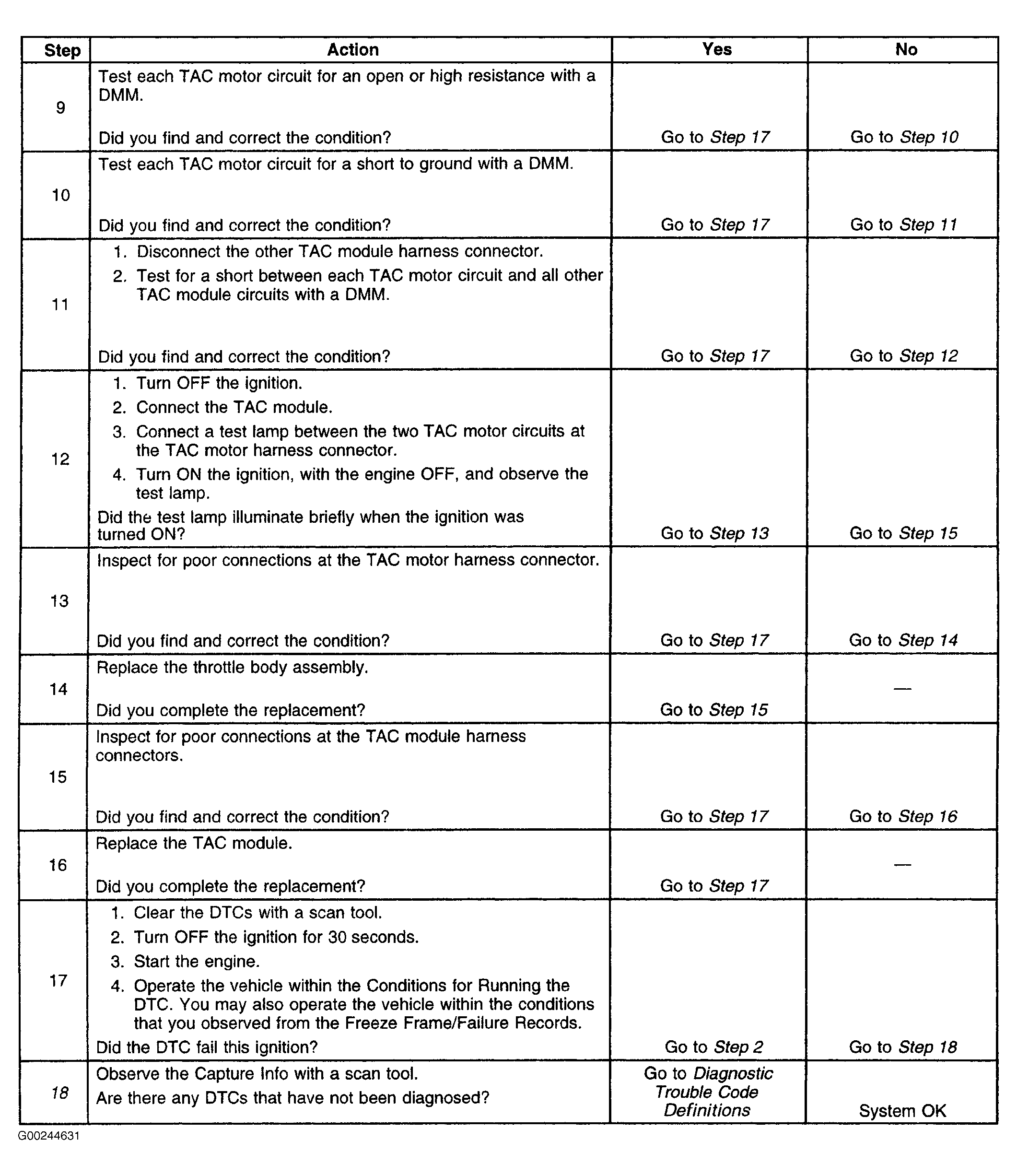

Fig 2: DTC P1516: Predicted Vs Actual Throttle Position Correlation Error (Steps 9-18)
G00244631Courtesy of GENERAL MOTORS CORP.
