Stabilizer Shaft (35 Series): Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

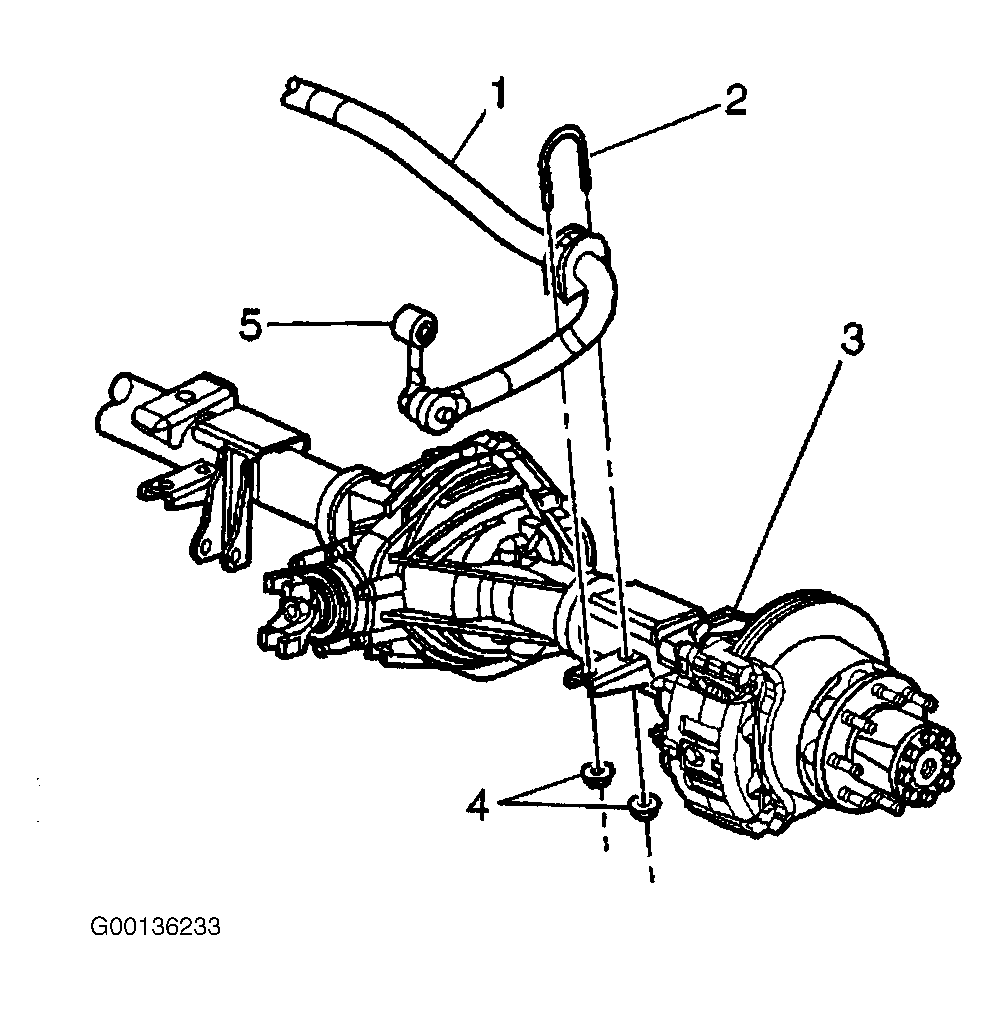

  1. Install the stabilizer shaft (1). See Figure .
  2. Install the stabilizer shaft insulator brackets (2) and nuts (4) to the rear axle (3). See Figure .

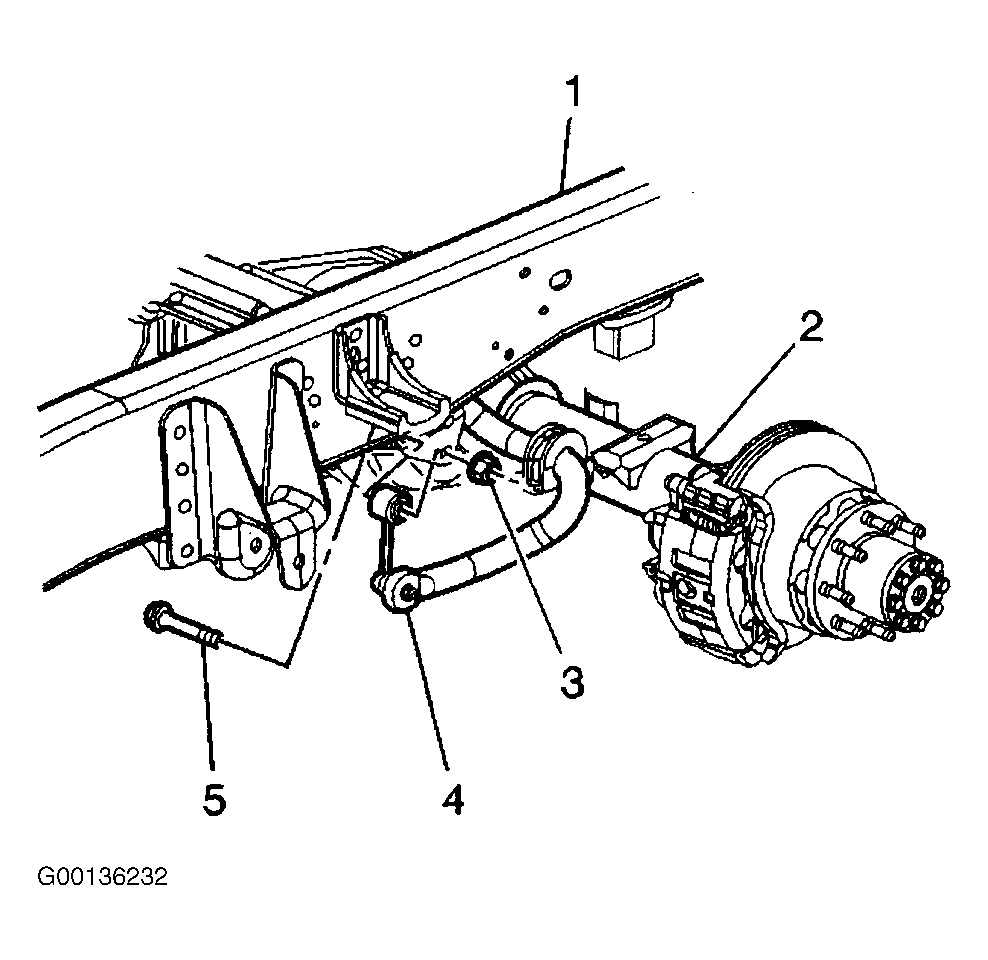

  3. Install the stabilizer shaft link to the frame (1), and install the retaining bolt (5) and nuts (3). See Figure . Tighten the stabilizer shaft link nut to specification. See TORQUE SPECIFICATIONS  . Tighten the insulator bracket bolts to specification.
  4. Lower the vehicle.
