Stabilizer Shaft & Insulators (15/25 Series): Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the stabilizer shaft insulators. See Figure .
Install the stabilizer shaft.
Install the stabilizer shaft insulator brackets to the rear axle.

NOTE: When tightening the lower link nut, verify that the inner jam nut bottoms out on the ball stud.

Install the stabilizer shaft link nut to the ball stud. See Figure and Fig 1 . Tighten the ball stud-to-stabilizer shaft nut to specification. See TORQUE SPECIFICATIONS . Tighten the insulator bracket bolts to specification. See ///////////////////////////////////////////////////TORQUE SPECIFICATIONS .
Lower the vehicle.

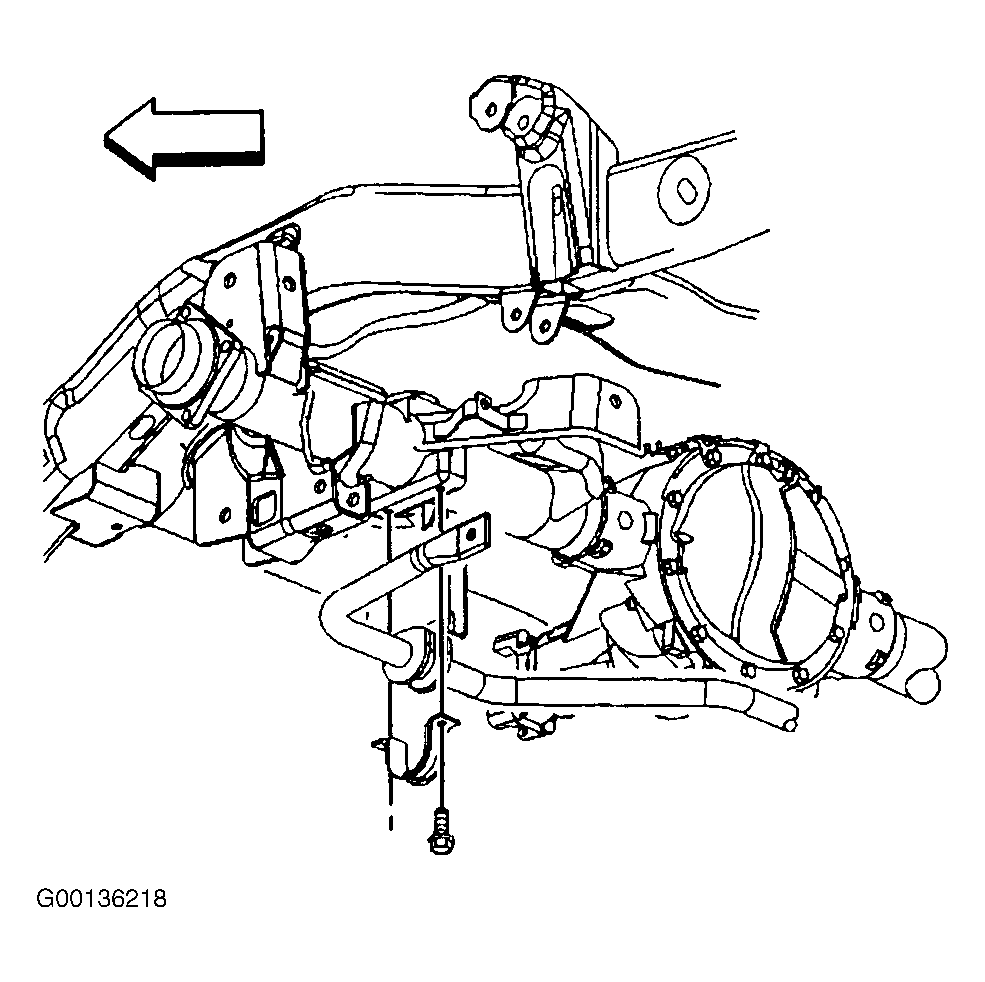

Fig 1: Installing Stabilizer Shaft Link Nut To Ball Stud (15/25 Series)

Courtesy of GENERAL MOTORS CORP.
