Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the spark plug wire from the number 6 cylinder spark plug.
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube bracket bolt.
  4. Remove the oil level indicator tube.

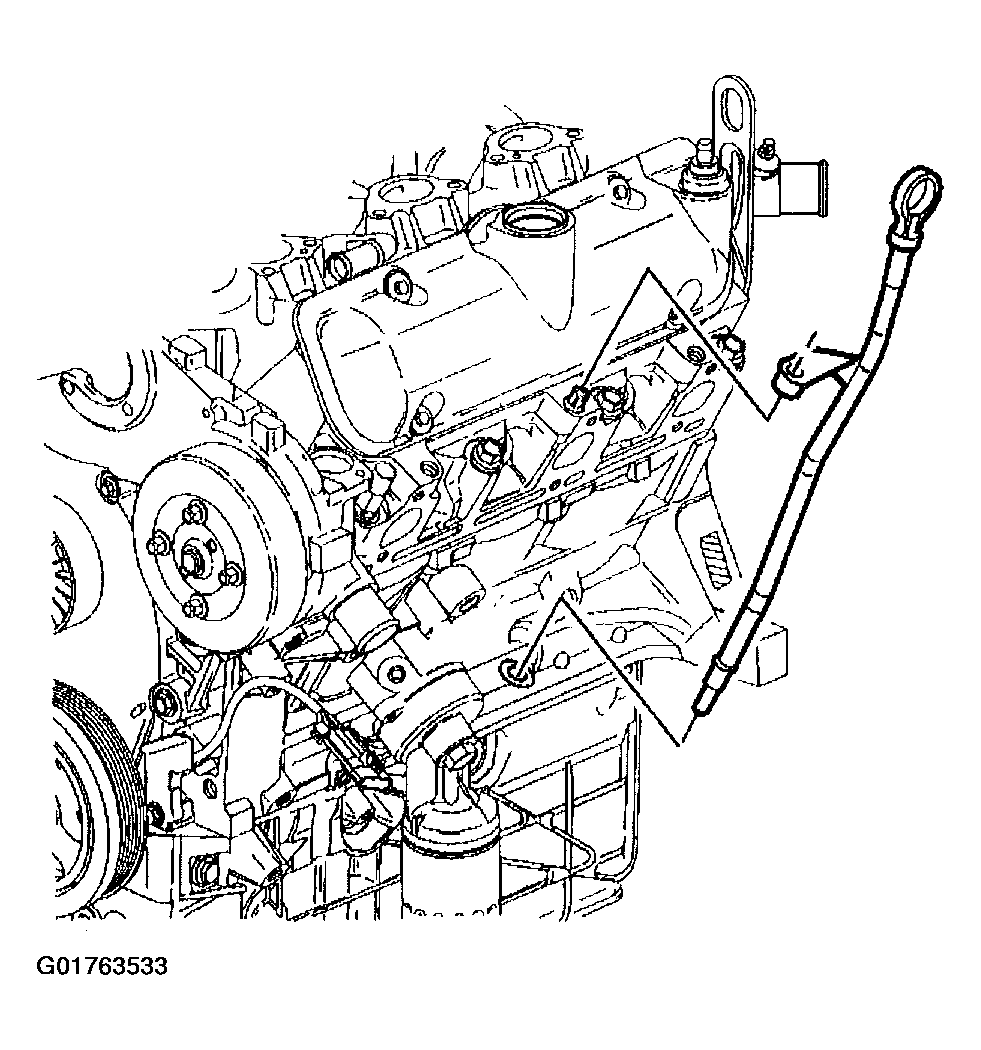

    Fig 1: Oil Level Indicator Tube
    G01763533Courtesy of GENERAL MOTORS CORP.
