EVAP Canister Vent Valve: Installation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the EVAP canister vent valve to the vent bracket. Connect the vent hose to the EVAP canister vent valve. Connect the EVAP vent valve electrical connector. On A/T models, raise the right muffler. On all models, lower the vehicle.

Fig 1: Locating EVAP Vent Valve

Courtesy of GENERAL MOTORS CORP.

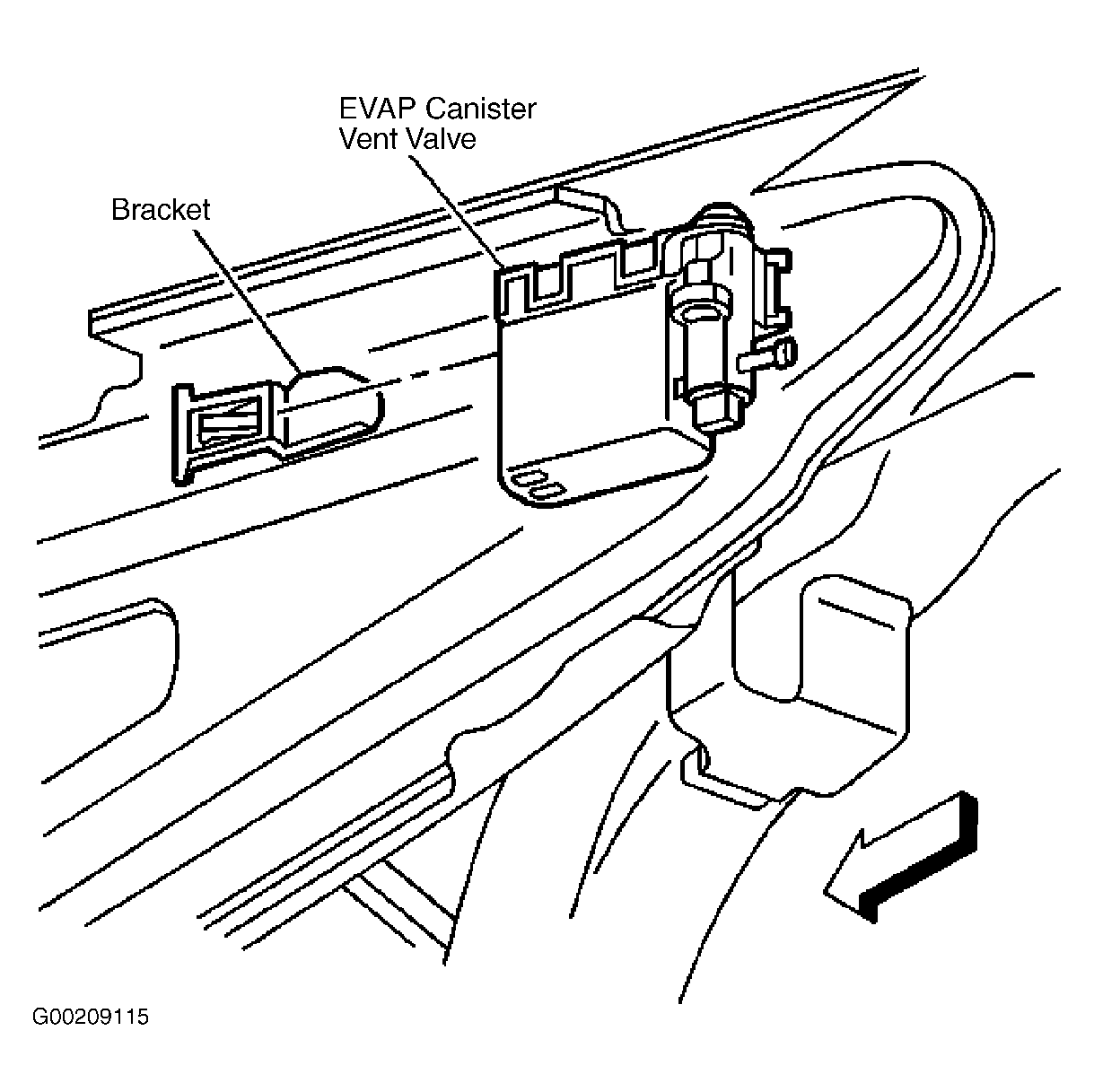

Fig 2: Removing/Installing EVAP Canister Vent Valve

Courtesy of GENERAL MOTORS CORP.
