Removal & Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clutch pedal position switch from the clutch pedal. See Fig 1 . Remove the electrical connector from the clutch pedal position switch.
Install the electrical connector to the clutch pedal position switch. Install the clutch pedal position switch to the clutch pedal.

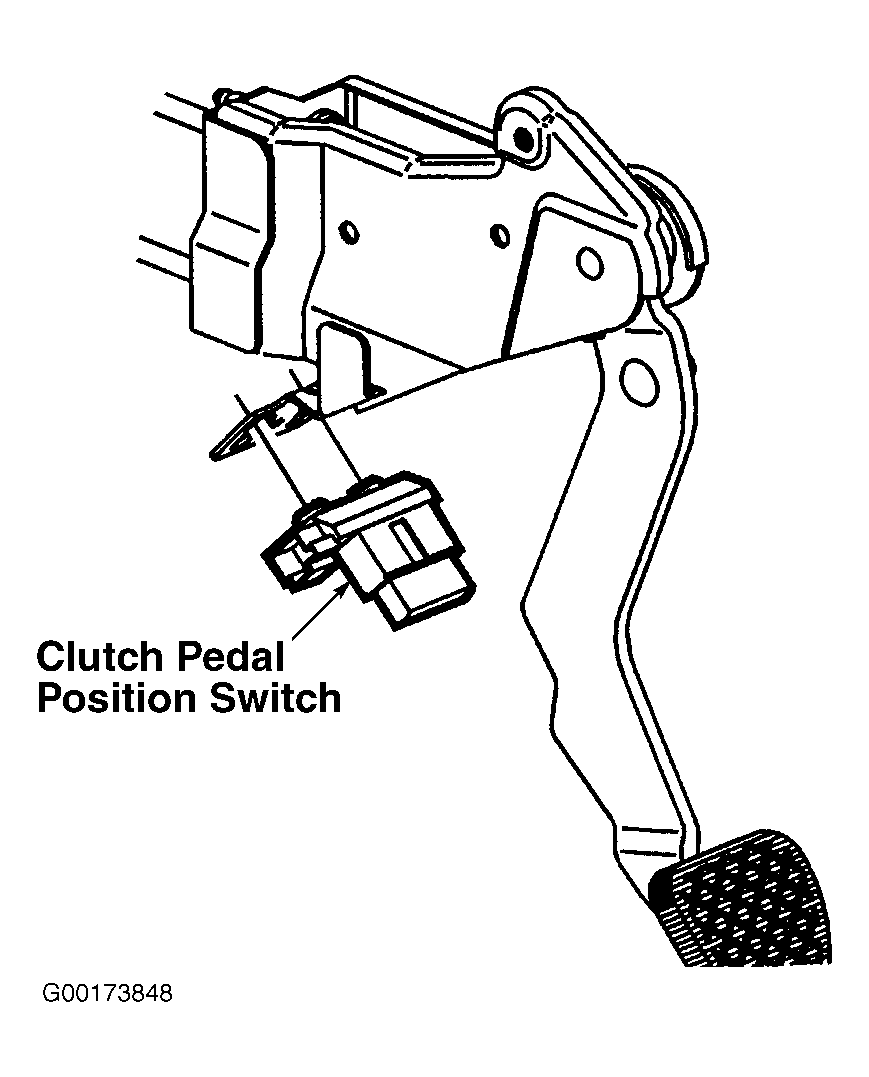

Fig 1: Replacing Clutch Pedal Position Switch

Courtesy of GENERAL MOTORS CORP.
