Removal & Installation (Lower & Upper Front Mode Actuators)

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine cover. Disconnect negative battery cable. Remove instrument panel. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT.

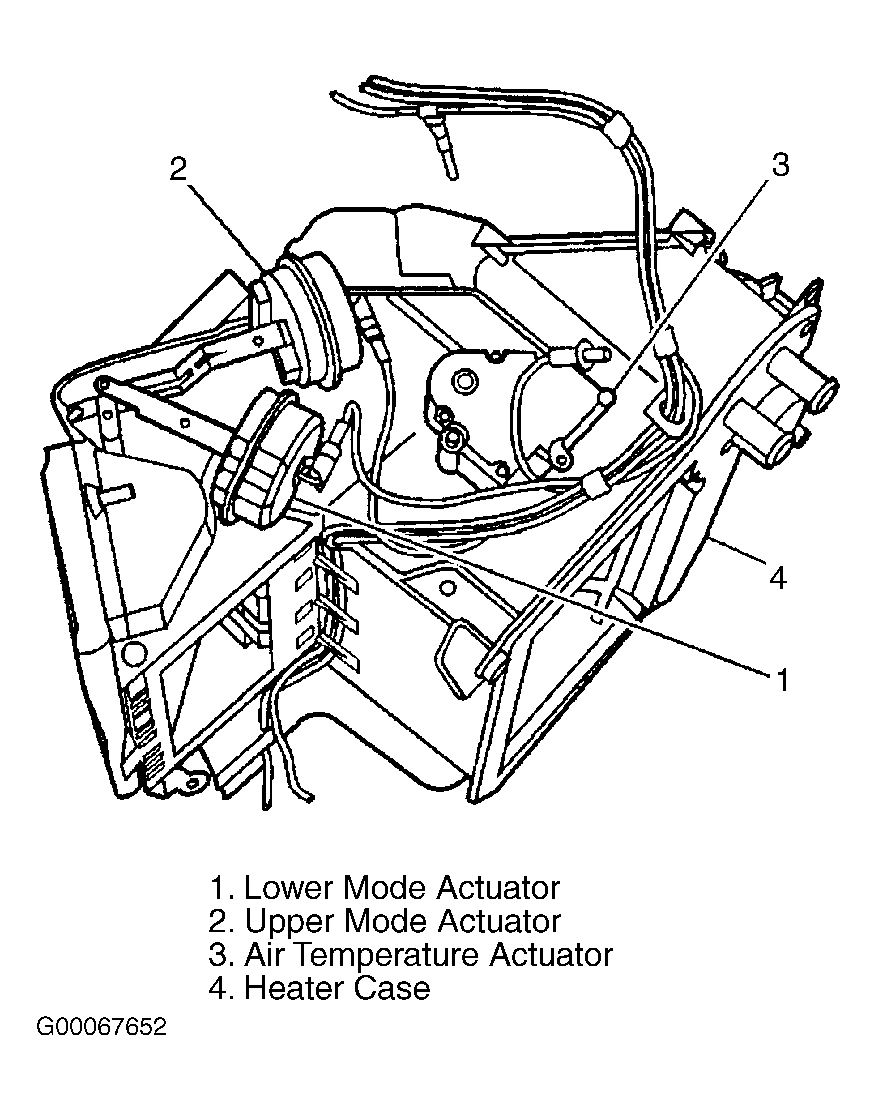

  2. Disconnect vacuum hose from mode actuator. See Figure. Remove mode actuator from heater case. Disconnect linkage from mode actuator.
  3. To install, reverse removal procedure.
