Vacuum Hose Diagram(S)

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

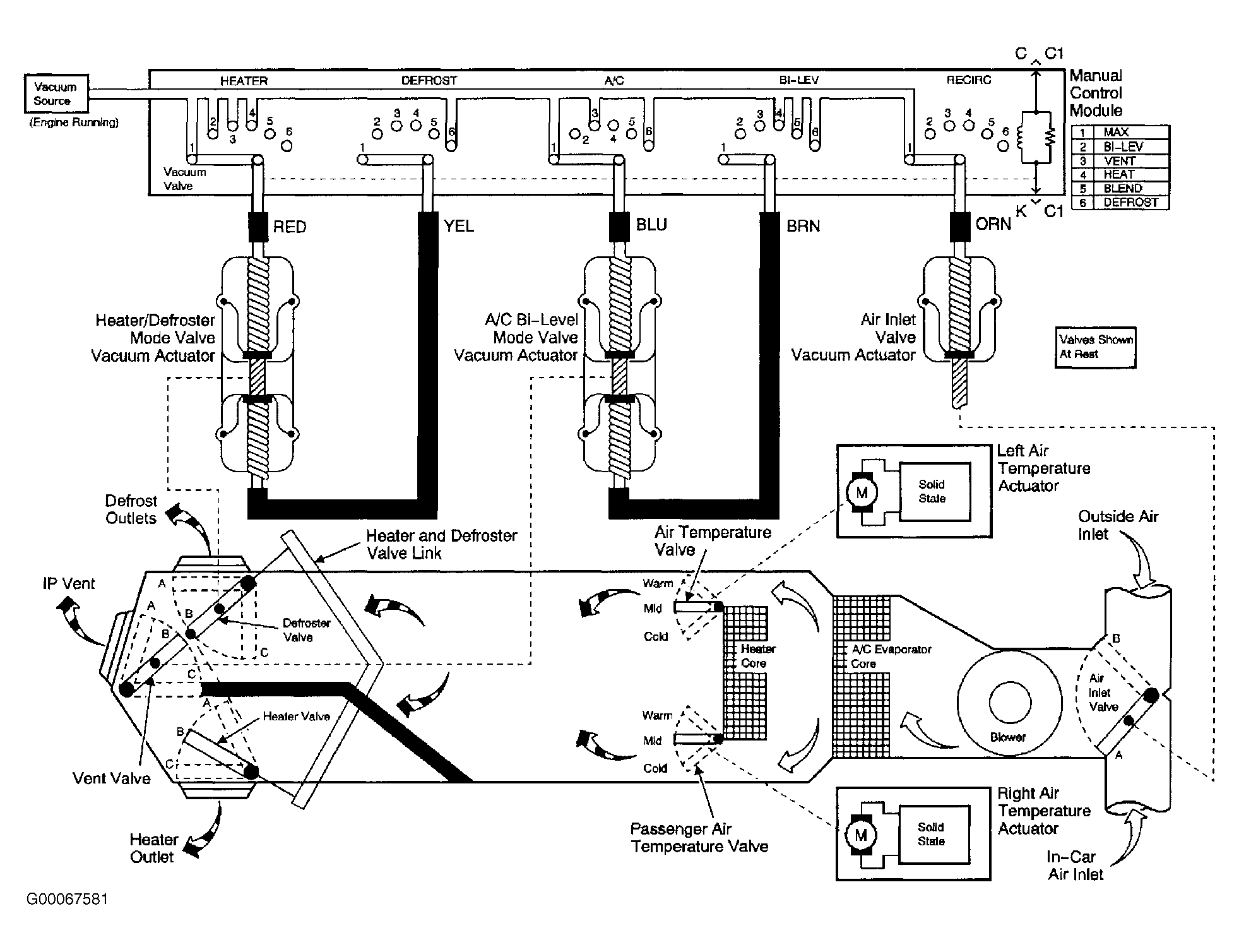

Fig 1: Manual A/C Heater System Vacuum Diagram (2002 Century & Regal)

Courtesy of GENERAL MOTORS CORP.
