Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

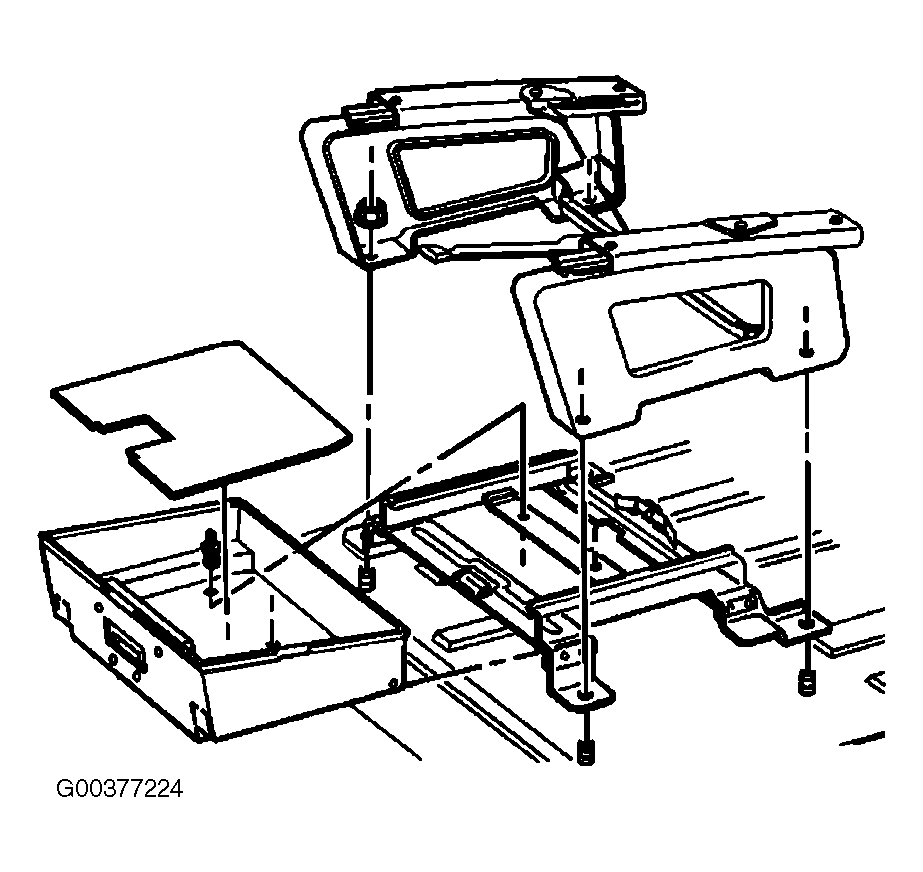

  1. Install the track assembly to the vehicle. See Figure.
  2. Install the passenger seat storage tray to the track assembly.
  3. Install the storage tray to track assembly retainers.
  4. Install the storage tray insert.
  5. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
