Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the power seat switch to the seat. See Fig 1.

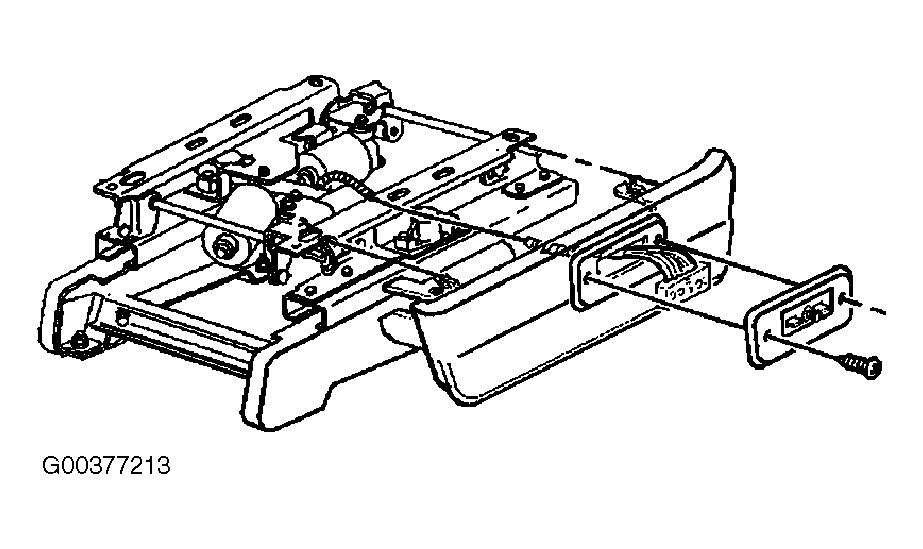

    2. Fig 1: Removing/Installing Power Seat Switch Screws
    G00377213Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the power seat switch. See Fig 2.
  3. Remove the power seat switch.

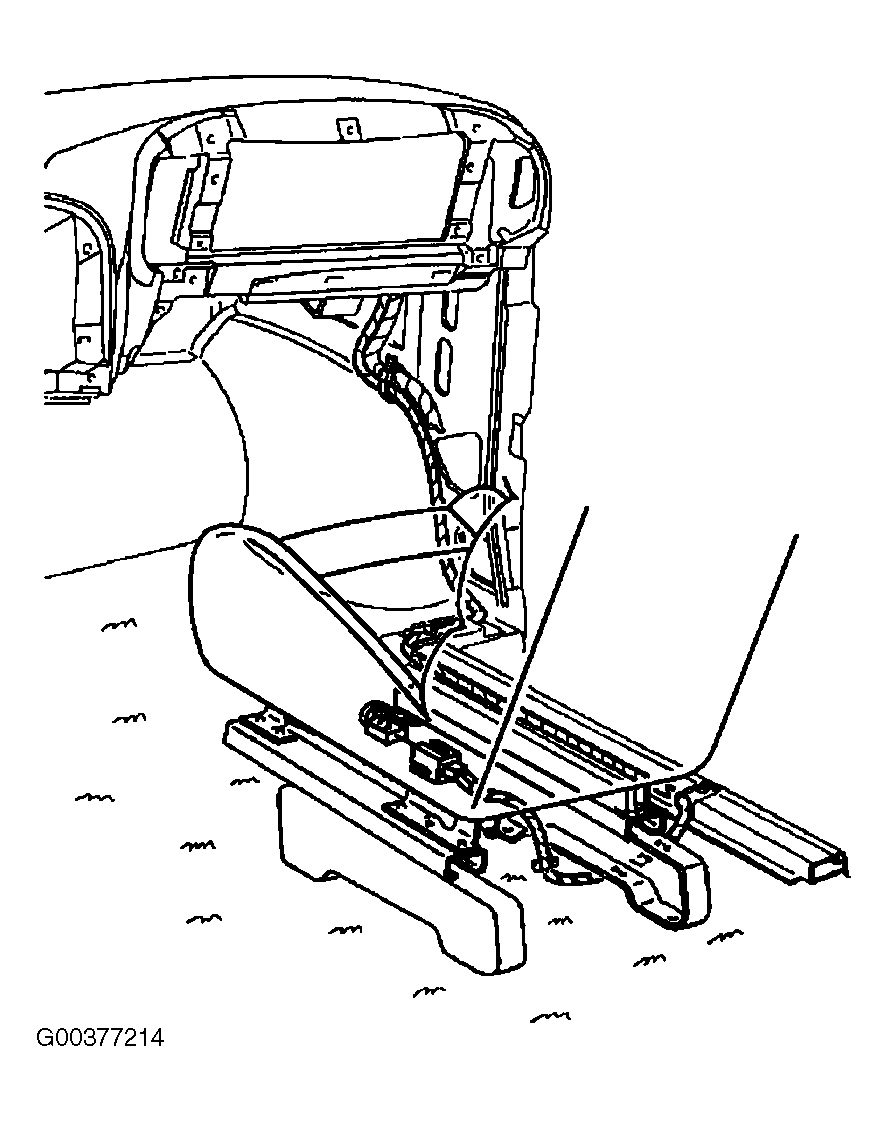

    4. Fig 2: Disconnecting/Connecting Power Seat Switch Electrical Connector
    G00377214Courtesy of GENERAL MOTORS CORP.
