Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

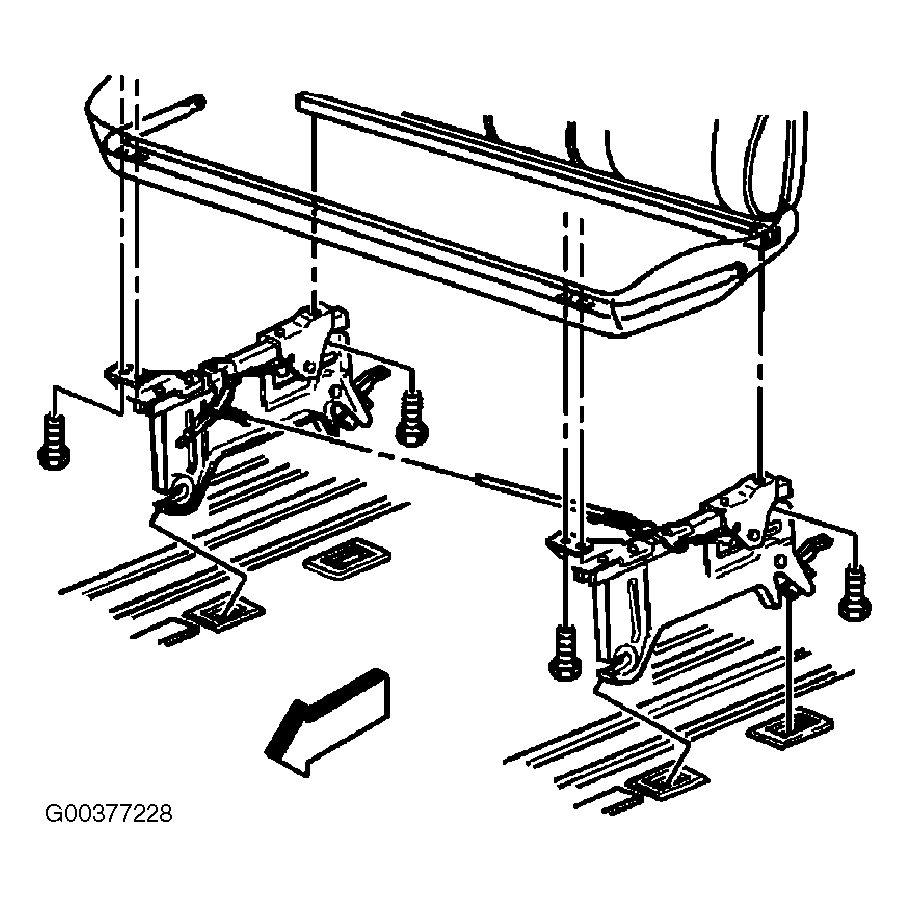

- Install the rear bench seat risers to the seat. See Figure.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the rear bench seat riser bolts to the seat.
Tighten
Tighten the rear bench seat riser bolts to the seat to 25 N.m (18 ft lbs).
- Install the front bench seat riser bolts to the seat.
Tighten
Tighten the front bench seat riser bolts to the seat to 65 N.m (47 ft lbs).
- Install the rear bench seat in the vehicle:
- Lift the rear bench seat into position.
- Lower the front hooked retainers onto the anchor pins in the floor anchor plates.
- Lower the rear bench seat latch onto their anchor pins in the anchor plates.

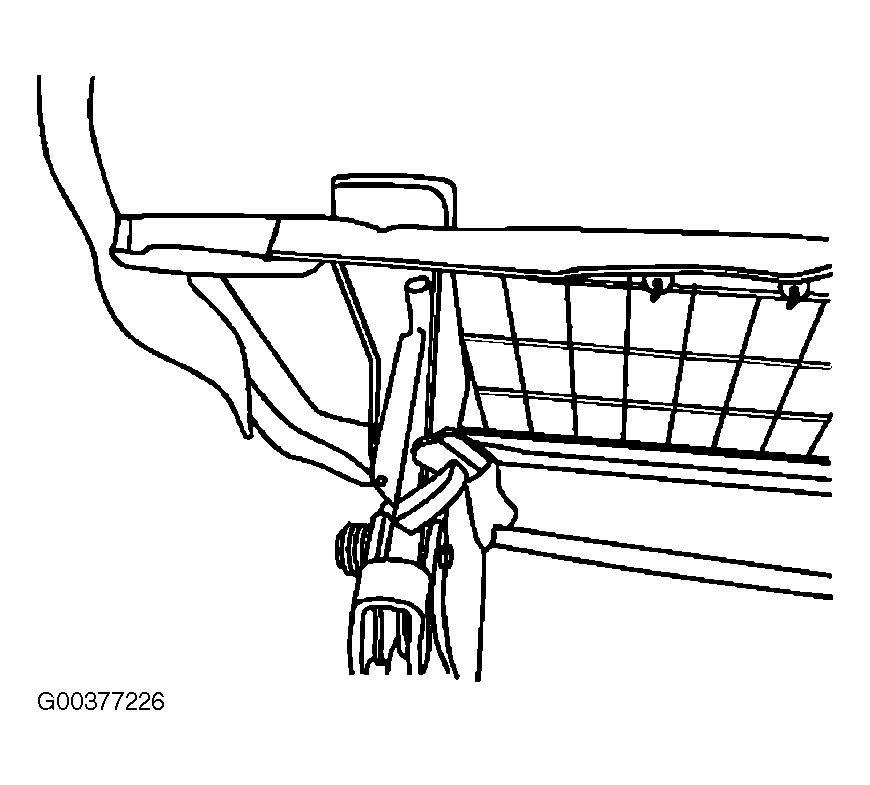

- Verify that the rear bench seat is securely latched by pulling up on the seat. See Figure.
