Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion frame to the seat back frame.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

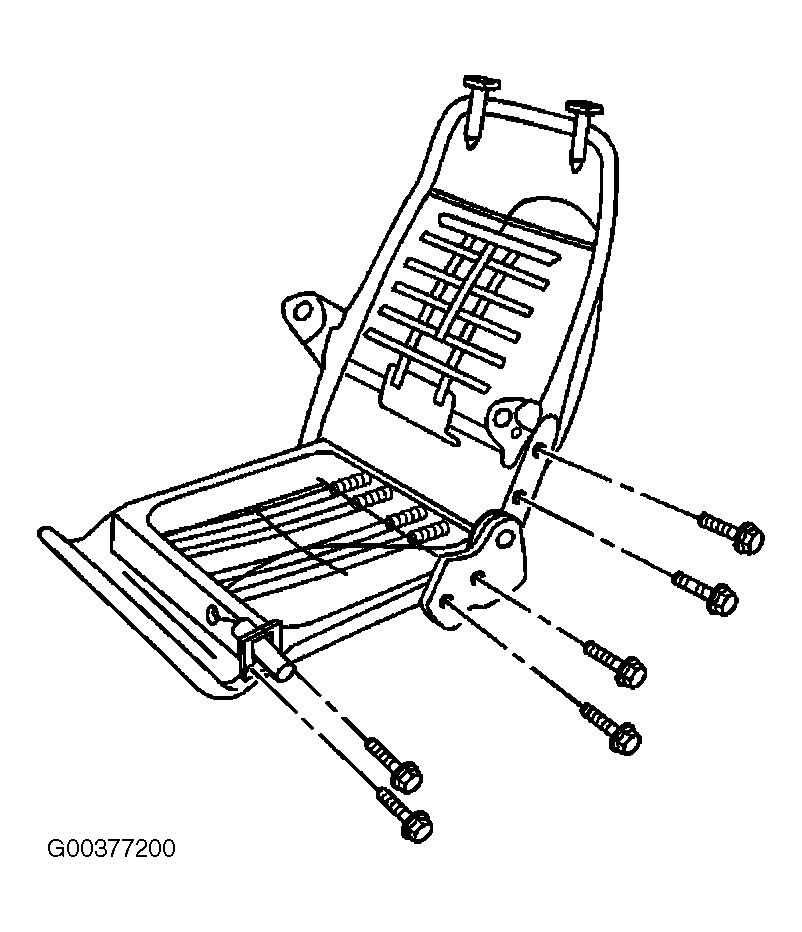

  2. Install the seat back hinge bolts to the left side of the seat frame. See Figure.

    Tighten

    Tighten the seat back hinge bolts to the left side of the seat frame to 30 N.m (22 ft lbs).

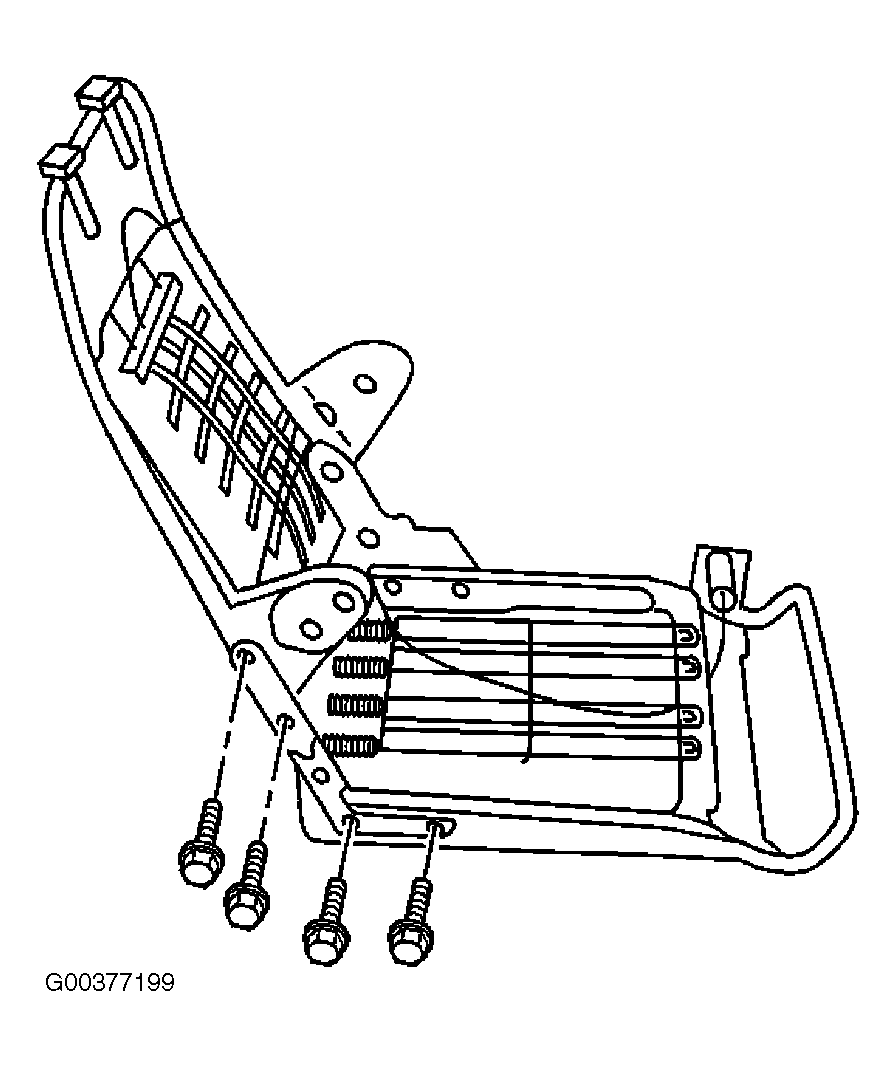

  3. Install the bolts to the right side of the seat frame. See Figure.

    Tighten

    Tighten the seat back hinge bolts to the right side of the seat frame to 30 N.m (22 ft lbs).

  4. Install the lumbar support cable. Refer to Lumbar Support Cable Replacement .
  5. Install the seat cushion cover and pad . Refer to Seat Cushion Cover Replacement - Front (YC5 and YC6)  or Seat Cushion Cover Replacement - Front (YC7)  .
  6. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
