Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bench seat from the vehicle. Refer to Seat Replacement - Rear Bench (2001)  or Seat Replacement - Rear Bench (2002)  .
  2. Unzip the seat back cover. See Fig 1.
    3. Fig 1: Unzipping/Zipping Seat Back Cover
    G00377204Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat back cushion cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear (YC5 and YC6)  or Seat Back Cover and Pad Replacement - Rear (YC7)  .
  4. Remove the seat back cable end from the seat back latch. See Fig 2.

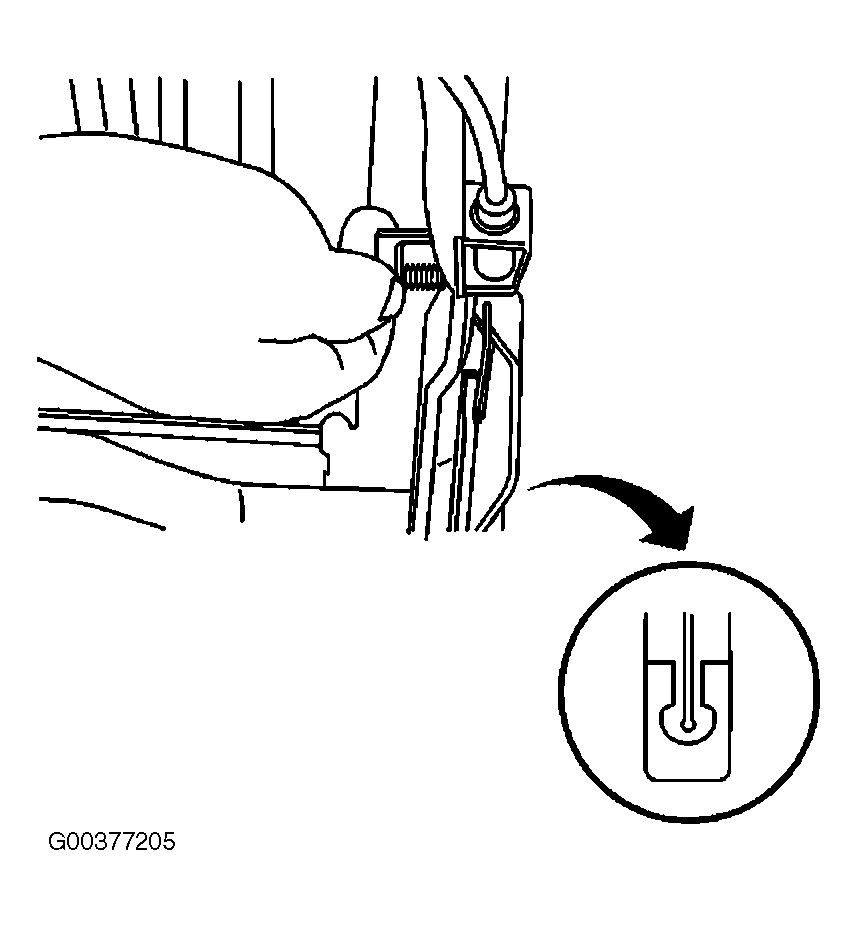

    5. Fig 2: Removing/Installing Seat Back Cable End
    G00377205Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back latch release cable from the clips that retains the cable to the seat back frame. See Fig 3.
  6. Remove the seat back latch release cable from the seat back frame.

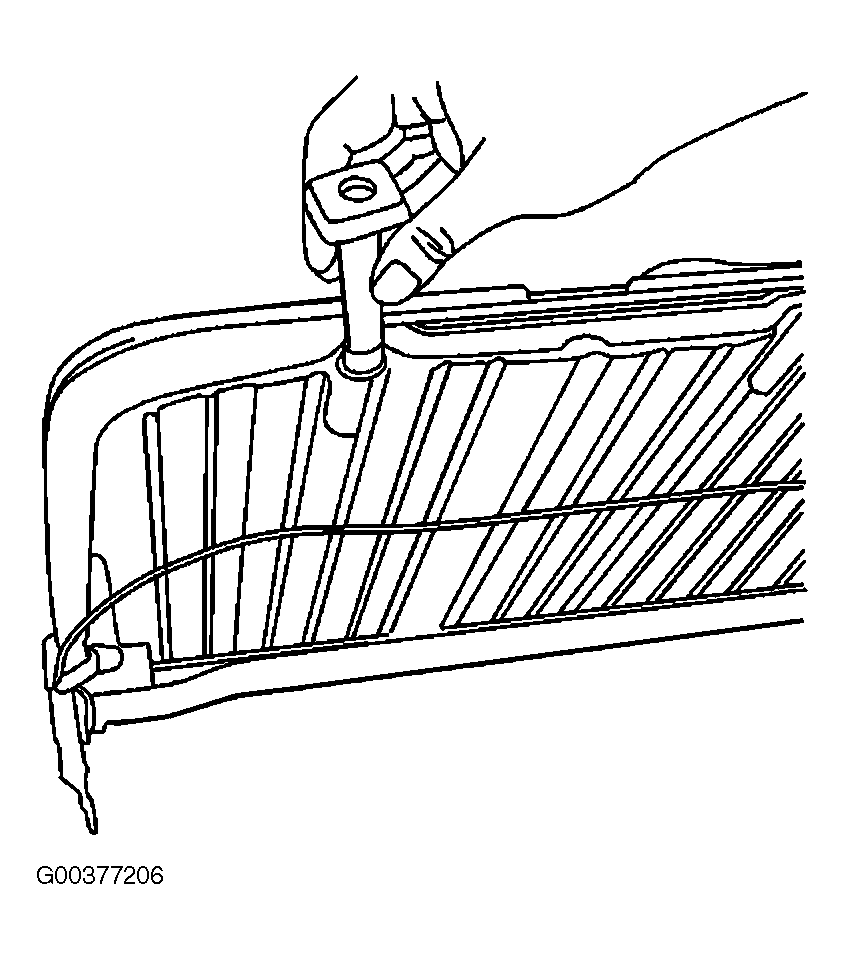

    7. Fig 3: Removing/Installing Seat Back Latch Release Cable
    G00377206Courtesy of GENERAL MOTORS CORP.
