Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

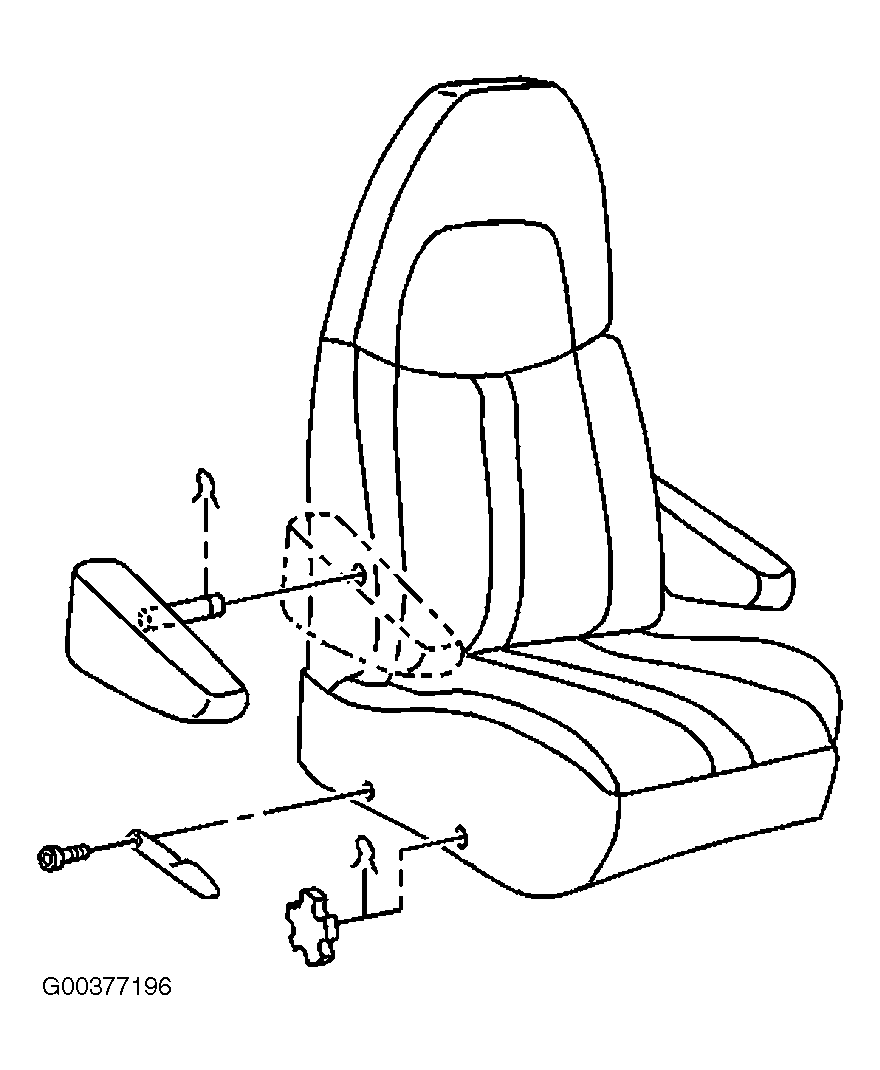

  1. Rotate the lumbar support knob while pushing in on the seat cushion cover around the knob. This will cause the clip that retains the knob to thread through to the outside of the seat cushion cover. See Figure.
  2. Remove the clip from the knob.
  3. Remove the lumbar support knob from the seat.
