Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bucket seat from the vehicle. Refer to Seat Replacement - Bucket .
  2. Remove the seat back cover and pad from the seat back frame. Refer to Seat Back Cover and Pad Replacement (YC5 and YC6)  or Seat Back Cover and Pad Replacement (YC7)  .

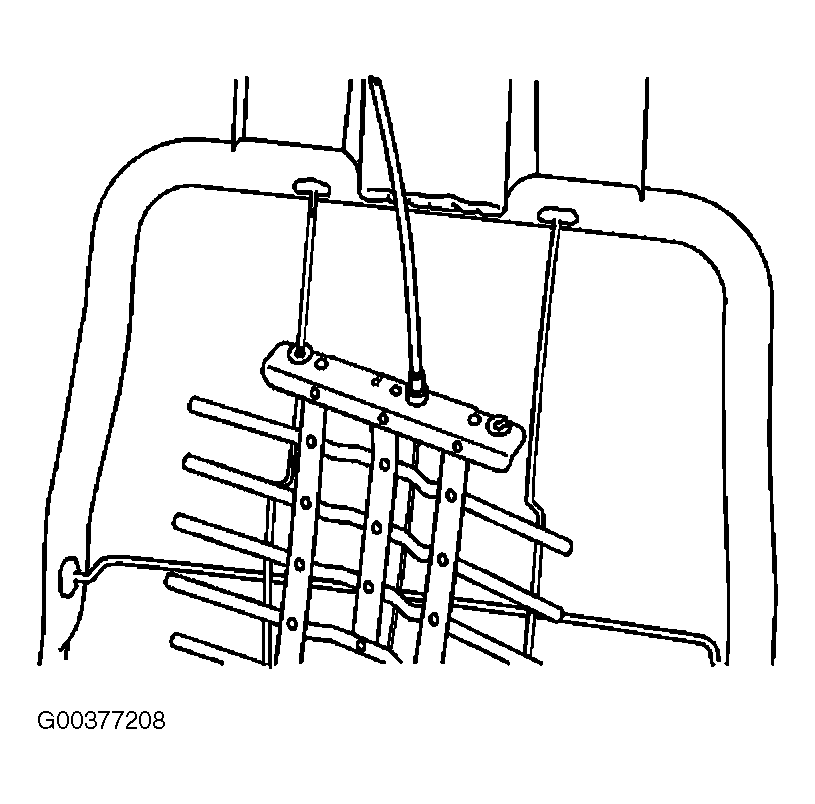

  3. Disconnect the lumbar plate cable (1) from the lumbar plate. See Figure.
  4. Pull rearward on the lumbar plate corners to release it from the seat back frame. See Figure.
  5. Remove the lumbar plate from the seat back frame. See Figure.
  6. Remove the bucket seat cushion cover and pad. Refer to Seat Cushion Cover Replacement - Front (YC5 and YC6)  or Seat Cushion Cover Replacement - Front (YC7)  .
  7. Remove the lumbar support cable clip.
  8. Remove the lumbar support cable from the side of the bucket seat cushion frame. See Fig 1.

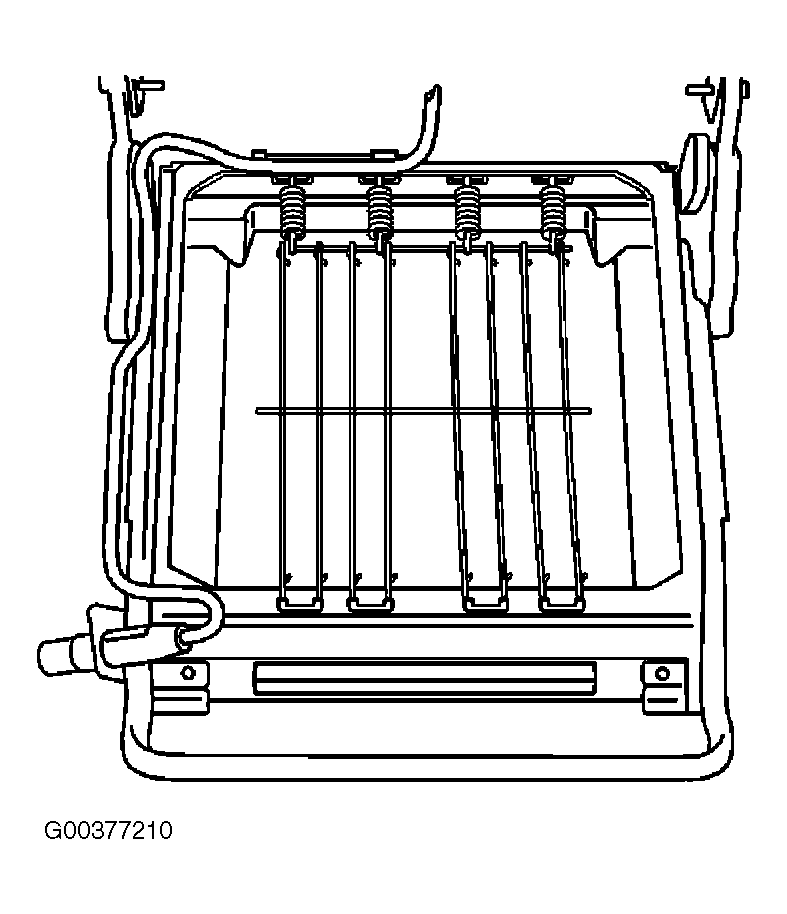

    9. Fig 1: Removing/Installing Lumbar Support Cable
    G00377210Courtesy of GENERAL MOTORS CORP.
  9. Remove the lumbar support cable and housing from the bucket seat cushion frame. See Fig 2.

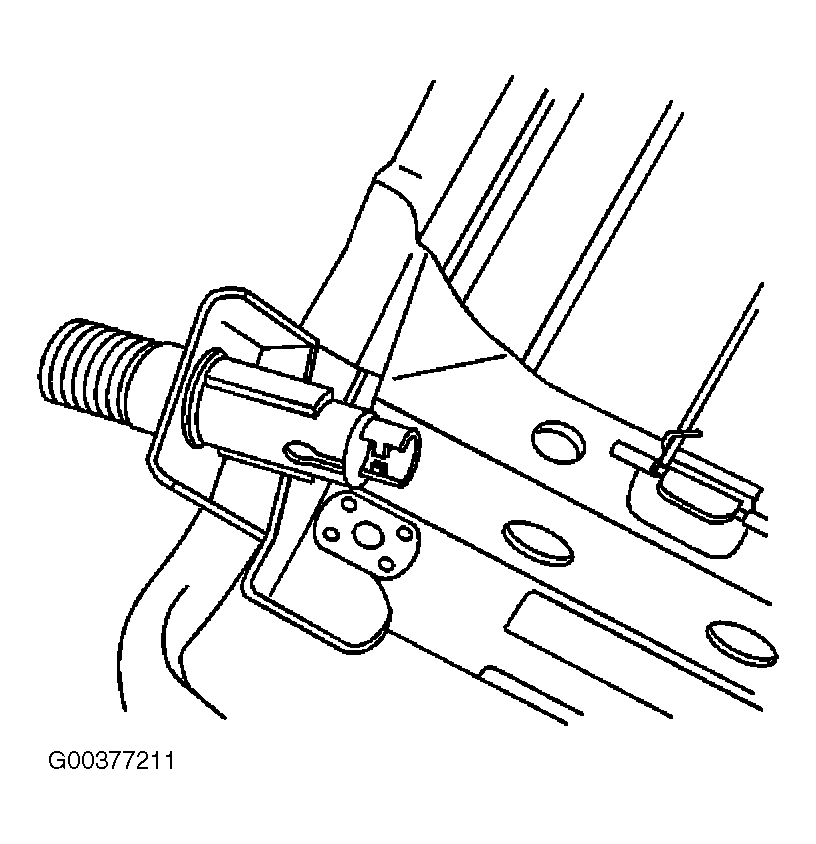

    10. Fig 2: Removing/Installing Lumbar Support Cable & Housing
    G00377211Courtesy of GENERAL MOTORS CORP.
