Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the armrest cover to the armrest, if the cover was removed.
  2. Reach inside the seat back and insert the armrest retaining clip into the seat back frame. See Figure.
    • Install the retaining clip with the opening facing down.
    • Observe the fit of the clip once installed. If the clip is loose when fitted in the groove in the seat back frame, remove the clip and crimp the clip closed slightly. Repeat this procedure until the clip fits snugly in the groove, or install a new clip.
  3. Insert the armrest into the seat back until the armrest retaining clip engages the groove on the armrest post. See Fig 1. Pull on the armrest in order to verify that the clip is holding.

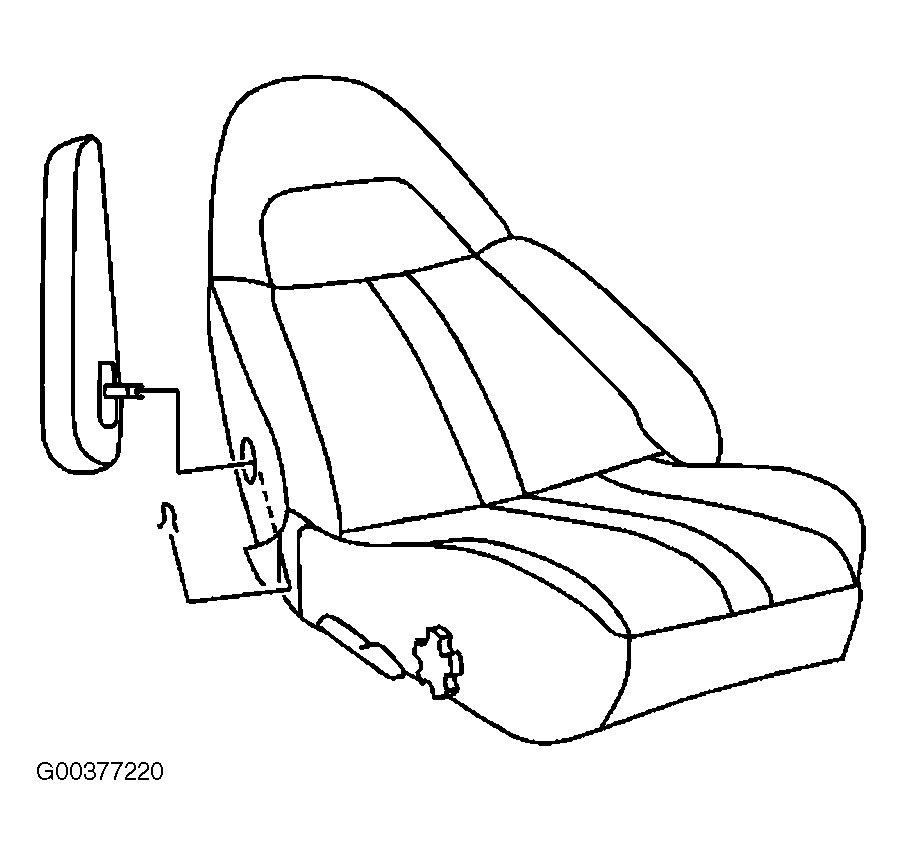

    4. Fig 1: Inserting Armrest Into Seat Back
    G00377220Courtesy of GENERAL MOTORS CORP.

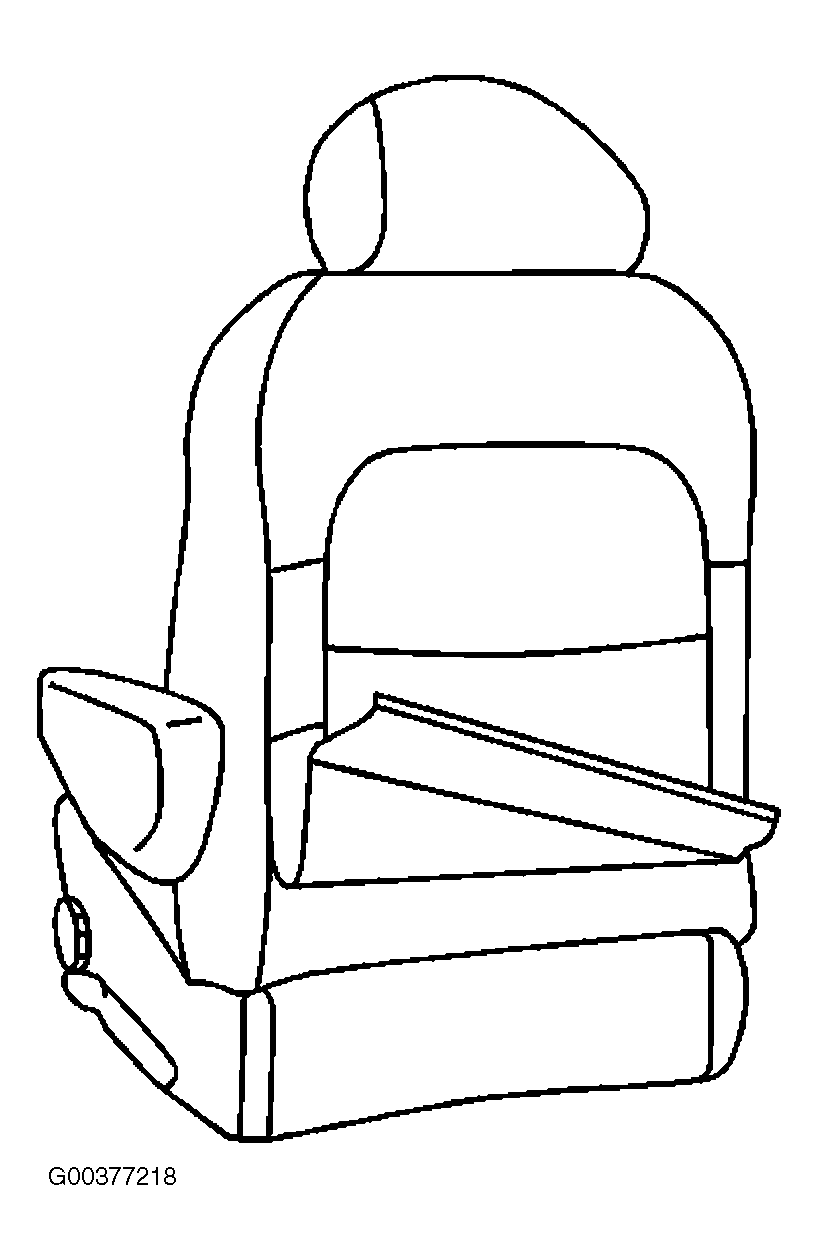

  4. Attach the halves of the J-hook along the bottom edge of the seat back. See Figure.
  5. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
