Power Seat Inoperative

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

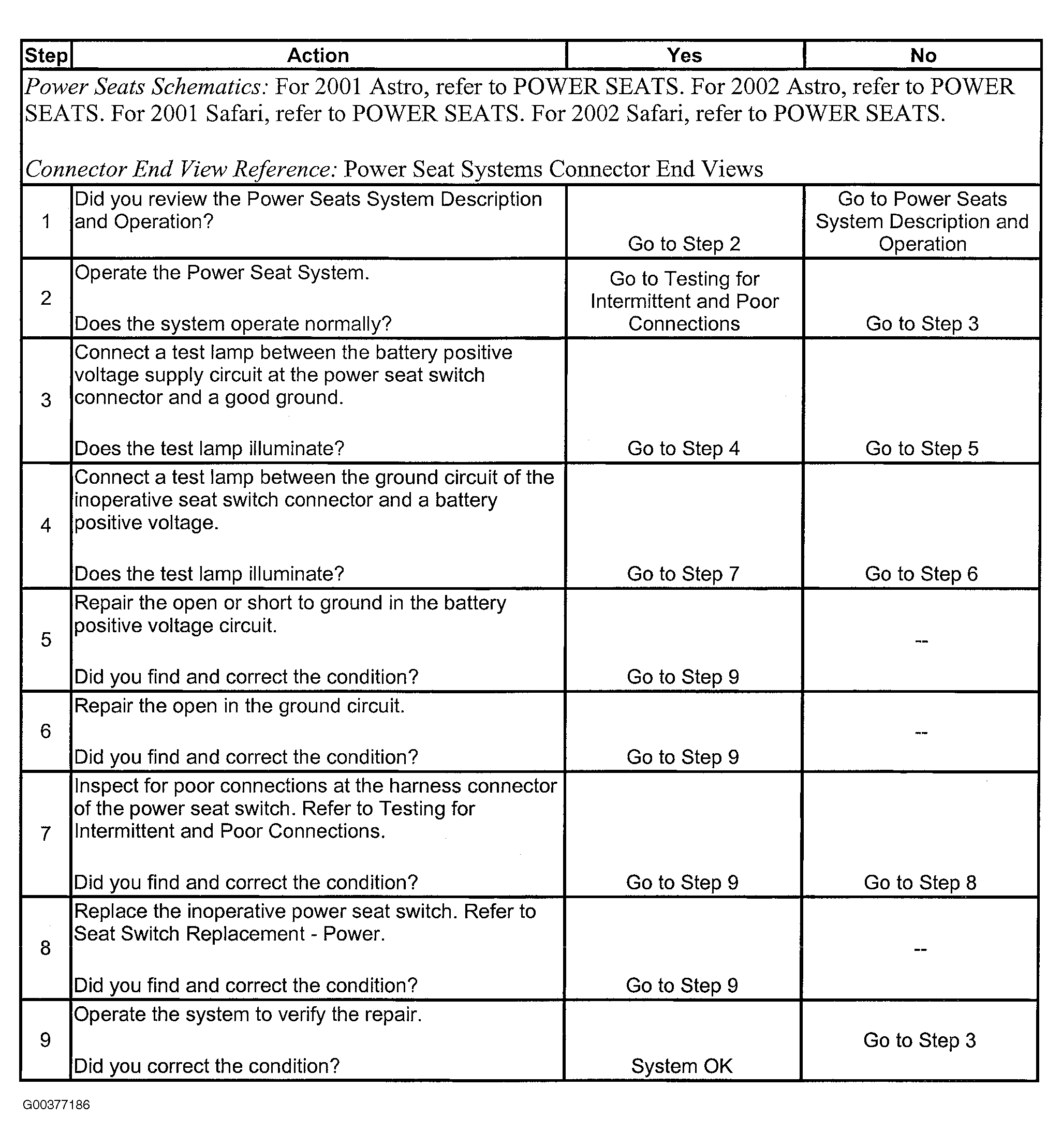

Fig 1: Power Seat Inoperative
G00377186Courtesy of GENERAL MOTORS CORP.
