Oil Cooler Lines: Installation

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 GMC Sierra, 2004 Chevrolet Tahoe, and 2004 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission oil cooler lines to the vehicle.

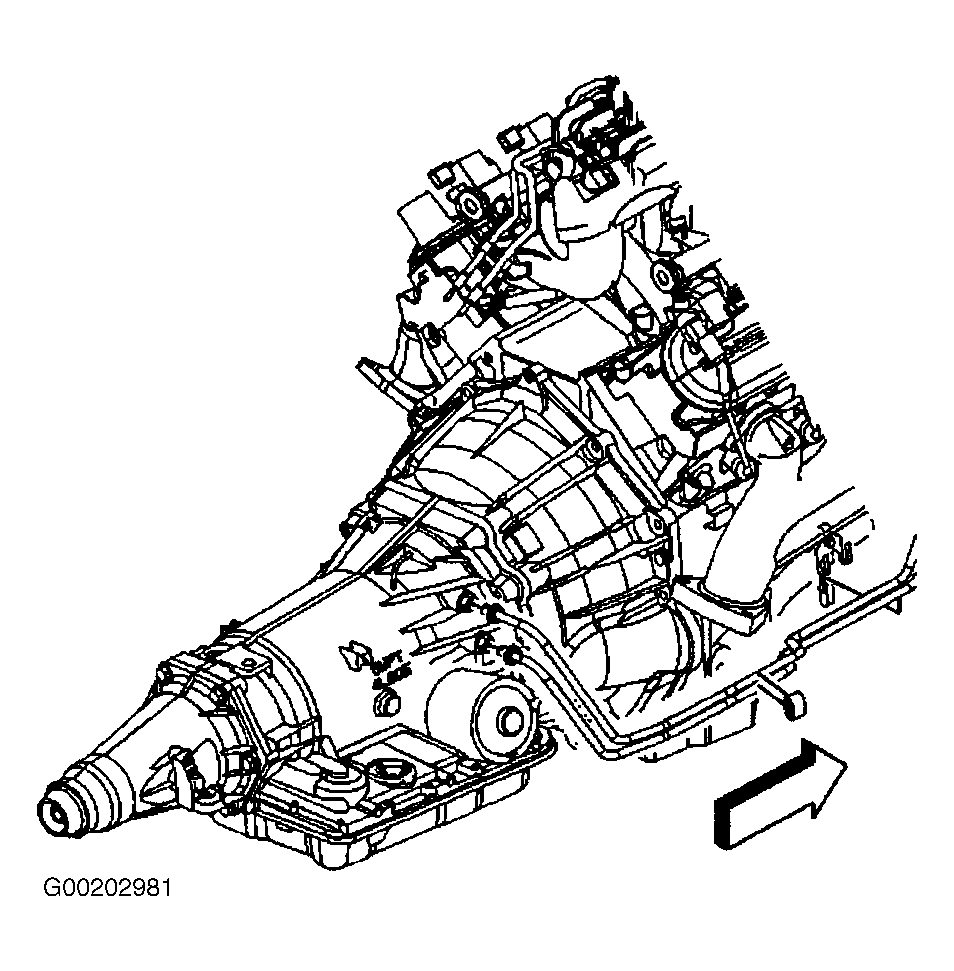

  2. Install the cooling lines to the transmission. See Figure . See OIL COOLER LINE QUICK CONNECT FITTING  .
  3. Install the engine protection shield.
  4. Lower the vehicle.
  5. Install the transmission fluid cooler hose to the radiator. See Figure . See OIL COOLER LINE QUICK CONNECT FITTING  .
  6. Install the transmission fluid cooler hose to the Auxiliary oil cooler. See OIL COOLER LINE QUICK CONNECT FITTING  .
  7. Install the front grill assembly.
