Filler Tube & Seal: Installation

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 GMC Sierra, 2004 Chevrolet Tahoe, and 2004 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW seal to the indicator tube.
  2. Install the oil level indicator tube.

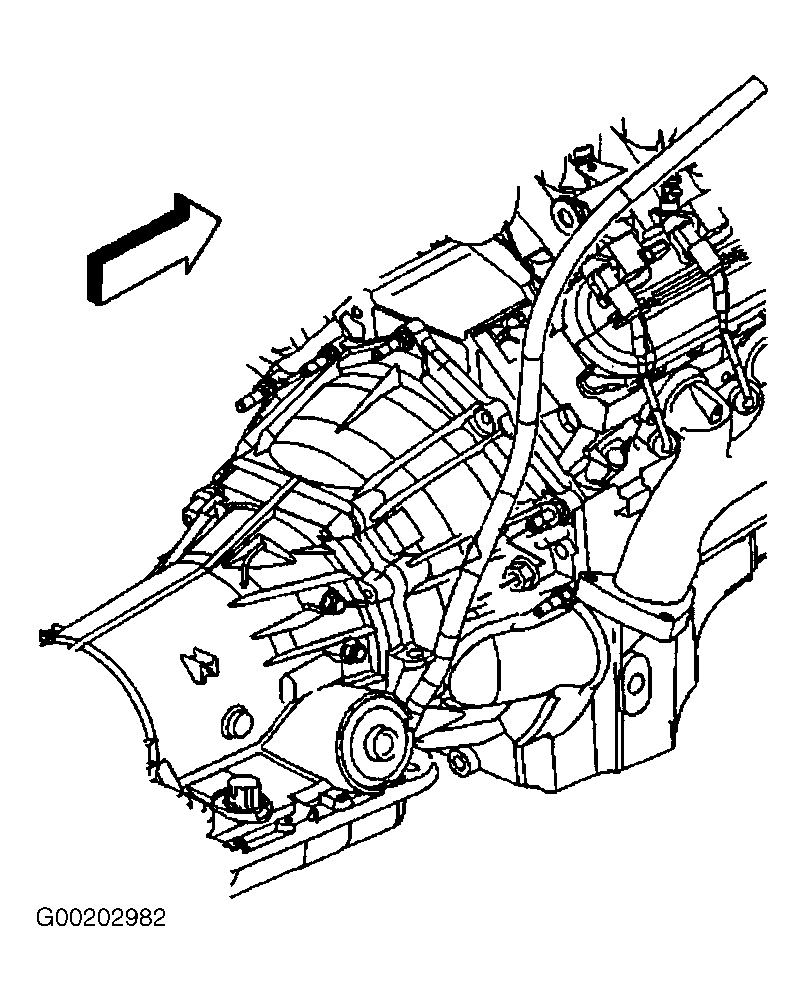

  3. Install the indicator tube nut. See Figure . Tighten nut to specification. See TORQUE SPECIFICATIONS  .
  4. Remove the plugs from the transmission oil cooler line fittings. See Figure .
  5. Connect the transmission oil cooler lines.
  6. Install the exhaust pipe hanger bracket and bolts. See Figure . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
  7. Instal the insulator and nuts to the bracket. Tighten nuts to specification. See TORQUE SPECIFICATIONS  .

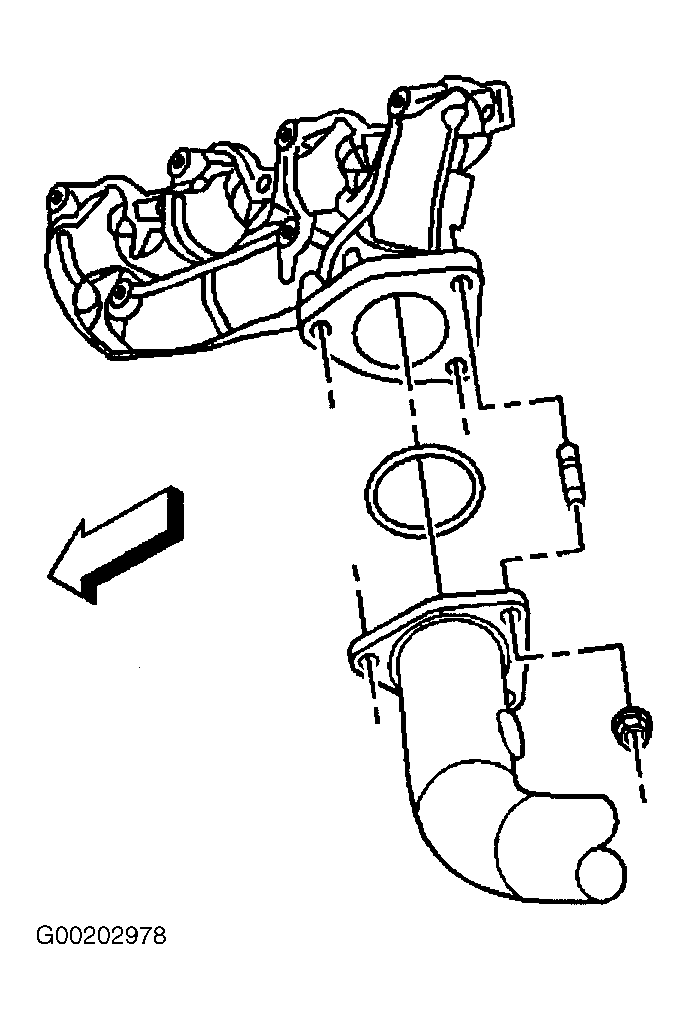

  8. Tighten the right exhaust pipe nuts. See Figure . Tighten nuts to specification. See TORQUE SPECIFICATIONS  .
  9. Tighten the left exhaust pipe nuts. See Figure . Tighten nuts to specification. See TORQUE SPECIFICATIONS  .

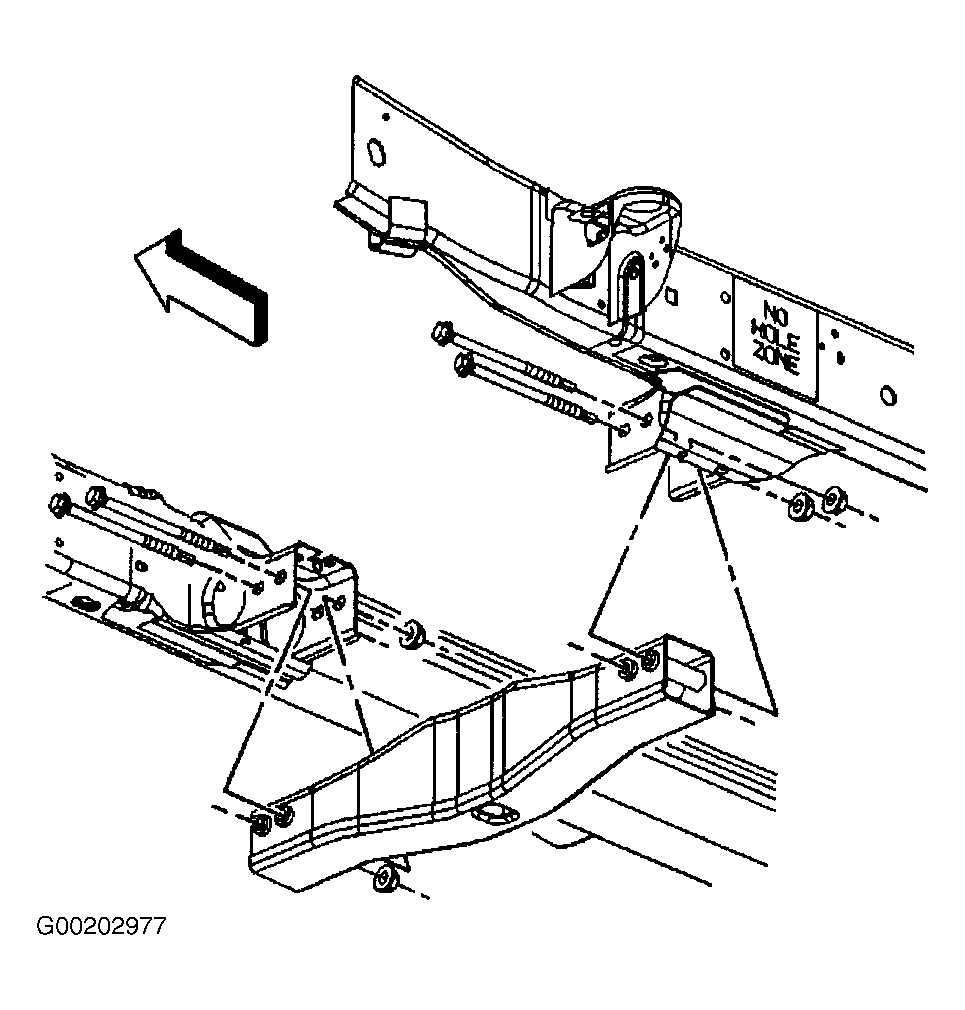

  10. Install the transmission crossmember. See Figure .
  11. Install the transmission crossmember bolts/nuts. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS  .

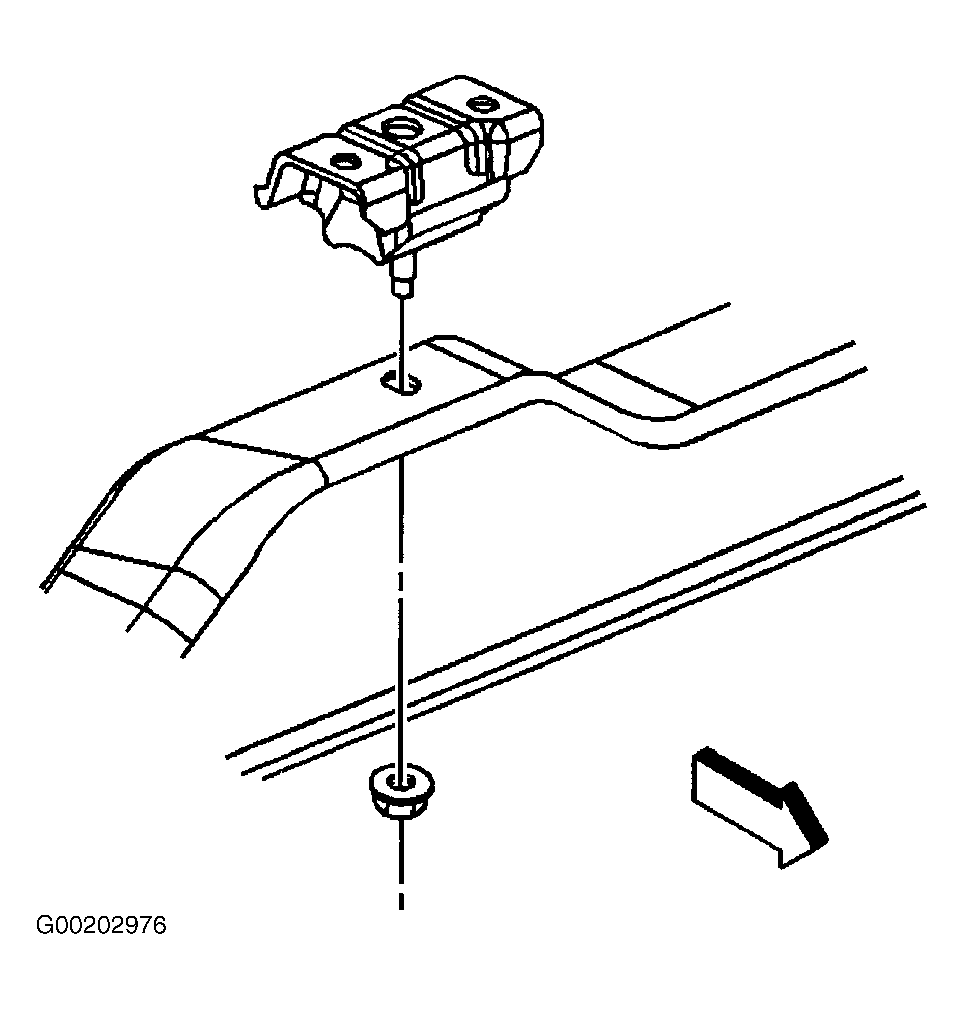

  12. Install the transmission mount nut. See Figure . Tighten nut to specification. See TORQUE SPECIFICATIONS  .
  13. Remove the support from the transmission.
  14. Lower the vehicle.
  15. Install the transmission oil level indicator.
  16. Fill transmission to proper level with appropriate fluid. See LUBRICATION  .
