Auxiliary Oil Cooler: Installation

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 GMC Sierra, 2004 Chevrolet Tahoe, and 2004 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary oil cooler to the vehicle.

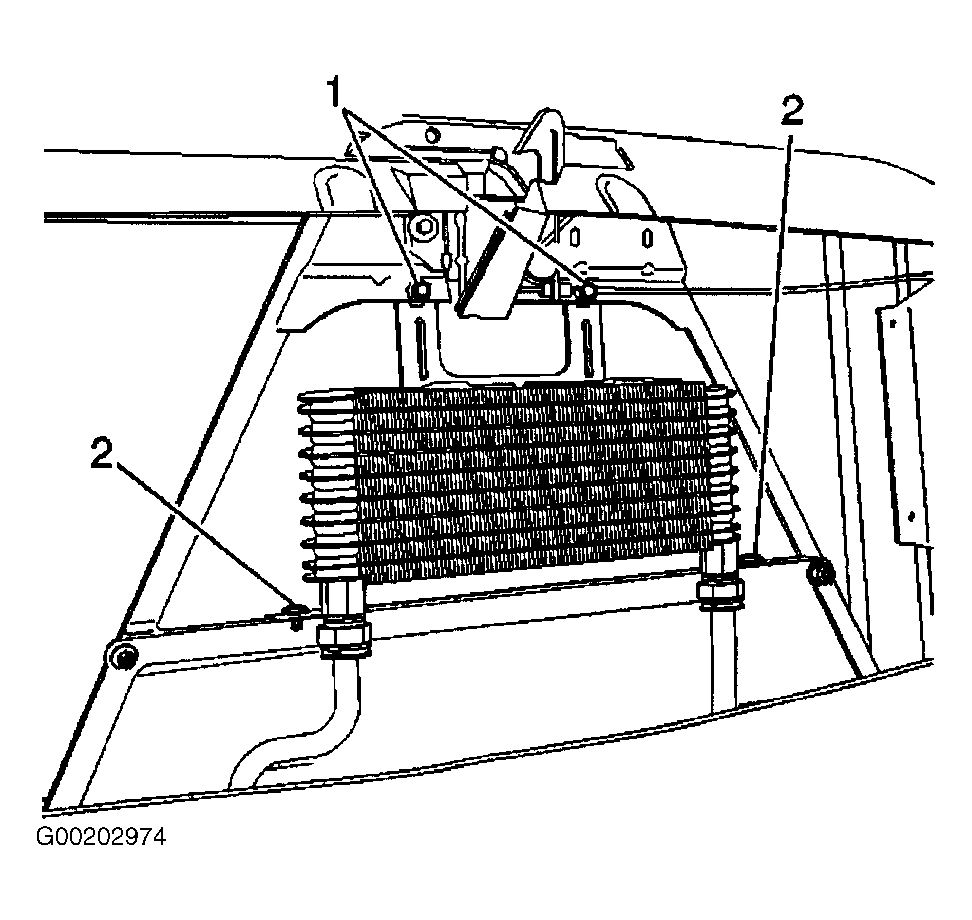

  2. Install the bolts (1) and the push pins (2) that retain the auxiliary oil cooler to the radiator brace. See Figure . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Connect the transmission oil cooler lines to the auxiliary cooler.
  4. Install the front grill assembly.
