Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear sunroof drain hose to the vehicle.
  2. Install the rear sunroof drain hose to the drain tube at the base of the rear pillar.

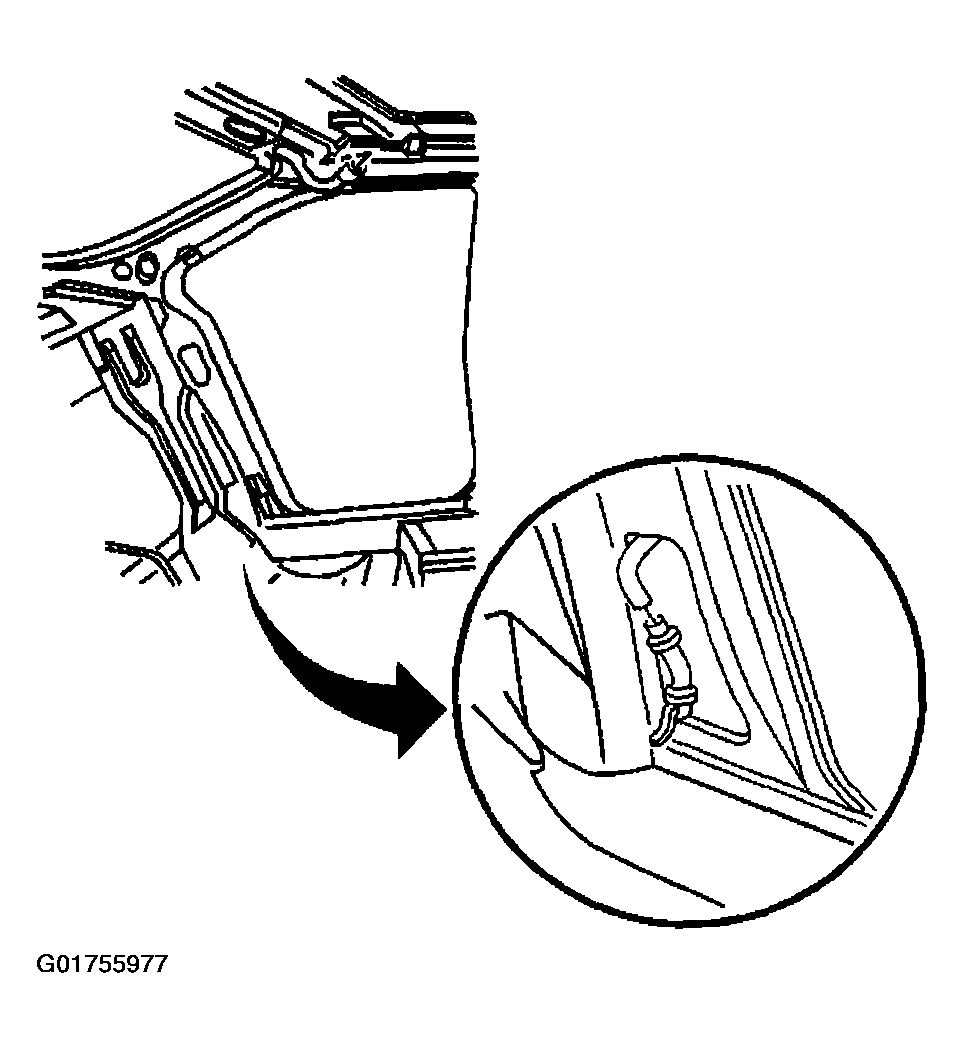

    3. Fig 1: Identifying Lower Portion Of Rear Sunroof Drain Hose
    G01755977Courtesy of GENERAL MOTORS CORP.
  3. Install the sunroof drain hose to the rear pillar.
  4. Press the rear sunroof drain hose onto the sunroof rear drain spigot

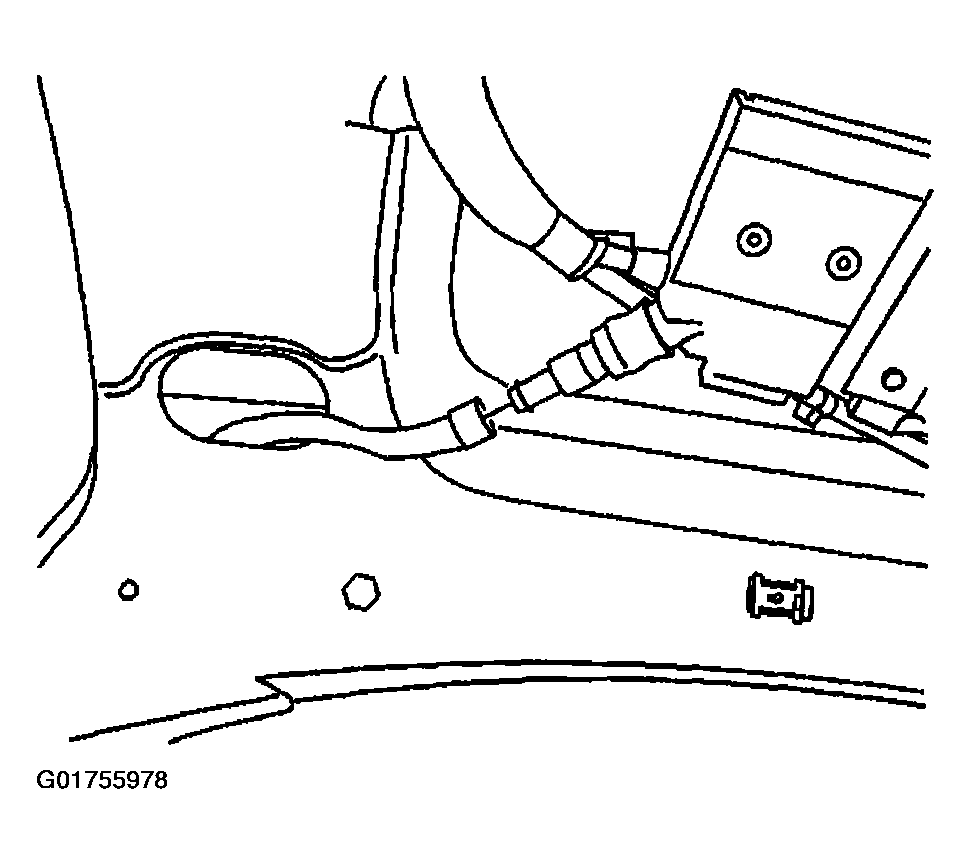

    5. Fig 2: Identifying Upper Portion Of Rear Sunroof Drain Hose
    G01755978Courtesy of GENERAL MOTORS CORP.
  5. Make certain that the rear drain hoses are properly routed in the metal roof slot and are taped in place.
  6. Install the headliner. Refer to HEADLINER REPLACEMENT .
  7. Install the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER .
  8. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
  9. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
