Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the front floor console armrest.
  2. Remove the screws from the front floor console armrest hinge at the front floor console armrest.

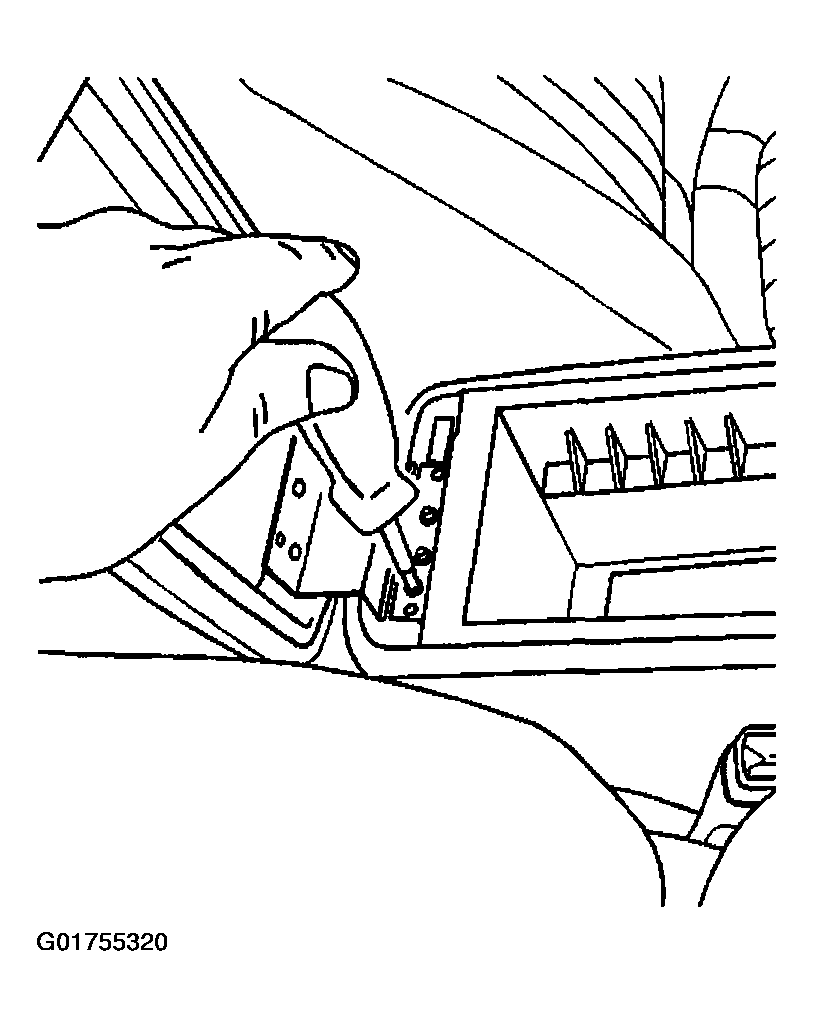

    Fig 1: Identifying Front Floor Console Armrest Hinge Screws
    G01755320Courtesy of GENERAL MOTORS CORP.
  3. Remove the front floor console armrest from the front floor console.

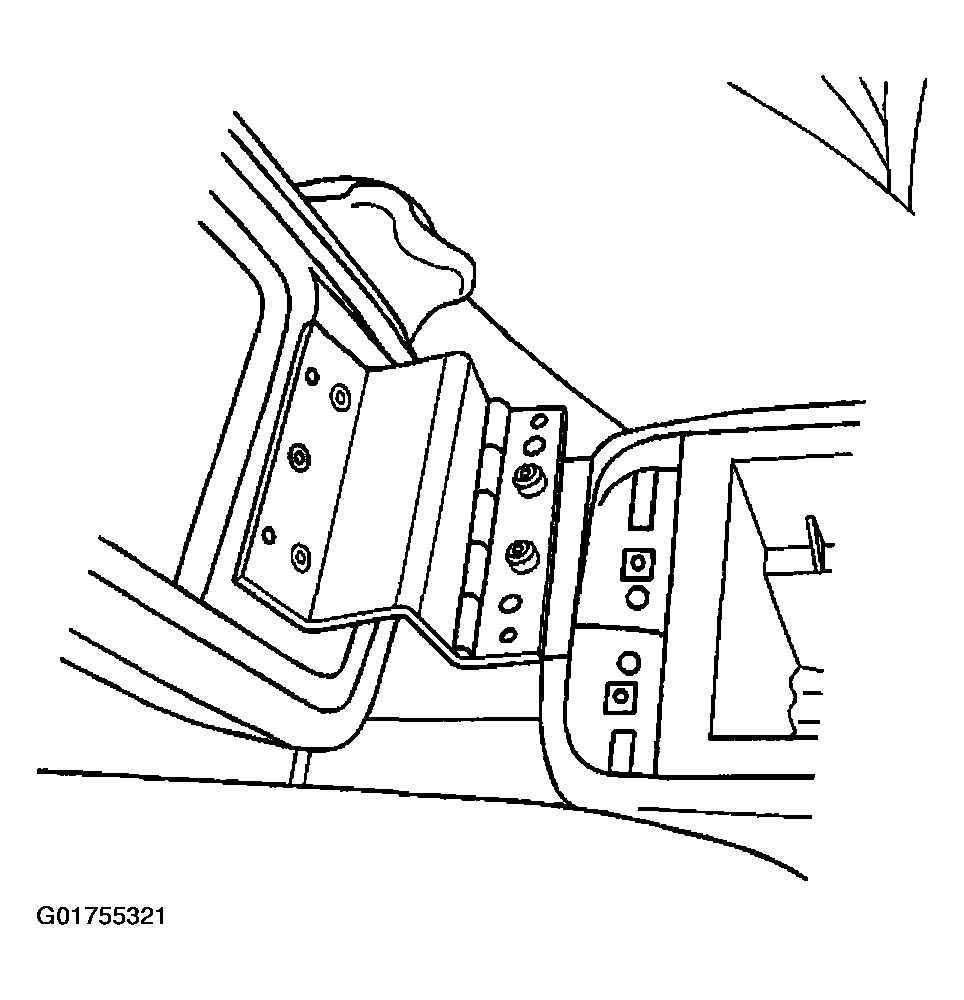

    Fig 2: Removing Front Floor Console Armrest
    G01755321Courtesy of GENERAL MOTORS CORP.
