Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the floor console to the vehicle.
  2. Connect the electrical connectors to the floor console.

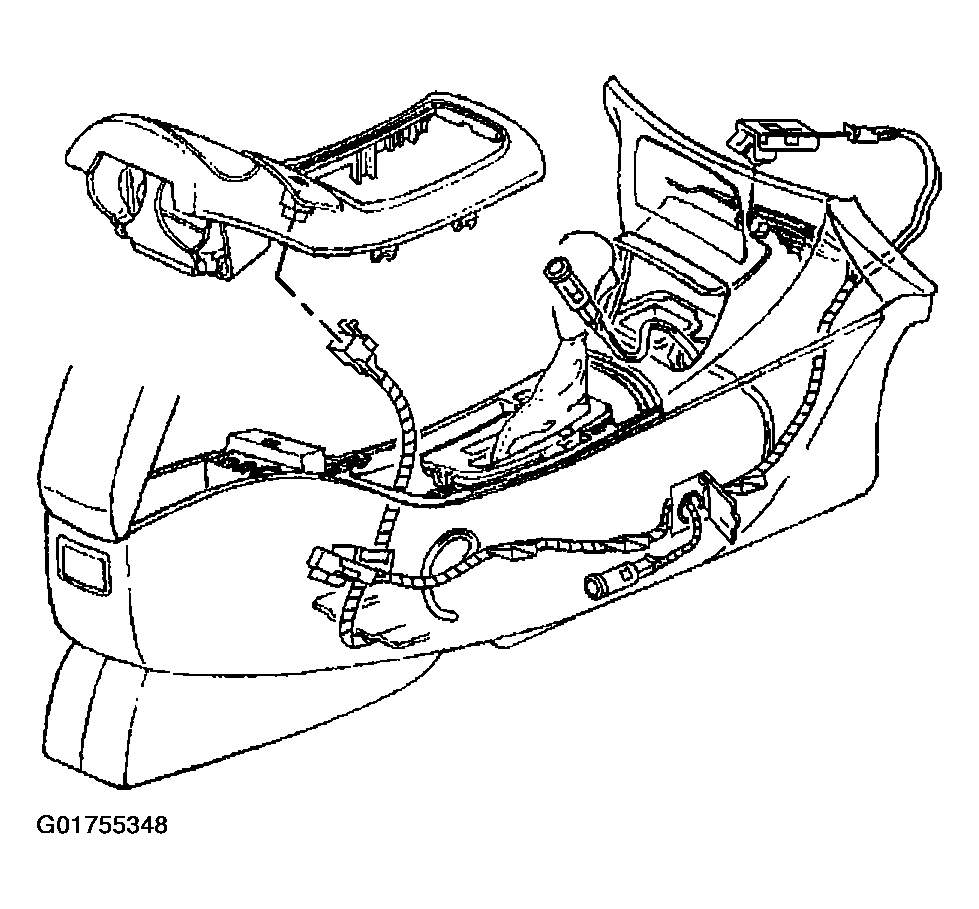

    Fig 1: Identifying Floor Console Wiring Harness
    G01755348Courtesy of GENERAL MOTORS CORP.
  3. Align the floor console over the transaxle shifter and position the floor console retainers to the I/P.

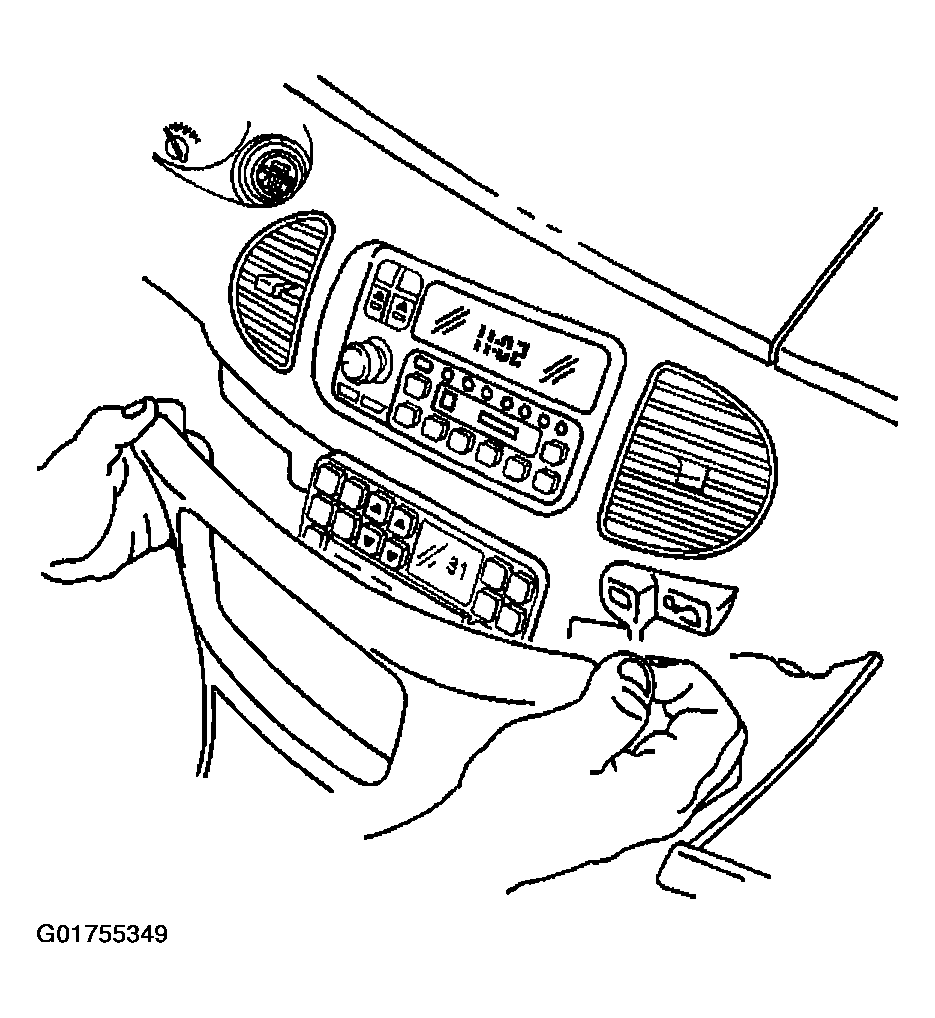

    Fig 2: Aligning Floor Console Over Transaxle Shifter
    G01755349Courtesy of GENERAL MOTORS CORP.
  4. Push the floor console forward into the retainers in the I/P until fully seated.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the floor console horizontal bolts near the I/P. Tighten the floor console horizontal bolts to 5 N.m (44 lb in).

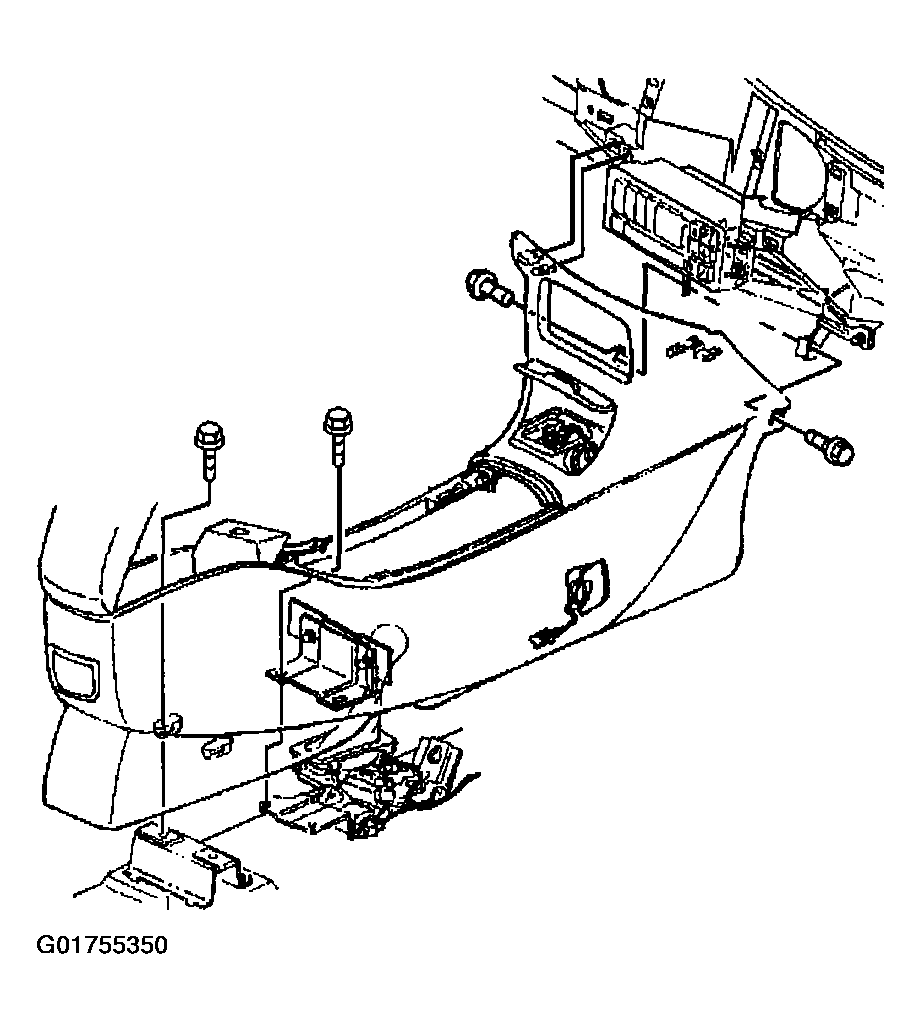

    Fig 3: Identifying Front Floor Console Bolts
    G01755350Courtesy of GENERAL MOTORS CORP.
  6. Install the floor console bracket bolts at the rear of the transaxle shifter lever. Tighten the floor console bracket bolts to 5 N.m (44 lb in).

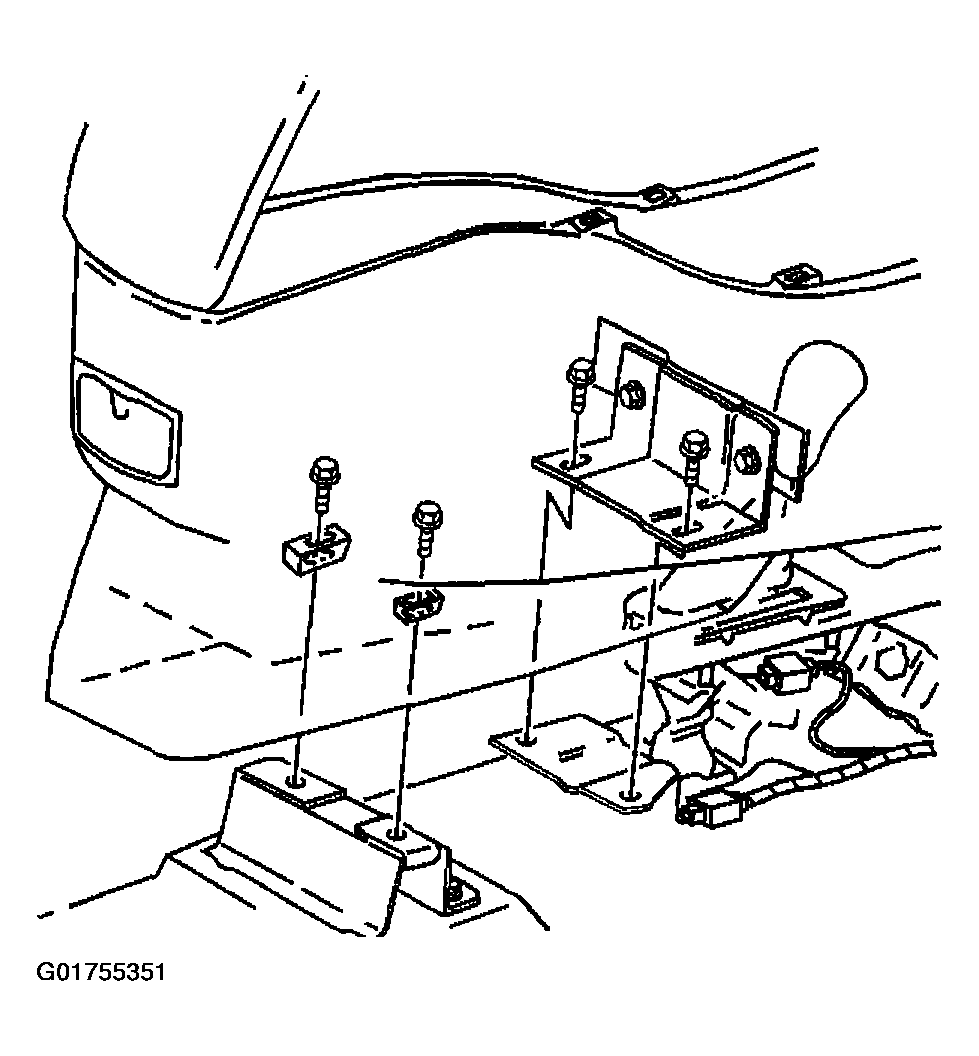

    Fig 4: Identifying Floor Console Rear Compartment & Bracket Bolts
    G01755351Courtesy of GENERAL MOTORS CORP.
  7. Install the floor console rear compartment bolts. Tighten the floor console rear compartment bolts to 5 N.m (44 lb in).
  8. Install the floor console rear compartment mat.

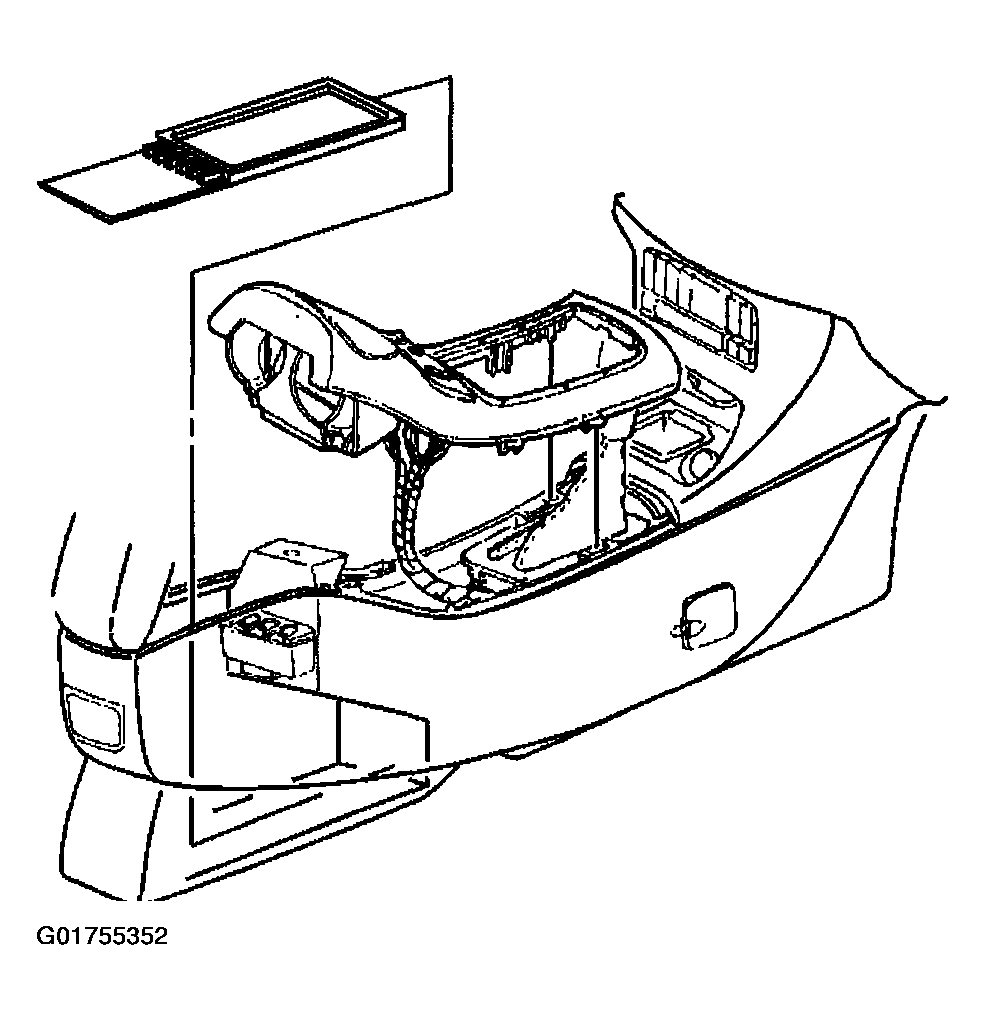

    9. Fig 5: Identifying Floor Console Rear Compartment Mat
    G01755352Courtesy of GENERAL MOTORS CORP.
  9. Install the floor console trim plate. Refer to Trim Plate Replacement - Console Front .
  10. Install the floor console power accessory port. Refer to Power Accessory Port Replace - Front Floor Console (D55)  or Power Accessory Port Replace - Front Floor Console (D06)  .
  11. Install the floor console lighter. Refer to Cigar Lighter Replacement - Console .
  12. Reposition the transaxle shift lever to the PARK position.
  13. Release the parking brake.
