Installation (1500 Series With 4-Wheel Steering)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park brake actuator lever housing to the backing plate.
  2. Install the park brake shoe.
  3. Install the wheel bearing. See REAR WHEEL HUB ASSEMBLY under REMOVAL & INSTALLATION in the 9.75" RING GEAR - QUADRASTEER article in DRIVELINE/AXLES.
  4. Adjust the park brake shoe. See PARK BRAKE ADJUSTMENT  under ADJUSTMENTS & INSPECTION.

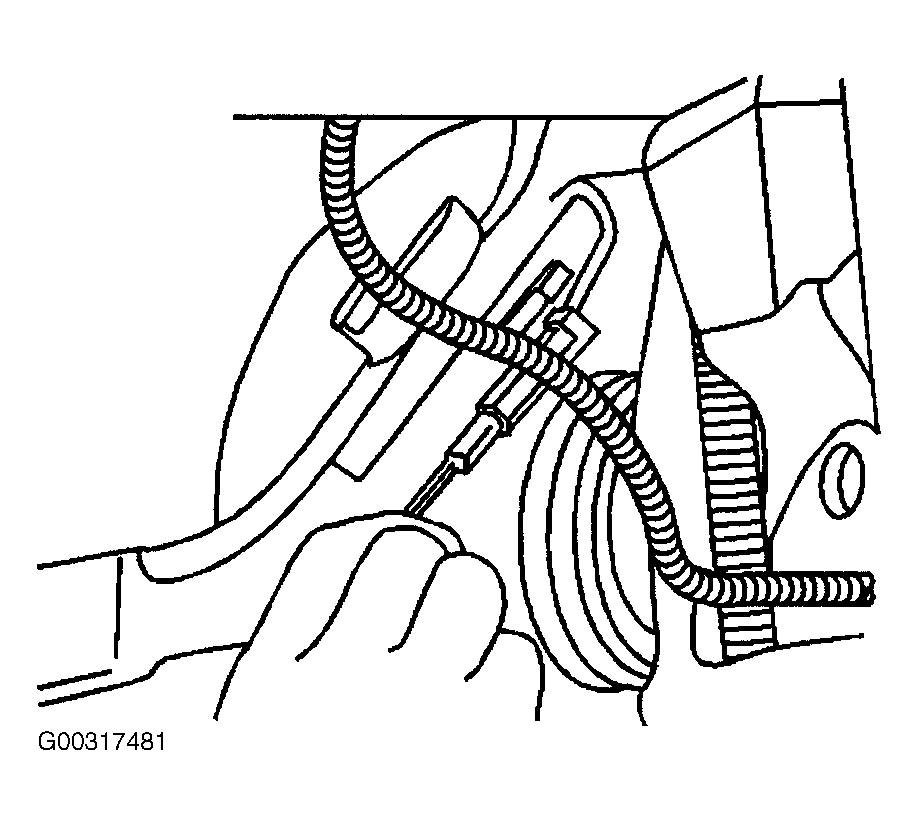

  5. Install the park brake cable to the park brake actuator lever. See Figure.

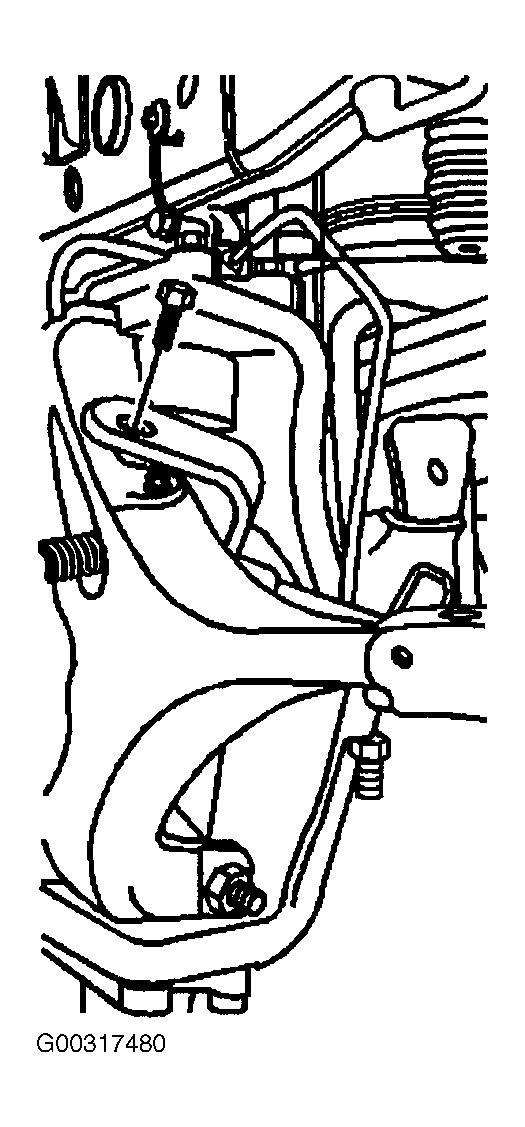

  6. Install the rear park brake bracket bolt. See Figure. Tighten the bolt to specification. See TORQUE SPECIFICATIONS .

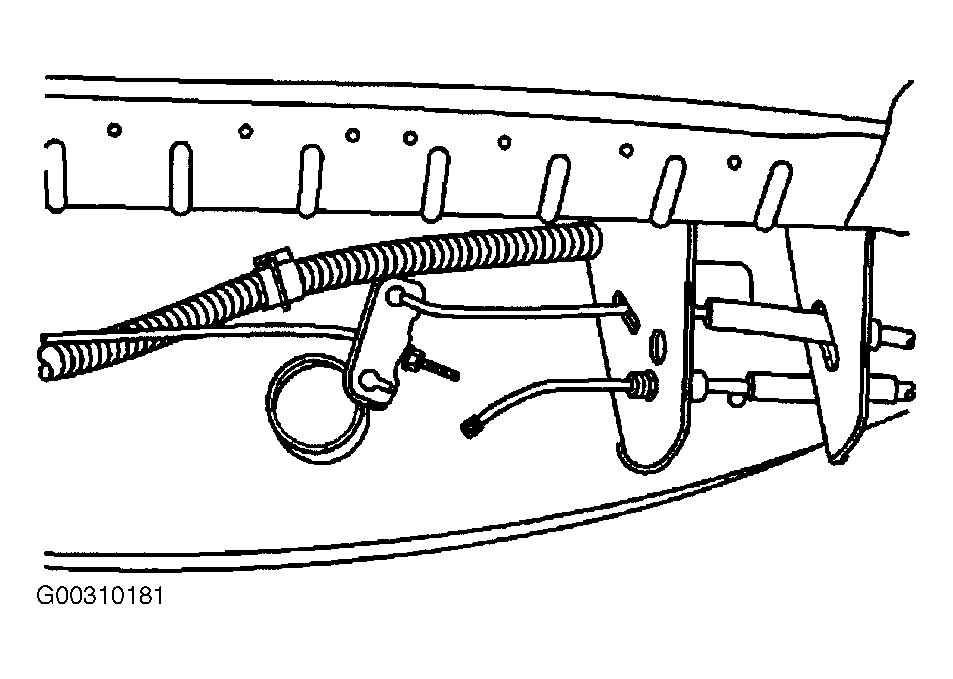

  7. Install the park brake cable to the equalizer bar. See Figure.
  8. Install the tire and wheel assembly. Tighten to specification. See TORQUE SPECIFICATIONS .
  9. Lower the vehicle.
