Park Brake Pedal Assembly: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the front park brake cable to the park brake lever.
  2. Install the park brake lever.
  3. Install the MID-Bussed Electrical Center bracket.
  4. Install the park brake lever mounting nuts. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  5. Raise the vehicle.
  6. Support the vehicle with safety stands.
  7. Install the rear cables to the equalizer by pulling down on the intermediate cable and install the rear cables to the equalizer bar. See Figure.
  8. Remove the safety stands.
  9. Lower the vehicle.

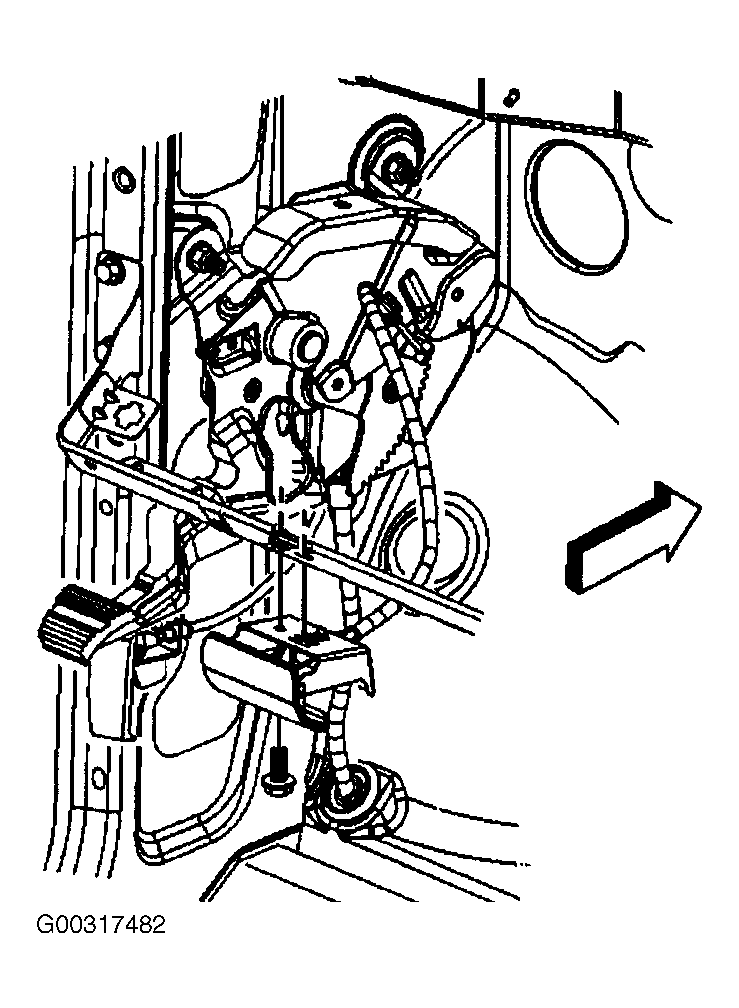

  10. Connect the park brake release cable to the park brake lever. See Figure.
  11. Connect the park brake warning lamp connector.
  12. Install the left side hinge pillar panel.
  13. Install the left side kick panel.
  14. Connect the negative battery cable.
