Installation (Left Rear - Without 4-Wheel Steering)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the cable taking care to correctly route the cable through the guides and the body mounts. See Figure.
On 1500 series utilities, install the cable to the backing plate by pressing the cable into place until locking tabs snap into place.
Install the cable to the lever.
Install the cable taking care to correctly route the cable through the guides and the body mounts. See Figure.
On all models except 1500 series utilities, install the cable to the backing plate by pressing the cable into place until locking tabs snap into place.
Install the cable to the lever.

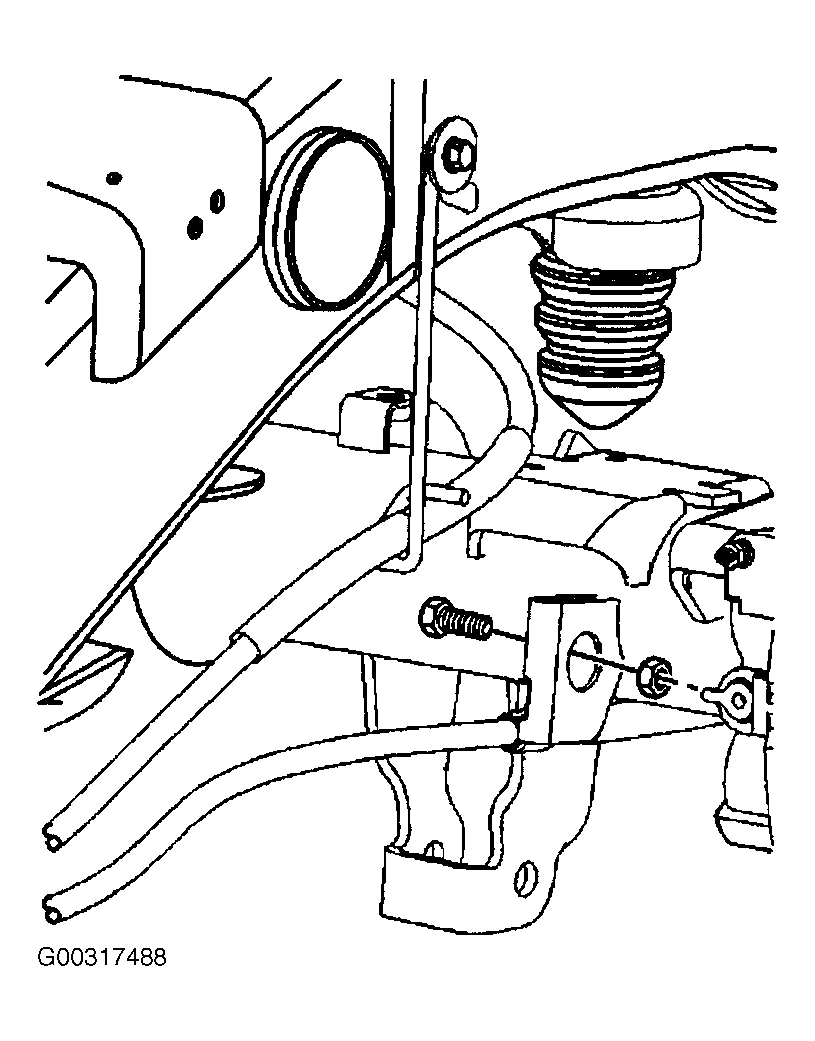

Install the cable at the shock absorber bracket and install the bolt. See Figure. Tighten the bolt to specification. See TORQUE SPECIFICATIONS .
Install the cable to the mounting bracket until the locking tabs snap into place. See Figure.
On all vehicles, connect cable end to the equalizer.
Tighten the nut to the intermediate cable at the equalizer. See Figure. Tighten the nut to specification. See TORQUE SPECIFICATIONS .
Remove the safety stands.
Lower the vehicle.
Adjust the park brake cable. See PARK BRAKE ADJUSTMENT under ADJUSTMENTS & INSPECTION.
