Master Cylinder Reservoir: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the reservoir for cracks or deformation. If found, replace the reservoir. See Figure.
- Clean the reservoir with denatured alcohol, or equivalent.
- Dry the reservoir with non-lubricated, filtered air.
- Lubricate the NEW seals and the outer surface area of the reservoir-to-housing barrels with Delco Supreme 11®, (GM P/N 12377967) or equivalent DOT-3 brake fluid, from a clean, sealed brake fluid container.
- Install the lubricated seals, make sure they are fully seated.
- Install the reservoir to the master cylinder by pressing the reservoir straight down on the master cylinder until the pin holes are aligned.

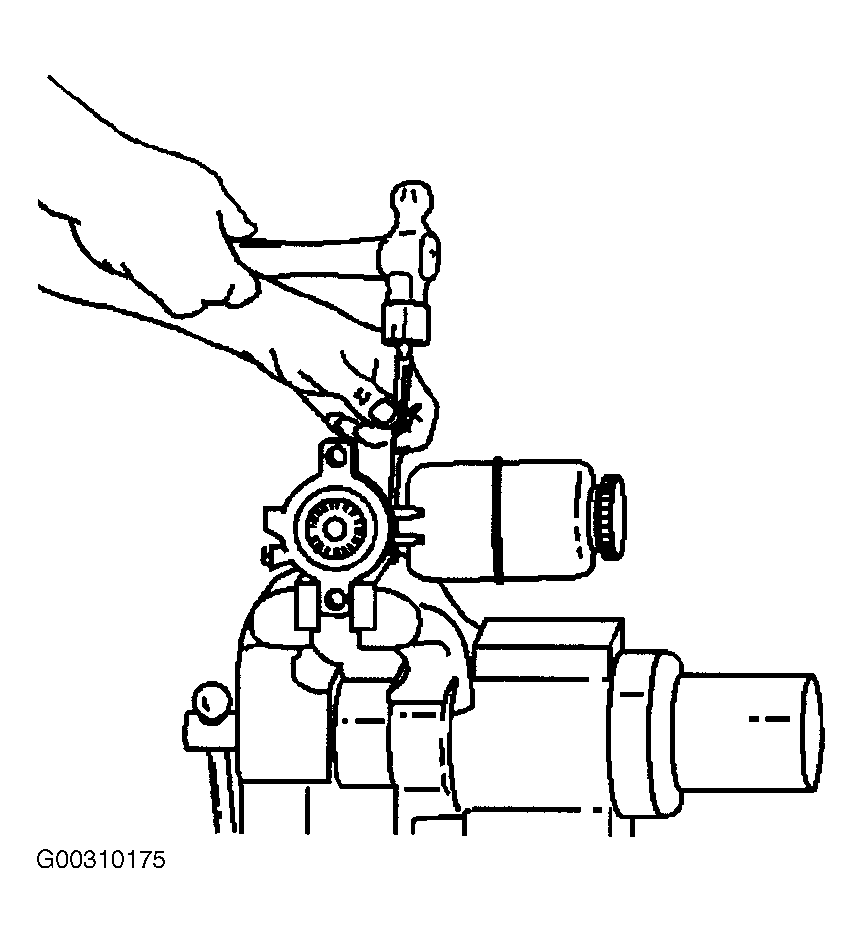

- Carefully install the reservoir retaining pins to secure the reservoir. See Figure.
- Place the brake fluid level sensor into the reservoir, press into place to secure the sensor retaining tabs.
- Remove the master cylinder from the vice.
- Install the master cylinder. See MASTER CYLINDER .
- Release the park brake.
- Bleed the hydraulic brake system. See BLEEDING BRAKE SYSTEM .
