Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right engine mount bracket (1) to the engine.
    CAUTION: Refer toFASTENER NOTICE .
  2. Install the four bolts securing the right engine mount bracket (1) to the engine.

    Tighten

    Tighten the right engine mount bracket bolts to 50 N.m (37 ft lbs).

  3. Install the nut (2) securing the power steering pressure hose to the right engine mount a bracket (1).

    Tighten

    Tighten the power steering pressure hose retaining nut to 9 N.m (80 in lbs).

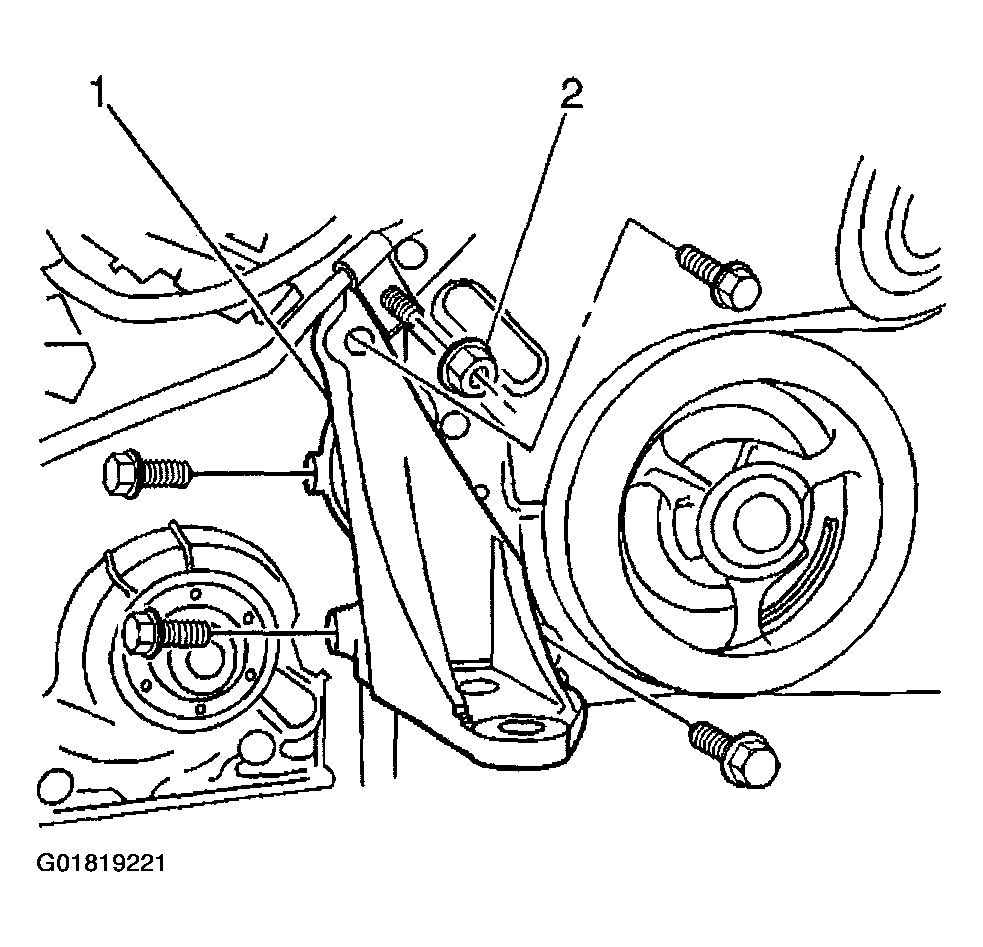

    4. Fig 1: Installing Right Engine Mount Bracket
    G01819221Courtesy of GENERAL MOTORS CORP.
  4. Raise the engine into position.
  5. Install the nut securing the right engine mount to the right engine mount bracket.

    Tighten

    Tighten the right engine mount nut to 80 N.m (59 ft lbs).

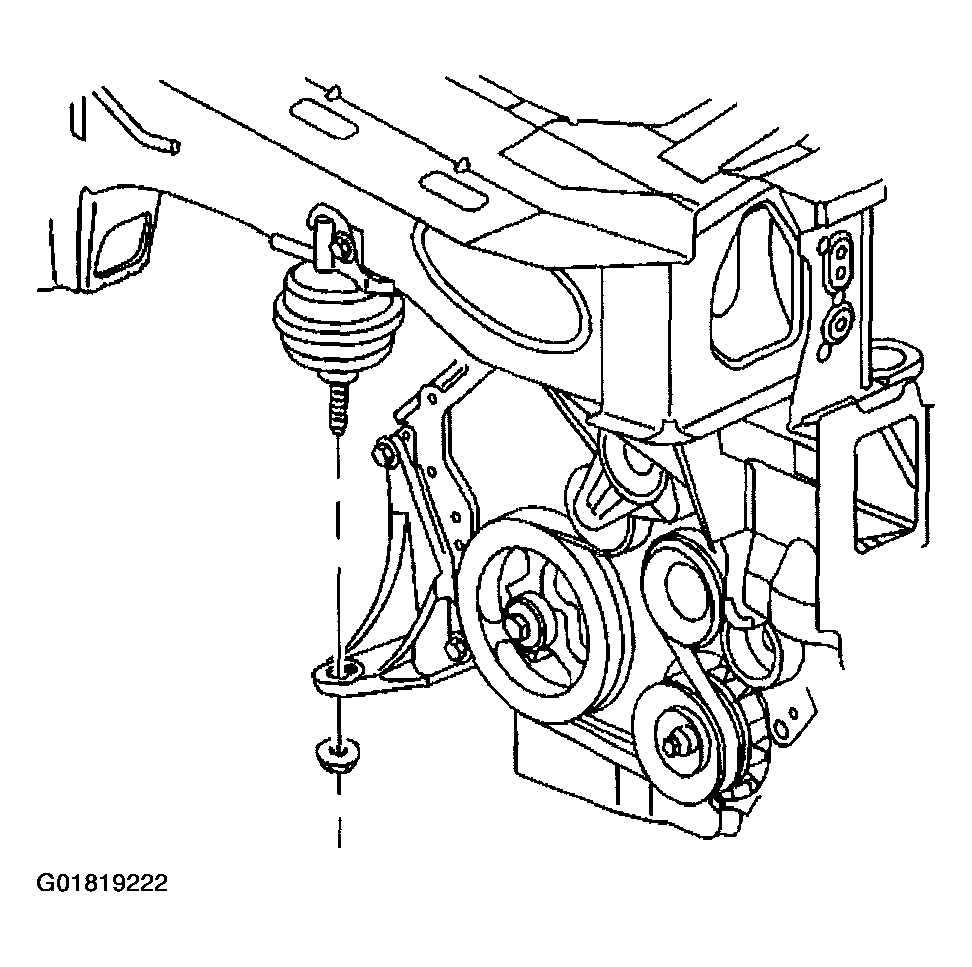

    6. Fig 2: Installing Engine Mount To Engine Mount Bracket Nut
    G01819222Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine support jack.
  7. Install the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.
