Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the belt around the power steering pulley (1). Twist the belt in order to clear the front cover bolts. Let the belt hang from the power steering pulley.

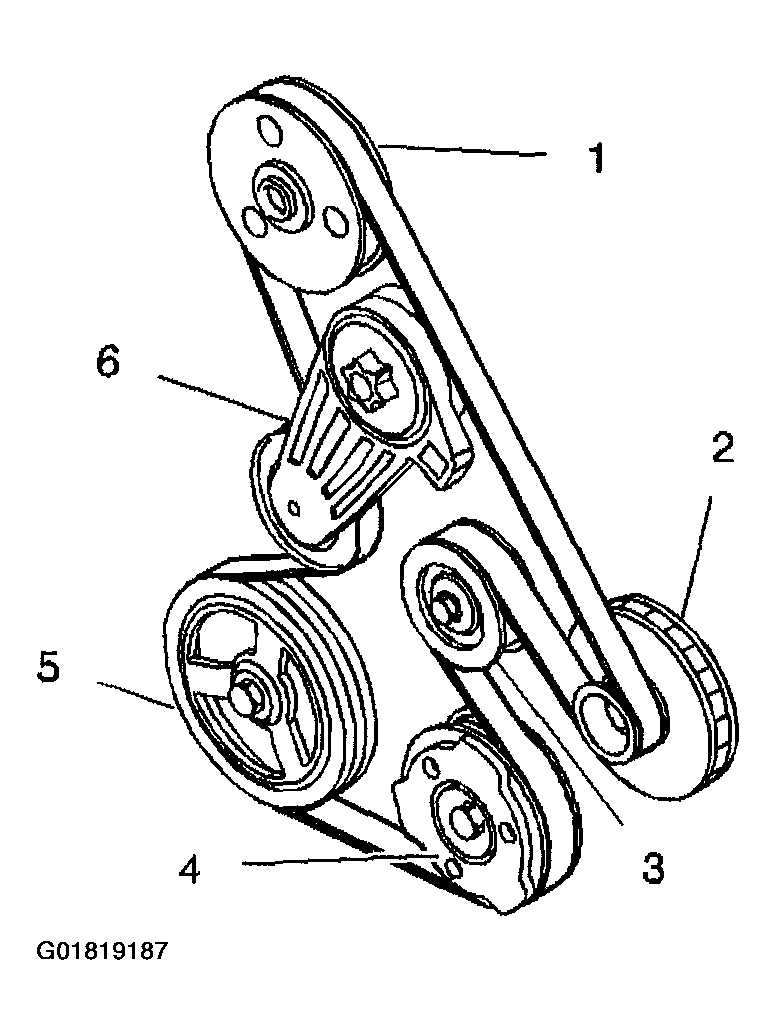

    Fig 1: Installing Belt Tensioner
    G01819187Courtesy of GENERAL MOTORS CORP.
  2. Twist the belt in order to clear the tensioner and front cover.
  3. Wrap the belt around the generator pulley (2).
  4. Remove the belt from the power steering pulley in order to give you slack in the belt.
  5. Raise the vehicle.
  6. Wrap the belt around the crankshaft (5) and compressor (4) pulleys.
  7. Install the right side splash shield.
  8. Lower the vehicle.
  9. Position the belt around the power steering pulley.
  10. Release the tensioner (6).
