Oil Consumption Diagnosis

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

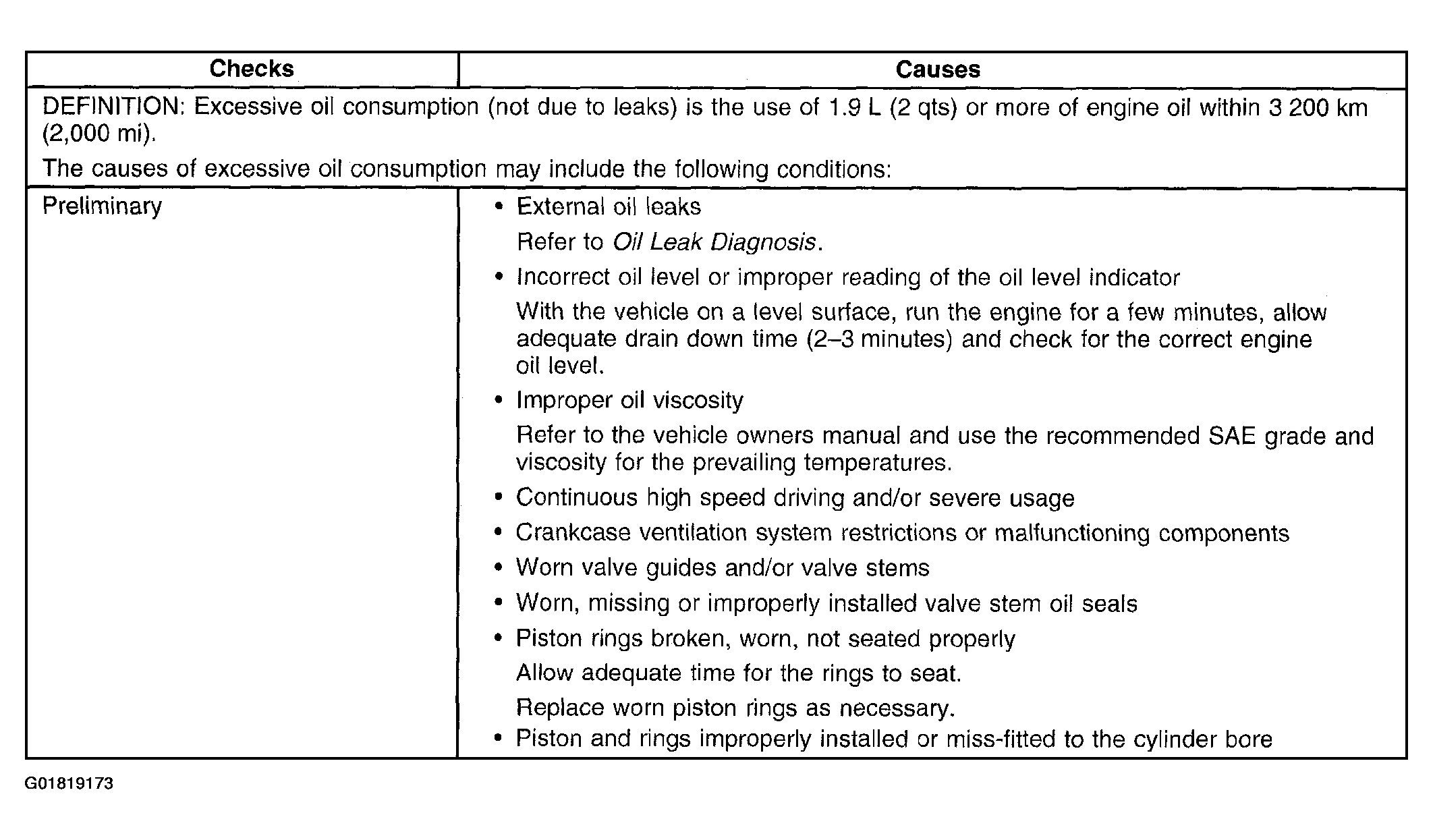

Fig 1: Oil Consumption Diagnosis
G01819173Courtesy of GENERAL MOTORS CORP.
